When choosing a high pressure die casting machine for industrial metal part production, prioritize tonnage capacity, clamping force accuracy, energy efficiency, and automation compatibility. The best model depends on your output volume, alloy type (e.g., aluminum, zinc), and precision requirements. For example, if you’re searching for how to choose a high pressure die casting machine that balances performance with operational cost, consider a cold chamber machine between 800–2,500 tons for medium-to-large aluminum components in automotive or aerospace applications.

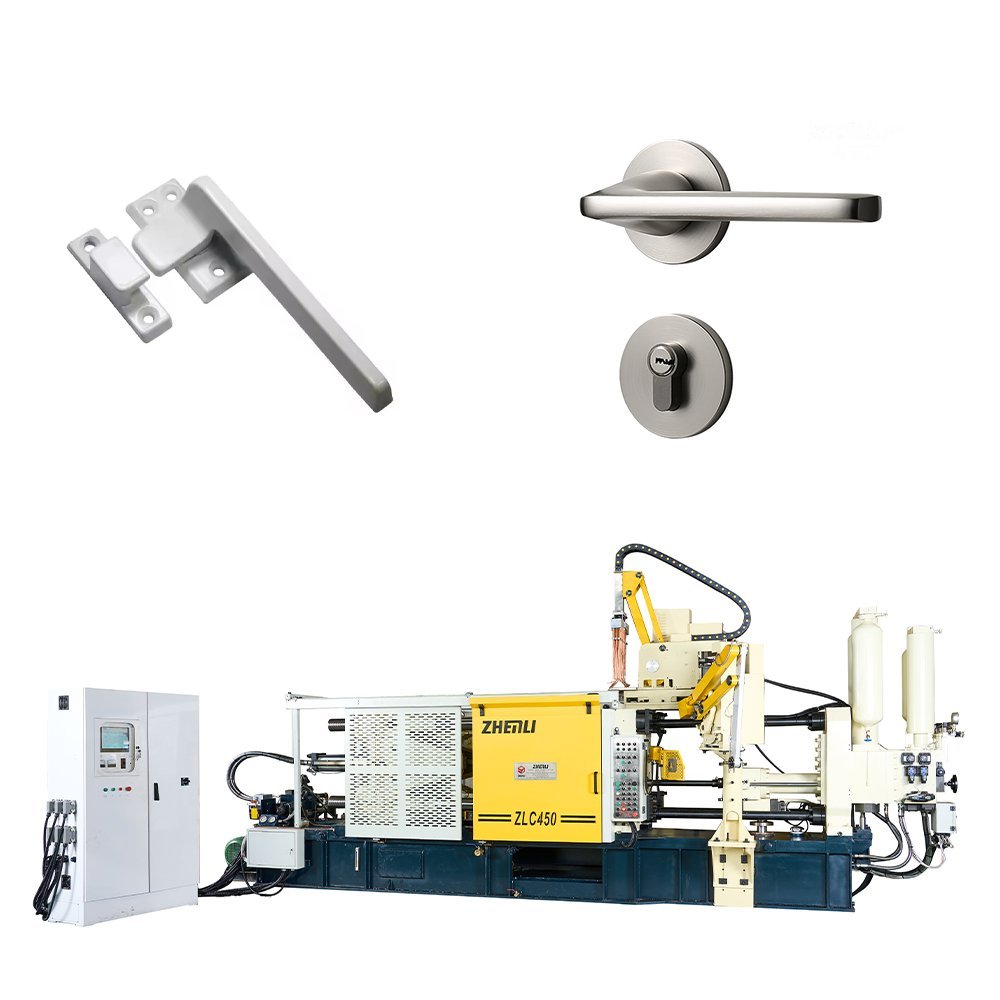

About High Pressure Die Casting Machines
High pressure die casting (HPDC) machines are specialized industrial systems used to produce metal parts by injecting molten metal—typically aluminum, magnesium, or zinc—into steel molds under high pressure. This process allows for rapid production of complex, dimensionally accurate components with excellent surface finish. These machines are widely used across industries such as automotive manufacturing, consumer electronics, aerospace, and power tools due to their ability to mass-produce consistent parts efficiently.
The core mechanism involves two main stages: first, the mold (or die) is securely closed using a powerful clamping unit; second, molten metal is forced into the cavity at pressures ranging from 10 to over 200 MPa. After solidification, the die opens, and the part is ejected. This cycle can repeat every few seconds, making HPDC ideal for high-volume production runs.
Why High Pressure Die Casting Machines Are Gaining Popularity
Manufacturers are increasingly investing in high pressure die casting machines due to growing demand for lightweight, durable metal components—especially in electric vehicles and portable electronics. According to industry reports, the global die casting market is projected to grow significantly through 2030, driven by advancements in material science and automation integration 1.
One major driver is the push toward vehicle weight reduction to improve fuel efficiency and battery range. Aluminum die-cast parts offer strength-to-weight ratios that traditional steel components cannot match. Additionally, modern HPDC machines now support Industry 4.0 connectivity, enabling real-time monitoring, predictive maintenance, and tighter quality control—factors that appeal to smart factories aiming for lean manufacturing.
Types and Variants of High Pressure Die Casting Machines
There are two primary types of high pressure die casting machines: hot chamber and cold chamber. Each has distinct advantages and limitations based on the metal being processed and production scale.
Hot Chamber Machines
- Best for: Low-melting-point alloys like zinc, tin, and lead
- How it works: The injection system is submerged in the molten metal pool, allowing fast cycling times (as low as 10–20 seconds)
- Advantages: Faster cycle times, better precision, lower energy consumption
- Disadvantages: Not suitable for reactive metals like aluminum or magnesium, which corrode the gooseneck and plunger
Cold Chamber Machines
- Best for: Aluminum, magnesium, and copper-based alloys
- How it works: Molten metal is manually or robotically poured into a shot sleeve before being injected into the die
- Advantages: Compatible with high-melting-point metals, greater flexibility in alloy selection
- Disadvantages: Slower cycle times compared to hot chamber, higher labor or automation requirements
Within these categories, machines vary by orientation—horizontal vs. vertical—and degree of automation. Horizontal cold chamber machines dominate industrial settings due to easier integration with robotic extraction and trimming systems.
Key Features and Specifications to Evaluate
Selecting the right high pressure die casting machine requires careful evaluation of several technical and operational parameters:
- Clamping Force (Tonnage): Measured in metric tons, this determines the size and complexity of parts you can produce. Small parts may require only 400–800 tons, while large structural components (e.g., engine blocks) need 2,500+ tons.
- Injection Speed and Pressure Control: Precision in controlling injection speed and pressure ensures consistent fill patterns and reduces defects like porosity or cold shuts.
- Degree of Automation: Modern machines often include integrated robots for part removal, trim press operation, and inspection. Look for compatibility with SCADA or MES systems if pursuing smart factory integration.
- Energy Efficiency: Hydraulic vs. hybrid (servo-hydraulic) vs. fully electric models impact long-term operating costs. Fully electric units offer superior repeatability and lower energy use but come at a premium price.
- Dry Cycle Time: Indicates how quickly the machine can open and close the die without casting. Shorter dry cycles increase throughput.
- Safety Systems: Emergency stops, light curtains, automatic lubrication, and mold protection sensors are essential for operator safety and equipment longevity.
Always verify manufacturer specifications directly, as advertised values may differ under real-world conditions.
Pros and Cons of High Pressure Die Casting Machines
Advantages
- High production rates with short cycle times
- Excellent dimensional accuracy and surface finish
- Ability to cast thin-walled and complex geometries
- Low post-processing requirements in many cases
- Cost-effective for large-volume production
Limitations
- High initial investment in machinery and tooling (dies can cost tens of thousands)
- Limited suitability for small batch or prototype work
- Potential for internal porosity, especially in thick sections
- Material constraints—some high-strength alloys are not easily castable via HPDC
- Maintenance demands increase with machine age and usage intensity
HPDC is most appropriate when producing thousands of identical parts annually. It’s less economical for prototyping or low-volume custom jobs.
How to Choose a High Pressure Die Casting Machine
Follow this step-by-step guide to make an informed decision:
- Define Your Production Requirements: Determine part size, material, annual volume, and required tolerances. This will inform necessary clamping force and machine type.
- Select the Right Machine Type: Use hot chamber for zinc; cold chamber for aluminum or magnesium.
- Evaluate Tonnage Needs: Larger parts or multi-cavity dies require higher clamping force. Consult engineering tables or software provided by manufacturers to estimate needed tonnage based on projected area and injection pressure.
- Assess Automation Compatibility: If integrating into an existing line, ensure the machine supports standard communication protocols (e.g., Modbus, Profibus, OPC UA).
- Review Energy Consumption: Compare kWh per cycle across models. Servo-driven pumps can reduce energy use by up to 40% compared to conventional hydraulic systems.
- Check Spare Parts Availability: Opt for brands with strong local support networks to minimize downtime.
- Request Demonstrations or Trial Runs: Whenever possible, observe the machine in action processing your specific alloy.
- Avoid Red Flags: Be cautious of unusually low prices, lack of CE or ISO certification, missing technical documentation, or sellers unwilling to provide references.
Price & Market Insights
Prices for high pressure die casting machines vary widely based on tonnage, brand, automation level, and region. As of 2024:
- Entry-level hot chamber machines (200–400 tons): $50,000–$100,000 USD
- Mid-range cold chamber machines (800–1,600 tons): $150,000–$400,000 USD
- High-end automated systems (2,000+ tons with robotics): $500,000–$1.5 million+ USD
European and Japanese manufacturers (e.g., Bühler, Toshiba, Ube) tend to command higher prices due to precision engineering and reliability. Chinese-made machines have improved significantly in quality and offer compelling value for budget-conscious buyers, though after-sales service may be limited outside Asia. Consider total cost of ownership—not just purchase price—factoring in energy, maintenance, and training.
Top-Seller & Competitive Analysis
Leading brands in the HPDC space include Bühler, Linotype-Hell (now Idra Group), Mitsubishi Heavy Industries, and Huizhou Jacton Industry Co. Each offers different strengths depending on application focus.
| Brand | Tonnage Range | Machine Type | Automation Ready | Approx. Price Range (USD) |
|---|---|---|---|---|
| Bühler | 450–6,400 tons | Cold Chamber | Yes (full integration) | $300K – $2M+ |
| Idra Group | 500–4,500 tons | Cold Chamber | Yes | $250K – $1.8M |
| Mitsubishi | 350–2,500 tons | Both | Yes | $200K – $900K |
| Jacton | 180–2,000 tons | Both | Optional | $80K – $600K |
Note: Always confirm current pricing and configuration options directly with suppliers, as availability and specs change frequently.
Customer Feedback Synthesis
Analysis of user reviews and industry forums reveals common themes among HPDC machine owners:
Positive Feedback:
– High reliability and uptime with European-built machines
– Fast return on investment in high-volume operations
– Improved consistency and reduced scrap rates after upgrading to servo-driven models
– Strong technical support from established brands
Common Complaints:
– Long lead times for spare parts, especially for imported machines
– Complexity of programming and setup for new operators
– Unexpected maintenance costs after warranty expires
– Inconsistent build quality in lower-cost Chinese models without proper vetting
Buyers emphasize the importance of operator training and preventive maintenance schedules to maximize lifespan and performance.
Sourcing & Supplier Tips
When sourcing a high pressure die casting machine, consider both direct manufacturers and authorized distributors. Purchasing through a regional distributor often provides better service response and language support.
- For Small Businesses: Explore refurbished or reconditioned machines from reputable dealers. Ensure full inspection and testing before shipment.
- For Large Operations: Negotiate turnkey solutions that include dies, robots, and training.
- Verify Compliance: Confirm the machine meets safety standards such as CE (Europe), UL (USA), or GB (China).
- Inspect Before Delivery: Conduct a factory acceptance test (FAT) to validate performance metrics.
- Shipping & Installation: Account for freight, rigging, foundation preparation, and electrical upgrades—these can add 10–20% to total project cost.
Maintenance, Safety & Legal Considerations
Regular maintenance is critical for HPDC machine longevity. Key tasks include checking hydraulic fluid levels, inspecting seals and hoses, cleaning shot sleeves, and calibrating sensors. Follow the manufacturer’s recommended service intervals strictly.
Safety protocols must address extreme temperatures, high-pressure systems, and moving parts. Required safeguards include emergency stop buttons, guarding around moving components, thermal protection, and proper ventilation to manage fumes.
Legally, ensure compliance with occupational health and safety regulations such as OSHA (U.S.) or equivalent bodies elsewhere. Environmental regulations may also apply regarding coolant disposal, noise levels, and emissions from melting furnaces.
Conclusion
Choosing the right high pressure die casting machine requires aligning technical capabilities with production goals. Prioritize clamping force, alloy compatibility, automation readiness, and total cost of ownership. Cold chamber machines are optimal for aluminum and magnesium parts, while hot chamber models excel in zinc die casting. Leading brands offer superior durability and support, though mid-tier options from reliable Chinese manufacturers can deliver solid value. By evaluating your volume needs, quality expectations, and facility infrastructure, you can select a system that enhances productivity and delivers long-term ROI. Remember to assess not just the machine, but also supplier reputation, training resources, and maintenance accessibility.
FAQs
What is the difference between hot chamber and cold chamber die casting machines?
Hot chamber machines feed molten metal directly from an attached furnace, enabling faster cycles but only working with low-melting-point metals like zinc. Cold chamber machines require manual or robotic pouring of molten metal and are used for aluminum and magnesium alloys.
How much does a typical high pressure die casting machine cost?
Prices range from $50,000 for small hot chamber units to over $1 million for large, automated cold chamber systems. Mid-range industrial machines typically cost between $150,000 and $400,000.
Can I use one machine for multiple alloys?
Generally, no. Switching between alloys—especially from zinc to aluminum—requires significant reconfiguration and risks contamination. Dedicated machines per alloy type are recommended for quality and efficiency.
What maintenance is required for HPDC machines?
Routine checks include lubrication, hydraulic system inspections, die alignment verification, shot end component replacement, and sensor calibration. Preventive maintenance schedules help avoid unplanned downtime.
Are there energy-efficient alternatives to traditional hydraulic HPDC machines?
Yes. Servo-hybrid and fully electric HPDC machines offer improved energy efficiency, better control precision, and lower noise levels, though they come at a higher initial cost.
