When choosing the best mini 5 axis CNC machine for your workshop or prototyping needs, prioritize rigidity, precision, and software compatibility—especially if you’re working with complex geometries in materials like aluminum, plastics, or wax. A high-quality desktop-sized 5-axis CNC system allows simultaneous multi-directional cutting, making it ideal for detailed molds, dental prosthetics, or intricate engineering parts 1. For most small-scale professional and advanced hobbyist applications, opt for models with linear guides, closed-loop stepper or servo motors, and proven CAM integration such as UCCNC or Mach4 support. Avoid overly compact units with plastic frames or undocumented firmware, as they often lack long-term stability and accuracy.
About Mini 5 Axis CNC Machines

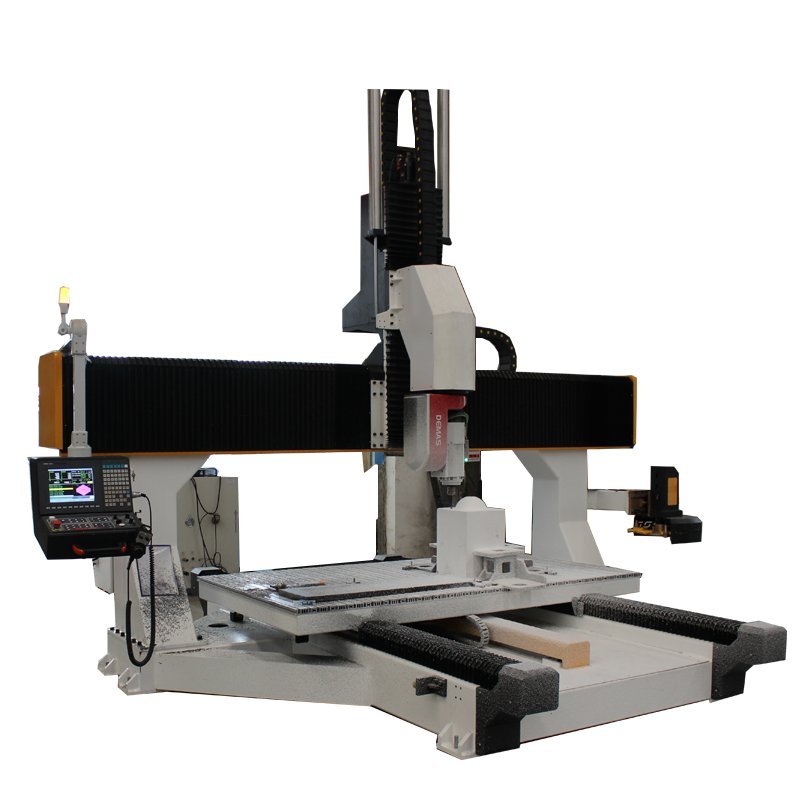

A mini 5 axis CNC (Computer Numerical Control) machine is a compact, computer-driven milling system capable of moving a cutting tool along five axes simultaneously—X, Y, Z, plus two rotational axes (typically A and B). This enables the tool to approach the workpiece from nearly any angle without requiring manual repositioning, significantly increasing machining flexibility and surface finish quality.
Unlike standard 3-axis machines that only move linearly, 5-axis systems can produce highly complex 3D shapes such as turbine blades, ergonomic medical devices, aerospace components, and artistic sculptures. The “mini” designation refers to their smaller footprint and work envelope—usually accommodating materials up to 300 x 300 x 150 mm—making them suitable for home workshops, educational labs, dental studios, and small manufacturing setups.
These machines are commonly used in rapid prototyping, mold making, jewelry design, dental restoration fabrication, and low-volume production runs where precision outweighs throughput requirements.
Why Mini 5 Axis CNC Machines Are Gaining Popularity
The rising accessibility of affordable 5-axis technology has democratized advanced machining. Once limited to industrial settings due to cost and complexity, modern mini 5 axis CNC systems now offer powerful capabilities at lower price points thanks to advancements in controller electronics, open-source CAM software, and modular mechanical designs.
One major driver is the growing demand for customized, high-precision parts across industries like dentistry, orthopedics, and boutique product development. Additionally, makers, engineers, and designers increasingly seek tools that reduce setup time and post-processing effort—something 5-axis machining excels at by minimizing the need for multiple fixturing operations.
Another factor is improved user-friendliness. Many newer models come with intuitive interfaces, pre-calibrated kinematics, and compatibility with widely used CAD/CAM platforms such as Fusion 360, Vectric, or ArtCAM, lowering the learning curve for non-experts 2.
Types and Variants of Mini 5 Axis CNC Machines
Mini 5 axis CNC machines come in several configurations, each suited to different use cases and performance expectations.
1. Trunnion Table (Rotary + Tilt Table)
In this design, the workpiece rotates on a dual-axis table while the spindle moves along X, Y, and Z. It’s common in compact systems because it simplifies spindle mechanics.
- Pros: Simpler spindle head; better chip clearance; good for medium-complexity parts.
- Cons: Limited payload capacity; potential vibration at high speeds; requires precise table calibration.
2. Head Rotary (Swivel Head + Rotary Table)
Here, the spindle itself tilts or swivels (A/B axes), while the table may rotate. Offers greater reach and dynamic movement.
- Pros: Higher flexibility; excellent for deep cavities and undercuts; superior surface finishes.
- Cons: More complex mechanics; higher maintenance; typically more expensive.
3. Hybrid Kinematic Systems (e.g., SCARA-inspired or Delta-style)
Less common but emerging in niche desktop models, these use parallel linkages for faster motion and lighter weight.
- Pros: Fast positioning; reduced inertia; compact form factor.
- Cons: Limited rigidity; narrow material compatibility; not ideal for hard metals.
4. Kit vs. Fully Assembled Units
Kits require self-assembly and tuning but are cheaper and customizable. Pre-built units save time and ensure factory-level alignment but cost more.
Key Features and Specifications to Evaluate
Choosing the right model means understanding which technical aspects impact real-world performance.
Work Envelope and Travel Range
Measure the maximum dimensions of material you’ll process. Most mini 5-axis machines range from 150 mm to 300 mm in X/Y and up to 150 mm in Z. Ensure there’s enough clearance for tool length and part height.
Spindle Power and Speed
Look for spindles rated between 500W–1500W with variable speed control (10,000–24,000 RPM). Higher power supports harder materials like aluminum or brass, while lower-power spindles (under 500W) are better suited for wood, foam, or soft plastics.
Motion System: Stepper vs. Servo Motors
Stepper motors are cost-effective and sufficient for light-duty tasks, but servos provide better torque feedback, acceleration, and positional accuracy—critical for consistent 5-axis coordination.
Frame Rigidity and Build Quality
Aluminum extrusions or cast alloy frames resist deflection better than acrylic or 3D-printed parts. Look for fully welded or bolt-together metal structures rather than snap-fit panels.
Control System and Software Compatibility
Ensure compatibility with mainstream controllers like GRBL, LinuxCNC, or proprietary DSP boards. Verify support for CAM outputs (G-code) from Fusion 360, Mastercam, or similar. Some machines require specific post-processors—check availability before purchase.
Cooling and Dust Management
Integrated coolant delivery or misting systems extend tool life when cutting metals. Dust extraction ports help maintain visibility and protect electronics during prolonged operation.
Pros and Cons of Mini 5 Axis CNC Machines
Advantages
- Reduced Setup Time: Complex parts can be machined in one setup, improving repeatability.
- Superior Surface Finish: Optimal tool orientation reduces scalloping and improves finish quality.
- Greater Design Freedom: Enables geometries impossible with 3-axis alone.
- Higher Material Efficiency: Less waste due to fewer fixtures and optimized paths.
Limitations
- Higher Learning Curve: Requires knowledge of 5-axis toolpath strategies and collision checking.
- Premium Cost: Even mini versions are more expensive than 3-axis counterparts.
- Maintenance Demands: Additional moving parts increase wear and calibration needs.
- Software Expense: Full-featured 5-axis CAM software can be costly (though some entry-level options exist).
How to Choose a Mini 5 Axis CNC Machine: Step-by-Step Guide
- Define Your Use Case: Are you milling wax for dental crowns, shaping carbon fiber prototypes, or carving artistic reliefs? Match machine capability to material and complexity.
- Assess Required Precision: Check stated repeatability (ideally ≤ ±0.01 mm) and look for backlash compensation features.
- Evaluate Controller Ecosystem: Prefer machines supported by active communities and documented APIs. Open-source firmware (like GRBL or Smoothieware) adds long-term flexibility.
- Review Real-World User Feedback: Search forums like CNCZone, Reddit’s r/CNC, or manufacturer review sites for recurring issues (e.g., wobble, overheating).
- Check Spare Parts Availability: Confirm replacement bearings, belts, and motor drivers are accessible and reasonably priced.
- Test Software Workflow: Before buying, simulate a full job—from CAD modeling to G-code generation—to ensure compatibility.
- Avoid Red Flags: Be cautious of vendors who don’t publish detailed specs, lack customer service channels, or make exaggerated claims (e.g., “mills titanium like butter” on sub-$3,000 machines).
Price & Market Insights
Mini 5 axis CNC machines vary widely in price based on build quality, automation level, and brand reputation.
- Budget Tier ($1,500–$3,000): Typically kits or lightweight units with stepper motors and basic controllers. Suitable for plastics, wood, and soft composites.
- Mid-Range ($3,000–$7,000): Fully assembled systems with servo drives, rigid frames, and enhanced software support. Ideal for small businesses and professionals.
- Premium Tier ($7,000+): Industrial-grade miniaturized systems with thermal compensation, automatic tool changers, and ISO-certified accuracy. Used in medical and aerospace prototyping.
Value isn’t always in lowest cost—consider total ownership expenses including tooling, software licenses, training, and downtime.
| Model | Max Work Area (mm) | Spindle Power | Motor Type | Approx. Price |
|---|---|---|---|---|
| OpenBuilds PRO Series 5AX | 300 x 300 x 100 | 800W | Stepper | $2,800 |
| LEADSHINE MMA200 | 200 x 200 x 150 | 1000W | Servo | $5,200 |
| DTT 5-Axis Desktop Mill | 250 x 250 x 120 | 1500W | Servo | $6,800 |
Top-Seller & Competitive Analysis
Leading models balance reliability, documentation, and ecosystem support. The OpenBuilds PRO 5AX appeals to DIY enthusiasts due to modularity and community tutorials. The LEADSHINE MMA200 stands out for its integrated servo control and robust frame, favored by dental labs. DTT’s desktop mill targets professional users needing near-industrial precision in a benchtop format.
When comparing top sellers, examine warranty terms (preferably 1–2 years), included software bundles, and whether technical drawings are publicly available for modifications.
Customer Feedback Synthesis
Analysis of verified buyer reviews and forum discussions reveals consistent themes:
- Positive Notes: Users praise reduced hand-finishing time, ability to create organic shapes, and smooth integration with Fusion 360. Machines with linear rails and pre-tensioned ballscrews receive high marks for durability.
- Common Complaints: Poor assembly instructions, inconsistent rotary axis backlash, noisy operation, and inadequate customer support top the list. Some buyers report difficulty achieving true 5-axis synchronization without expert tuning.
Sourcing & Supplier Tips
Purchase from authorized dealers or manufacturers with transparent contact information. For international buyers, confirm voltage compatibility (110V vs. 220V) and customs classification codes (HS Code 8459.11 for CNC mills).
If sourcing in bulk or considering resale, request sample units first. Inspect cable strain relief, limit switch placement, and emergency stop functionality upon arrival. Always verify return policies and shipping insurance coverage.
Maintenance, Safety & Legal Considerations
Regular maintenance includes lubricating linear rails, checking belt tension, and cleaning debris from rotary encoders. Use protective covers to shield sensitive electronics from coolant spray.
Safety practices: Always use machine enclosures, wear eye protection, and ensure emergency stops are functional. Secure workpieces properly to prevent ejection during high-speed rotation.
Legally, ensure compliance with local machinery safety standards (e.g., CE marking in Europe, OSHA guidelines in the U.S.). If operating commercially, document risk assessments and staff training records.
Conclusion
Selecting the right mini 5 axis CNC machine hinges on matching technical capabilities to your workflow demands. Prioritize structural rigidity, accurate motion control, and proven software interoperability. While entry-level models serve well for education and soft-material work, investing in servo-driven, fully assembled systems pays off in precision and longevity for professional applications. By evaluating specifications critically and consulting real user experiences, you can confidently choose a system that expands your creative and manufacturing potential.
FAQs
Q: Can a mini 5 axis CNC machine cut metal?
A: Yes, but only certain alloys—such as aluminum, brass, or mild steel—with appropriate spindle power, rigidity, and tooling. Avoid hardened steels unless using industrial-grade equipment.
Q: What CAM software works best with mini 5 axis CNC systems?
A: Fusion 360, Mastercam, and HyperMill offer strong 5-axis support. Free alternatives include HeeksCAD/CAM, though with steeper learning curves.
Q: How often do rotary axes need calibration?
A: Every 3–6 months under regular use, or after any physical shock. Use dial indicators or laser alignment tools for accuracy.
Q: Is it safe to run a mini 5 axis CNC unattended?
A: Not recommended without proper enclosure, fire suppression, and monitoring systems. Always supervise initial test runs.
Q: What’s the average lifespan of a mini 5 axis CNC machine?
A: With proper care, 5–10 years. Bearings, belts, and motors may require replacement over time depending on usage intensity.
