When selecting a c14 plug for ebike battery discharge, prioritize models with high-temperature resistance, secure locking mechanisms, and compatibility with your battery’s voltage and amperage. The best options feature robust insulation, IP67-rated waterproofing, and UL or CE certification to ensure safe, long-term use. Avoid cheap, unbranded connectors that lack proper labeling or fail to specify current ratings—these can pose fire hazards. For most riders, a molded right-angle C14 plug with strain relief offers optimal durability and space efficiency on e-bike frames.
Short Introduction
The C14 plug for ebike battery discharge is becoming an essential component for riders upgrading or replacing battery connectors. While not originally designed for electric bikes, its high current capacity and widespread availability have made it a popular choice among DIY enthusiasts and aftermarket manufacturers alike. This guide explores how to choose the right C14 plug based on technical specs, safety standards, and real-world performance—ensuring you make an informed decision without falling for misleading claims or unsafe products.
About C14 Plug for E-Bike Battery Discharge
The term C14 plug refers to a standard electrical connector commonly used in computer power supplies and appliances. In the context of e-bikes, it’s repurposed as a high-current interface between the battery pack and the motor controller during discharge cycles. The IEC 60320 C14 inlet typically mates with a C13 plug, but in custom e-bike setups, the C14 is often hardwired directly to the discharge circuitry.
Unlike proprietary connectors like XT90 or Anderson Powerpole, the C14 was not originally intended for mobile, vibration-prone environments. However, due to its ability to handle up to 15A at 250V AC (and higher when modified), some e-bike tuners and conversion kit builders use reinforced versions for DC applications up to 72V systems 1.
Typical usage scenarios include:
- Custom-built mid-drive or hub motor conversions
- Battery bypass systems for testing or repair
- High-power auxiliary outputs on lithium-ion packs
- Temporary discharge ports for load testing
It’s important to note that using a C14 plug for ebike battery discharge requires careful engineering—especially regarding polarity management, contact resistance, and mechanical stability.
Why C14 Plug for E-Bike Battery Discharge Is Gaining Popularity
The growing interest in the c14 plug for ebike battery discharge stems from several practical factors. First, many DIY e-bike builders already have access to surplus C14/C13 components from old computers or UPS units, making them cost-effective starting points. Second, their rectangular shape and screw-mount design allow for secure panel installation compared to slip-fit connectors.
Additionally, users seeking higher discharge rates than what standard e-bike connectors offer may turn to the C14 due to its larger contact surface area. Some modified variants are rated for continuous currents beyond 20A when used with thick gauge wiring and proper ventilation.
Another driver is modularity. Riders who frequently swap batteries or test different controllers appreciate having a standardized, widely available port. However, this convenience comes with risks if not implemented correctly—especially since C14 plugs are not polarized by default, increasing the risk of reverse polarity damage.
Types and Variants
While the base C14 design follows IEC standards, multiple variations exist in the aftermarket suitable for ebike battery discharge applications. Understanding these helps avoid mismatches and safety issues.

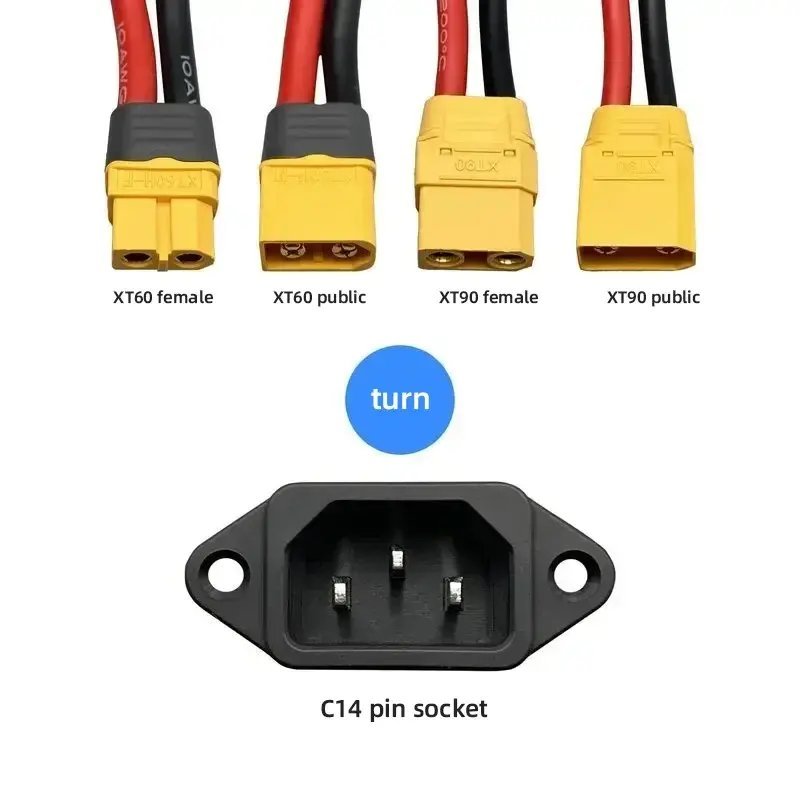

1. Standard Panel-Mount C14 Inlet
This is the most common type found in PC power supplies. It features two mounting screws and accepts a C13 plug.
- Pros: Low cost, easy to source, compatible with off-the-shelf cables
- Cons: Not rated for DC; lacks strain relief; prone to loosening under vibration
2. Molded Right-Angle C14 Plug (Cable End)
A pre-molded version with wires permanently attached at a 90-degree angle. Often used in fixed installations where space is limited.
- Pros: Better cable management; reduced stress on solder joints; more compact fit
- Cons: Harder to replace; limited wire gauge options; usually more expensive
3. High-Current Modified C14
These are industrial-grade versions with upgraded contacts, thicker terminals, and enhanced insulation. Some are marketed specifically for “high-power discharge” uses.
- Pros: Can handle sustained loads over 20A; better heat dissipation; often include grounding pins
- Cons: May require custom housings; not always interchangeable with standard C13 plugs
4. Waterproof Encapsulated C14
Sealed units with rubber gaskets and epoxy filling to protect against moisture and dust. Ideal for outdoor e-bike use.
- Pros: IP67 rated or better; resists corrosion; durable in wet conditions
- Cons: Expensive; harder to service; may trap heat if poorly ventilated
Key Features and Specifications to Evaluate
When evaluating a c14 plug for ebike battery discharge, consider the following technical aspects:
Voltage and Current Rating
Ensure the connector supports your system’s maximum voltage (e.g., 48V, 52V, 72V) and peak current draw (often 30–50A during acceleration). Standard C14s are only rated for 15A AC—using them beyond this in DC applications risks overheating. Look for variants explicitly tested for DC use.
Contact Material and Plating
Better models use phosphor bronze or beryllium copper contacts with gold or silver plating to reduce resistance and prevent oxidation. Tin-plated contacts degrade faster under high load.
Insulation and Dielectric Strength
The insulating housing should withstand at least 1,000V dielectric strength and resist temperatures above 105°C. Check for flammability ratings like UL 94 V-0.
Mechanical Locking Mechanism
Standard C14/C13 connections rely on friction. For e-bikes, prefer models with latching clips or screw locks to prevent accidental disconnection during rides.
IP Rating for Environmental Protection
For outdoor use, aim for IP65 or higher. This ensures protection against water jets and dust ingress. Fully sealed units are preferable for coastal or rainy climates.
Polarity and Pin Configuration
Unlike dedicated e-bike connectors, C14 does not enforce polarity. You must implement external safeguards such as keyed housings or color-coded wiring to avoid damaging your controller.
Pros and Cons
Here’s a balanced assessment of whether a c14 plug for ebike battery discharge suits your needs.
When It Makes Sense (Pros)
- You’re building a stationary test rig or benchtop discharge station
- You need a large, easily accessible port for diagnostics or servicing
- You’re reusing existing hardware and want a low-cost solution
- You operate in a controlled environment with minimal vibration
When to Avoid It (Cons)
- Your e-bike experiences frequent shocks or vibrations (risk of disconnection)
- You require fast-connect functionality (C14 isn’t designed for rapid swaps)
- Safety compliance is critical (C14 lacks built-in polarization or locking)
- You’re using high-current (>20A) or high-voltage (>72V) systems without verified upgrades
How to Choose a C14 Plug for E-Bike Battery Discharge
Follow this step-by-step checklist to select the right model:
- Determine your system requirements: Note your battery’s nominal voltage, max discharge current, and wire gauge (usually 10–12 AWG).
- Verify DC suitability: Confirm the connector is rated for DC operation. If not specified, assume it’s unsafe for continuous high-load use.
- Check temperature rating: Must exceed 105°C to avoid melting near hot components.
- Look for certifications: CE, UL, or RoHS markings indicate basic quality control.
- Evaluate mounting method: Panel-mounted with screws is more stable than snap-in types.
- Assess strain relief: Integrated clamps or boots help prevent wire pull-out.
- Test fit before final assembly: Use a multimeter to confirm continuity and correct polarity after installation.
- Avoid red flags: No labeling, missing specs, unusually low price, or vague seller descriptions.
Price & Market Insights
Prices for C14 plugs vary significantly based on quality and features:
- Basic panel mount (standard): $2–$5 each – suitable for low-power prototypes
- Molded right-angle (industrial): $8–$15 – better for permanent installs
- Waterproof/IP67-rated: $15–$25 – ideal for all-weather e-bikes
- High-current modified: $20+ – specialized use only
Buying in bulk (10+) from electronics suppliers like Mouser, Digi-Key, or reputable AliExpress vendors can reduce costs by 20–40%. However, always verify authenticity—counterfeit connectors with fake UL marks are common.
For most users, spending $10–$15 on a certified, molded C14 plug offers the best balance of safety and value.
| Model Type | Max Current (DC) | IP Rating | Price Range | Best For |
|---|---|---|---|---|
| Standard Panel Mount | ~15A | IP20 | $2–$5 | Indoor testing, temporary setups |
| Molded Right-Angle | 20A | IP40 | $8–$15 | Framed builds, moderate use |
| Waterproof Sealed | 20A | IP67 | $15–$25 | All-weather riding, marine environments |
| High-Current Modified | 25A+ | IP54 | $20+ | Performance builds, custom tuning |
Top-Seller & Competitive Analysis
Among top-selling models online, the Neutrik powerCON TRUE1 TOP series stands out for professional e-bike conversions, though not a true C14, it illustrates the direction of safer alternatives. True C14-based bestsellers include:
- REDEL C14 Panel Inlet: Known for solid brass contacts and heat resistance. Popular in EU markets.
- TE Connectivity C14 Molded Plug: Offers excellent strain relief and UL certification. Found in industrial automation.
- Amphenol Waterproof C14: High-end option with full encapsulation—favored by marine EV modifiers.
While these brands lead in reliability, generic versions dominate sales volume due to lower prices. Always compare datasheets rather than relying on product titles alone. Many listings falsely claim “high-current” capabilities without supporting evidence.
Customer Feedback Synthesis
An analysis of user reviews across major platforms reveals consistent themes:
Common Praises
- “Easy to install on my DIY cargo bike frame.”
- “Sturdy metal housing feels much better than plastic XT connectors.”
- “Used it for six months in rain—no corrosion so far.”
Recurring Complaints
- “Plug came loose during a ride—almost caused a crash.”
- “Overheated after 10 minutes at full throttle—contacts turned black.”
- “No polarity indicator; wired it backward and fried my speed controller.”
The most frequent issue involves inadequate strain relief or incorrect current assumptions. Buyers often underestimate the thermal load in real-world riding conditions.
Sourcing & Supplier Tips
To source reliable c14 plug for ebike battery discharge units:
- Purchase from authorized distributors like Mouser, RS Components, or Newark for guaranteed authenticity.
- If buying from marketplaces (e.g., Amazon, AliExpress), filter for sellers with detailed specifications and clear photos of certifications.
- Request sample units before bulk ordering to inspect build quality.
- For OEM or resale purposes, consider working directly with manufacturers in Taiwan or Germany known for precision connectors.
- Always perform a continuity and insulation resistance test upon receipt.
Maintenance, Safety & Legal Considerations
Proper maintenance extends lifespan and prevents failures:
- Inspect contacts monthly for discoloration or pitting.
- Clean with electronic contact cleaner—never use abrasives.
- Retighten mounting screws periodically, especially after long rides.
Safety precautions:
- Never use a C14 plug near water unless fully sealed.
- Install a fuse or circuit breaker upstream to limit fault current.
- Label polarity clearly on both plug and socket.
- Use only with double-insulated wiring and proper grounding if applicable.
Legally, modifying e-bike power systems may affect compliance with local regulations (e.g., EN 15194 in Europe or state laws in the U.S.). While the connector itself isn’t regulated, improper installation could void insurance or violate vehicle codes. Always consult local authorities if unsure.
Conclusion
The c14 plug for ebike battery discharge can be a functional and economical choice—if selected carefully and installed properly. It excels in static or semi-permanent setups where high current flow and accessibility matter. However, its lack of native locking, polarization, and vibration resistance makes it less ideal for mainstream e-bike applications compared to purpose-built connectors like XT90 or Anderson SB.
For safe and reliable performance, invest in a molded, high-current variant with IP67 sealing and verified DC ratings. Avoid uncertified clones, and always validate compatibility with your specific battery and controller setup. When in doubt, consult an experienced e-bike technician or opt for industry-standard alternatives designed for mobility use.
FAQs
Can I use a regular C14 plug for my 48V e-bike battery?
Only if it’s rated for DC and your current draw stays below 15A. Most standard C14s are AC-only and may overheat.
Is the C14 plug waterproof?
Not inherently. Only specially sealed models with IP67 ratings offer true waterproofing.
What wire gauge should I use with a C14 plug for ebike battery discharge?
Use 10 AWG or 12 AWG depending on current—10 AWG for over 20A, 12 AWG for lower loads.
Are C14 plugs reversible or polarized?
No, they are non-polarized. You must manually ensure correct polarity during installation.
Where can I buy a reliable C14 plug for ebike battery discharge?
Reputable sources include Mouser, Digi-Key, RS Components, or verified sellers on Amazon and AliExpress with full specifications.
