When searching for a reliable transmission solution for light-duty commercial or off-road applications, many mechanics and fleet operators are turning to the Toyota H150F gearbox. This durable manual transmission is commonly found in Toyota Hilux (LN106, LN130), 4Runner (N120), and other 4×4 models from the late 1980s through the mid-1990s. If you’re asking how to choose a Toyota H150F gearbox, the answer lies in verifying its compatibility with your drivetrain, assessing gear ratios for your intended use (on-road vs. off-road), inspecting for wear signs like synchro degradation or bearing noise, and confirming input/output shaft dimensions. For most buyers seeking a rugged, repairable 5-speed manual gearbox with proven aftermarket support, the H150F remains a top-tier choice—especially when sourced from low-mileage donor vehicles or reputable rebuilders.

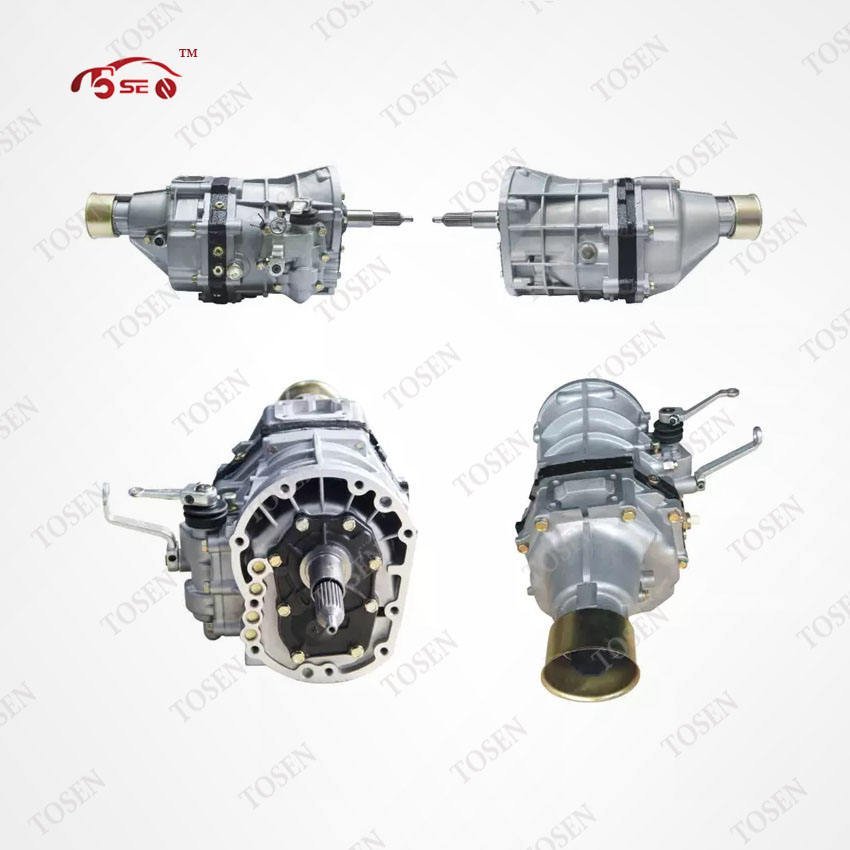

About Toyota H150F Gearbox
The Toyota H150F is a robust 5-speed manual transmission designed primarily for rear-wheel or part-time four-wheel drive configurations. Introduced in the mid-1980s, it was engineered to handle the torque output of Toyota’s 3.0L diesel (1KZ-TE) and 2.4L petrol (22R-E) engines, making it ideal for medium-duty trucks and SUVs operating under demanding conditions. Unlike automatic transmissions, the H150F uses a cable-operated clutch system and features a compact aluminum housing that reduces overall vehicle weight while maintaining structural integrity.
This gearbox is often praised for its mechanical simplicity and ease of maintenance. It supports both high-range and low-range transfer cases, allowing seamless integration into 4×4 systems. The ‘F’ in H150F denotes a flange-type output shaft, which differentiates it from earlier slip-yoke variants. Its widespread use across global markets—particularly in Australia, Africa, the Middle East, and Southeast Asia—has contributed to a large availability of OEM and aftermarket parts.
Why Toyota H150F Gearbox Is Gaining Popularity
In recent years, there’s been a resurgence in demand for the Toyota H150F gearbox, driven by several key factors. First, the enduring popularity of classic Toyota trucks has created a thriving restoration and modification community. Enthusiasts rebuilding older Hilux or 4Runner models frequently seek original-spec or upgraded H150F units to maintain authenticity while improving drivability.
Second, the H150F’s reputation for durability makes it a preferred upgrade over weaker transmissions like the W56 or R151F, especially when engine modifications increase torque output. Off-road builders appreciate its ability to withstand rock crawling stresses and frequent shifting under load. Additionally, because the H150F shares design elements with the heavier H151E and G52 models, experienced mechanics can apply familiar servicing techniques, reducing downtime and repair costs.
Another reason for its rising interest is the growing second-hand export market. Japan and New Zealand are major sources of dismantled H150F gearboxes, often shipped globally with verified mileage and condition reports 1. As more DIY mechanics turn to online marketplaces and salvage yards, access to clean, functional units has improved significantly.
Types and Variants
While all H150F gearboxes share a common architecture, several variations exist based on model year, engine pairing, and regional specifications:
- H150F Standard Duty: Found behind 22R-E and 3Y engines. Lighter internal components; suitable for paved roads and mild off-roading. Pros: Lightweight, widely available. Cons: Less suited for high-torque builds.
- H150F Heavy-Duty (HD): Paired with 1KZ-TE turbodiesel engines. Features reinforced countershafts and stronger synchronizers. Pros: Handles up to 300 Nm reliably. Cons: Slightly heavier; may require crossmember adjustment during swap.
- H150F with Electric Speed Sensor: Later models (early 1990s) include an electronic speedometer output instead of mechanical drive. Important for compatibility if retaining factory instrumentation. Pros: Integrates with modern dash clusters. Cons: Requires wiring adaptation in older vehicles.
- Rebuilt/Reconditioned Units: Offered by specialty shops, these come with new bearings, seals, and synchros. Pros: Predictable lifespan, warranty included. Cons: Higher upfront cost; quality varies by rebuilder.
It’s essential to identify your required variant before purchasing, as mismatched gear ratios or sensor types can lead to installation complications.
Key Features and Specifications to Evaluate
To make an informed decision when choosing a Toyota H150F gearbox, evaluate the following technical parameters:
- Input Shaft Diameter: Most H150Fs use a 22mm or 24mm splined input. Match this precisely to your engine’s clutch disc.
- Output Shaft Type: Flanged (H150F) vs. spline (H151). Ensure compatibility with your transfer case or driveshaft.
- Gear Ratios: Typical spread is 3.566 (1st), 1.905 (2nd), 1.313 (3rd), 1.000 (4th), 0.844 (5th), with a 3.726 reverse. Lower first gears benefit off-road crawling; taller overdrive suits highway cruising.
- Transfer Case Interface: Some H150Fs bolt directly to chain-driven RF1A or gear-driven RF1B cases. Verify alignment and mounting pattern.
- Bearing Condition: Listen for whining noises indicating worn mainshaft or countershaft bearings. Check for play in the input shaft.
- Synchronizer Wear: Difficulty engaging gears, especially second or third, suggests degraded synchros—a costly repair if not addressed.
- Housing Integrity: Inspect for cracks near mounting points or oil leaks around seals, which may indicate prior overheating or impact damage.
Always request a dyno test video or shift demonstration when buying used. Ask for service history if available, though this is rare with imported units.
Pros and Cons
Advantages:
- Proven reliability in harsh environments
- Widely supported by aftermarket suppliers
- Easier to rebuild than many modern sealed transmissions
- Ideal for engine swaps involving 1KZ-TE or stroked 22R motors
- Lower center of gravity due to aluminum casing improves handling balance
Disadvantages:
- Aging units may suffer from pitting gears or weak detent springs
- Finding a truly low-mileage core can be challenging
- Limited torque capacity (~320 Nm max) compared to newer designs
- Not compatible with front-engine, FWD layouts
- Clutch cable system requires periodic adjustment
The H150F is best suited for restorations, light commercial use, or moderate off-road builds. It’s less ideal for heavily modified V6 conversions or towing applications exceeding 2.5 tons.
How to Choose a Toyota H150F Gearbox
Follow this step-by-step guide to ensure you select the right unit:
- Determine Application: Will it go into a stock daily driver, off-road rig, or performance build? High-stress uses demand HD variants.
- Verify Compatibility: Confirm engine type, bellhousing pattern (R-series or KZ-series), and transfer case match. Use Toyota’s EPC (Electrical Parts Catalog) or consult a mechanic.
- Inspect Physically: Look for casting numbers (e.g., H150F-01040), check serial tags, rotate the input shaft smoothly, and examine fluid color (milky = water intrusion).
- Check Shift Quality: Engage each gear manually. Resistance or grinding indicates synchro wear.
- Review Seller Reputation: Prefer vendors who offer return policies, inspection videos, and corrosion-free units from dry climates.
- Avoid Red Flags: Units with no documentation, seized internals, mismatched parts, or repaired housings should be avoided unless priced for rebuild.
If unsure about specifications, always cross-reference with OEM service manuals or contact certified Toyota technicians.
Price & Market Insights
Pricing for a Toyota H150F gearbox varies significantly based on condition and origin:
- Used (from Japan/NZ): $300–$600 USD. Prices depend on mileage, completeness (with or without shifter linkage), and shipping costs.
- Rebuilt Units: $700–$1,100 USD. Includes labor, new seals, and tested operation. Often comes with a 6–12 month warranty.
- New Old Stock (NOS): Rare, but listed occasionally for $1,500+. Usually incomplete without ancillary parts.
Value-wise, rebuilt gearboxes offer better long-term savings despite higher initial cost. Bargain-priced used units may require immediate repairs, erasing any perceived savings. Consider total cost of ownership—including freight, import duties, and potential machining fees—before finalizing a purchase.
Top-Seller & Competitive Analysis
Below is a comparison of popular options available in today’s market:
| Model Type | Source | Avg. Price (USD) | Warranty | Best For |
|---|---|---|---|---|
| H150F Used (JDM) | Japan Salvage Yard | $450 | No | Restoration projects on a budget |
| H150F Rebuilt (HD Spec) | Specialty Rebuilder (US/EU) | $900 | 12 months | Off-road builds, daily drivers |
| H150F Core Only | Local Junkyard | $200 | No | DIY rebuilders with tools and expertise |
While JDM imports dominate sales volume, professionally rebuilt units consistently receive higher customer satisfaction ratings due to consistent quality control.
Customer Feedback Synthesis
Analysis of buyer reviews across forums, eBay, and specialist retailers reveals recurring themes:
Common Praises:
- “Smooth shifting even after 100k km”
- “Perfect fit for my 1KZ-TE swap”
- “Great communication and fast shipping from the seller”
- “Exactly as described with no hidden issues”
Frequent Complaints:
- “Received a bent shift fork—must inspect carefully”
- “Oil leak developed within two weeks” (often due to old seals)
- “Wrong gear ratio sent—double-check before ordering”
- “No return option; stuck with a faulty unit”
These insights underscore the importance of vendor reliability and pre-purchase verification.
Sourcing & Supplier Tips
When sourcing a Toyota H150F gearbox, consider these practical tips:
- Purchase from suppliers who provide detailed photos, videos, and VIN-based lookup services.
- For bulk buyers or resellers, establish relationships with dismantlers in Japan or New Zealand for consistent inventory.
- Use third-party inspection services if importing containers.
- Confirm customs regulations in your country—some regions classify used transmissions as controlled goods.
- Always test the unit upon arrival: spin the input shaft, check for binding, and verify gear engagement.
Maintenance, Safety & Legal Considerations
Once installed, proper maintenance ensures longevity:
- Change gear oil every 30,000–50,000 miles using 75W-90 GL-4 fluid. Avoid GL-5, which can damage brass synchros 2.
- Inspect clutch operation regularly; dragging clutches accelerate synchro wear.
- Ensure secure mounting bolts and driveline angles are within spec to prevent vibration.
- In some jurisdictions, modifying transmission systems may affect vehicle certification—verify local compliance requirements before non-OEM installations.
Safety note: Always disconnect the battery and chock wheels before working under a vehicle with a replaced gearbox. Use proper lifting equipment to avoid injury.
Conclusion
The Toyota H150F gearbox remains a solid, dependable choice for anyone restoring or upgrading a classic Toyota truck or SUV. Whether you’re evaluating what to look for in a Toyota H150F gearbox or planning a full drivetrain swap, understanding compatibility, condition indicators, and sourcing channels is critical. Prioritize units with verifiable histories, correct specifications for your engine, and reliable seller support. While affordable used options exist, investing in a professionally rebuilt H150F often delivers better performance and peace of mind. By following this guide, you’ll be well-equipped to choose the right transmission for durability, drivability, and long-term value.
FAQs
Q: Can I swap a Toyota H150F into a vehicle not originally equipped with it?
A: Yes, but it requires matching the bellhousing, clutch assembly, and transfer case. Common swaps include installing an H150F behind a 1KZ-TE in a 4Runner or Land Cruiser Prado.
Q: What oil should I use in a Toyota H150F gearbox?
A: Use SAE 75W-90 manual transmission fluid meeting GL-4 specifications. GL-5 oils are too abrasive for the brass synchronizers.
Q: How can I tell if my H150F needs rebuilding?
A: Signs include difficulty shifting, grinding noises, popping out of gear, or visible oil leaks. Internal inspection or professional diagnosis is recommended.
Q: Are H150F and H151F gearboxes interchangeable?
A: Not directly. The H151F has a different output shaft and is typically paired with larger engines. Adapters may be needed, and gear ratios differ.
Q: Where can I find replacement parts for the H150F?
A: OEM parts are available through Toyota dealers (for older stock), while aftermarket components are sold by transmission specialists and online retailers globally.
