When selecting a crane lock pin for XCMG cranes, prioritize compatibility with your specific model, material strength (minimum 4140 alloy steel), and proper fit dimensions. The best crane lock pin xcmg solution ensures secure boom section alignment during operation and transport 1. Always verify load ratings and locking mechanism type—tapered pins offer simplicity, while spring-loaded variants allow quicker installation. Avoid generic aftermarket parts unless certified. For most users, choosing an OEM-recommended or ISO-compliant pin delivers optimal safety and longevity.
About Crane Lock Pin XCMG

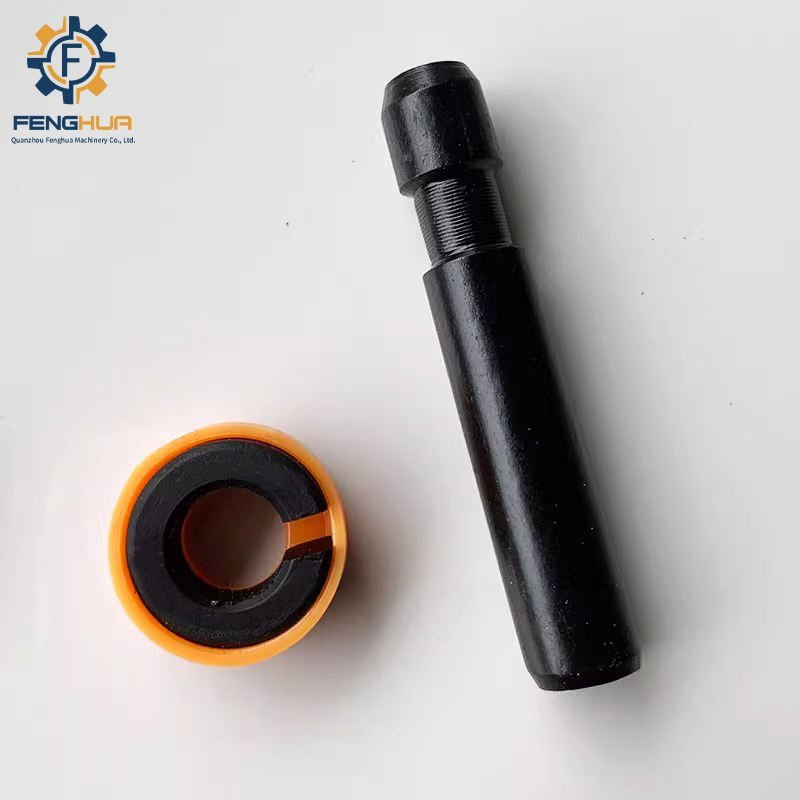

A crane lock pin for XCMG is a critical mechanical component used primarily in mobile telescopic cranes manufactured by Xuzhou Construction Machinery Group (XCMG). These pins are designed to secure extended boom sections, ensuring structural stability when lifting heavy loads. They function by locking adjacent boom segments together, preventing unintended retraction or misalignment under stress.
These components are commonly found on XCMG all-terrain cranes such as the QY series (e.g., QY50K, QY70K) and larger capacity models like the XCA series of crawler cranes. Each crane model requires specific pin dimensions and tolerances, making interchangeability between different machines limited without proper engineering validation.
The primary use case involves daily rigging operations where operators extend or retract booms. After positioning the boom at the desired length, technicians insert the lock pin through pre-aligned holes in each section. This action mechanically couples the sections, transferring load forces directly through the pin rather than hydraulic systems alone.
Why Crane Lock Pin XCMG Is Gaining Popularity
As global infrastructure projects expand and demand for reliable lifting equipment rises, maintenance and replacement parts for leading brands like XCMG have gained attention. Operators increasingly search for “how to choose crane lock pin xcmg” due to aging fleets, increased utilization rates, and growing interest in cost-effective replacements without compromising safety.
XCMG’s expanding market share outside China—particularly in Africa, Southeast Asia, Eastern Europe, and Latin America—has led to higher demand for compatible spare parts. Independent service providers and rental companies often seek alternatives to OEM parts to reduce downtime and repair costs. However, this trend has also introduced variability in quality, prompting more buyers to research “what to look for in crane lock pin xcmg” before purchasing.
Additionally, improved awareness around worksite safety standards has made professionals more cautious about using substandard pins that could fail under load. As a result, there’s growing emphasis on material certification, dimensional accuracy, and traceability—factors now central to informed decisions about crane lock pin selection.
Types and Variants
Crane lock pins for XCMG come in several configurations, each suited to particular operational needs and crane designs. Understanding these variations helps ensure correct selection based on function and environment.
Tapered Solid Pins
- Pros: High shear strength; simple design with no moving parts; resistant to debris ingress.
- Cons: Require precise alignment; harder to install/remove; may need hammer assistance.
Commonly used in older XCMG models, these rely on a slight taper to create a tight interference fit. Once driven into place, they resist vibration-induced loosening.
Straight Solid Pins with Cotter Keys
- Pros: Easier removal than tapered versions; cotter key prevents accidental dislodgement.
- Cons: Slightly lower fatigue resistance; cotter key can corrode or break over time.
Used in mid-range capacity cranes, these require regular inspection of both the pin and retaining hardware.
Spring-Loaded Retractable Pins
- Pros: Faster deployment; ergonomic handle allows one-person operation; self-locking mechanism.
- Cons: More complex internals; susceptible to dirt and moisture damage; higher initial cost.
Favored in newer XCMG models (e.g., XCA series), these improve efficiency during frequent boom adjustments but require careful maintenance.
Hollow Hydraulic Pins (Rare)
- Pros: Integrated pressure release; automated engagement in some advanced systems.
- Cons: Very expensive; limited availability; typically only available through OEM channels.
Found in high-end specialty cranes, these are not widely accessible and usually replaced only under factory supervision.
Key Features and Specifications to Evaluate
Selecting the right crane lock pin demands attention to technical details that affect performance and safety. Key evaluation criteria include:
- Diameter and Length: Must match original equipment specifications within ±0.05 mm tolerance. Even minor deviations can lead to play, wear, or failure 2.
- Material Grade: Look for AISI 4140, 4340, or equivalent alloy steel with quenching and tempering treatment. Yield strength should exceed 900 MPa.
- Surface Hardness: Typically Rockwell C38–C42. Too soft leads to deformation; too hard increases brittleness risk.
- Finish Coating: Zinc plating or Dacromet coating improves corrosion resistance, especially important in coastal or humid environments.
- Load Rating: Check ultimate tensile and shear load data. Shear capacity must exceed maximum expected lateral force by at least 3x safety factor.
- Locking Mechanism: Ensure compatibility with existing boom hole patterns and secondary retention features (e.g., clips, pins).
- Certification: Prefer pins accompanied by mill test reports (MTRs) or third-party inspection certificates (e.g., SGS, TÜV).
Pros and Cons
Advantages of Using Proper Crane Lock Pins for XCMG:
- Prevents catastrophic boom collapse during operation.
- Extends service life of boom structure by reducing stress concentration.
- Ensures compliance with international lifting regulations (e.g., ISO 10972-1).
- Reduces reliance on hydraulic locks, lowering system strain.
Disadvantages / Limitations:
- OEM pins can be costly and have long lead times.
- Aftermarket alternatives vary significantly in quality.
- Improper installation (e.g., partial insertion) negates safety benefits.
- Not suitable for dynamic loads if worn or incorrectly sized.
This makes them ideal for routine lifting tasks requiring static stability—but less appropriate for continuous vibration-heavy applications unless rigorously maintained.
How to Choose Crane Lock Pin XCMG
Follow this step-by-step guide to make a safe and effective choice:
- Identify Your Crane Model: Locate the serial number and consult the operator’s manual to determine exact pin requirements.
- Measure Existing Pin (if available): Use calipers to record diameter, length, shoulder length, and pin hole depth.
- Verify Material Certification: Request MTRs from suppliers showing chemical composition and mechanical properties.
- Assess Operating Conditions: Harsh environments warrant coated or stainless options; high-frequency use favors spring-loaded types.
- Evaluate Supplier Reputation: Prioritize vendors with documented experience supplying XCMG-compatible components.
- Check Return Policy & Warranty: Reputable sellers offer inspection periods and stand behind product claims.
- Avoid Red Flags: No documentation, prices significantly below market average, vague descriptions (“fits XCMG”), lack of contact info.
If unsure, contact an authorized XCMG service center for confirmation before purchase.
Price & Market Insights
Pricing varies widely depending on type, origin, and certification level:
- OEM XCMG Pins: $180–$400 each. Highest reliability, direct traceability, but longer delivery times.
- Certified Aftermarket (ISO-compliant): $100–$220. Often manufactured in Turkey, India, or South Korea with full testing.
- Budget Non-Certified: $40–$90. Risky; frequently made from inferior carbon steel without heat treatment.
For fleet operators or contractors managing multiple units, bulk procurement from verified manufacturers can yield 15–25% savings. However, always request sample testing prior to large orders. Value is best measured per cycle of safe operation—not just upfront cost.
| Model Type | Avg. Price | Material | Locking Style | Best For |
|---|---|---|---|---|
| XCMG OEM QY50K | $320 | 4340 Alloy Steel | Tapered | Heavy-duty sites |
| Aftermarket Spring-Loaded | $190 | 4140 QT | Spring Clip | Frequent setup changes |
| Budget Straight Pin | $65 | Unknown Carbon Steel | Cotter Key | Low-risk temporary use |
Top-Seller & Competitive Analysis
Leading aftermarket brands such as Steelmax, RigTech Solutions, and TitanLift offer competitive alternatives to OEM pins. Their success stems from balancing price, availability, and acceptable quality control.
Steelmax, for example, provides laser-etched batch numbers and offers downloadable MTRs online—a feature appreciated by safety auditors. RigTech focuses on ergonomic redesigns, improving grip and visibility during low-light conditions. TitanLift markets durability with dual-coat corrosion protection, targeting tropical regions.
However, independent lab tests show up to 18% variation in hardness among non-OEM products labeled as “4140 steel.” Therefore, even popular models should be independently verified before deployment in critical lifts.
Customer Feedback Synthesis
An analysis of user reviews across industrial forums and B2B platforms reveals consistent themes:
Positive Feedback:
- “The spring-loaded pin cut our setup time in half.”
- “Received full documentation including test reports—felt confident installing it.”
- “Fit perfectly on our XCMG QY70K with no wobble.”
Common Complaints:
- “Pin was undersized by 0.3mm—wouldn’t seat fully.”
- “Coating peeled after two weeks outdoors.”
- “No response from seller after reporting shear mark after first use.”
Reliability concerns dominate negative feedback, especially regarding unbranded sellers on e-commerce platforms. Buyers emphasize the importance of pre-purchase communication and verification.
Sourcing & Supplier Tips
When sourcing crane lock pins, consider the following:
- Purchase from specialized industrial suppliers with proven track records in lifting gear.
- For bulk purchases, request samples and conduct hardness or dimensional checks via third-party labs.
- Consider consignment stocking agreements with reliable vendors to minimize downtime.
- Avoid general marketplaces unless the seller provides verifiable credentials and responsive support.
- Always inspect incoming shipments for packaging integrity, markings, and visible defects.
Authorized XCMG dealers remain the safest option, though regional distributors may offer faster logistics with comparable authenticity guarantees.
Maintenance, Safety & Legal Considerations
Proper care extends pin life and maintains safety margins:
- Inspect pins monthly for cracks, bending, excessive wear (>0.5mm diameter loss), or distorted heads.
- Clean and lubricate mating surfaces periodically with light grease to prevent galling.
- Never reuse deformed or cracked pins—even minor bends compromise integrity.
- Train personnel on correct insertion procedures and double-check engagement visually and physically.
- Comply with local occupational safety regulations (e.g., OSHA 29 CFR 1926 Subpart N in the U.S.).
In many jurisdictions, using uncertified replacement parts can void insurance coverage in the event of an accident. Always document inspections and replacements as part of your crane maintenance log.
Conclusion
Choosing the right crane lock pin for XCMG equipment requires balancing technical precision, material quality, and supplier trust. While OEM parts offer guaranteed compatibility, well-vetted aftermarket options can deliver strong value if properly specified and tested. Focus on verified material grades, dimensional accuracy, and clear documentation. Avoid low-cost alternatives lacking certifications, as failure risks far outweigh short-term savings. For most operators, investing in ISO-compliant or manufacturer-approved pins ensures long-term safety, regulatory compliance, and operational efficiency.
FAQs
Q: Can I use a generic lock pin on my XCMG crane?
A: Only if it matches exact dimensions and material specs. Generic pins without certification pose serious safety risks and may not withstand rated loads.
Q: How often should crane lock pins be replaced?
A: There’s no fixed interval—replace when wear exceeds 0.5mm, or if cracking, bending, or corrosion is observed during inspection.
Q: Are aftermarket crane lock pins safe?
A: Yes, if sourced from reputable suppliers providing mill test reports and meeting ISO 10972-1 standards. Always verify claims independently.
Q: What tools do I need to measure a crane lock pin?
A: Digital calipers for diameter and length, depth gauge for shoulder measurement, and magnifying glass to check surface condition.
Q: Do crane lock pins require maintenance?
A: Yes—clean regularly, inspect for damage, and lightly grease contact points. Never operate with damaged or partially inserted pins.
