When selecting a termination kit 11kV slow 3 core, prioritize kits that meet IEC 60502-2 or IEEE 48 standards, feature stress control components, and are compatible with your cable type (e.g., XLPE or EPR). The right kit ensures long-term reliability in medium-voltage power distribution systems, especially in industrial and utility environments where insulation integrity is critical 1. Look for kits with proven environmental sealing, corrosion-resistant connectors, and clear installation instructions. Avoid generic brands lacking third-party certification.
About Termination Kit 11kV Slow 3 Core

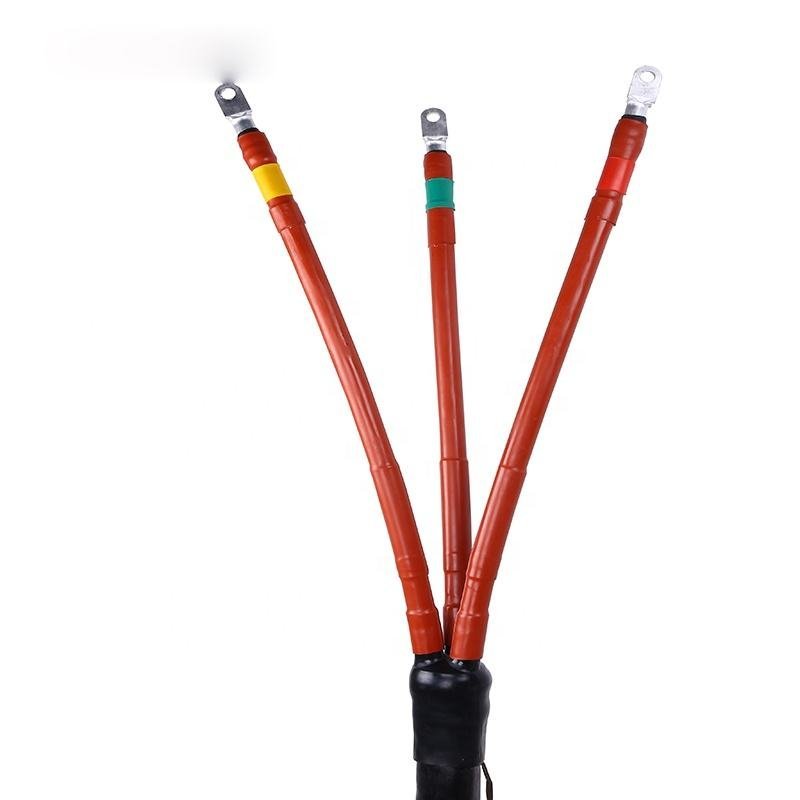

A termination kit 11kV slow 3 core is a specialized assembly used to safely connect medium-voltage (MV) three-core power cables rated at 11 kilovolts (kV) to switchgear, transformers, or overhead lines. These kits are designed for ‘slow’ applications—typically meaning they are not intended for rapid switching or high-frequency operations—but rather for stable, continuous power transmission in fixed installations such as substations, commercial buildings, and industrial plants.
The term ‘slow’ refers to the thermal and electrical response characteristics of the materials used, particularly in heat-shrink or cold-shrink components, which require controlled application procedures to ensure proper adhesion and dielectric performance. These kits include essential parts like stress cones, heat-shrink tubes, grounding shields, connectors, and sealing boots, all engineered to manage electric field distribution and prevent partial discharge at the cable end.
Commonly used with cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) insulated cables, an 11kV slow 3 core termination kit must maintain insulation continuity, provide mechanical protection, and offer environmental resistance against moisture, dust, and chemical exposure.
Why Termination Kit 11kV Slow 3 Core Is Gaining Popularity
The growing demand for reliable medium-voltage infrastructure has driven increased adoption of standardized termination solutions like the termination kit 11kV slow 3 core. Urbanization, industrial expansion, and grid modernization projects worldwide require robust, easily installable, and safe cable terminations. These kits reduce on-site labor time, minimize human error during installation, and enhance system longevity.
Utilities and contractors favor pre-engineered kits because they simplify compliance with international safety standards. Additionally, advancements in material science have improved the durability and ease of use of cold-shrink and heat-shrink technologies, making these kits suitable even in challenging environments such as coastal areas or underground vaults.
Another factor contributing to their popularity is the rising focus on preventive maintenance and asset lifecycle management. Using certified termination kits reduces the risk of unplanned outages caused by insulation failure or water ingress—common causes of MV cable faults.
Types and Variants
There are several types of termination kits available for 11kV three-core cables, each suited to different conditions and operational needs:
1. Heat-Shrink Termination Kits
- Pros: High dielectric strength, excellent environmental sealing, cost-effective.
- Cons: Requires a heat source (propane torch or heat gun), skilled labor for uniform shrinking, not ideal in explosive atmospheres.
Ideal for permanent indoor or outdoor installations where flame use is permitted.
2. Cold-Shrink (Pre-Expanded) Termination Kits
- Pros: No heat required, faster installation, safer in confined or hazardous locations.
- Cons: Higher initial cost, limited reusability once deployed.
Preferred in petrochemical facilities, tunnels, or urban substations where hot work permits are restricted.
3. Pourable/Resin-Filled Termination Kits
- Pros: Excellent moisture resistance, customizable fit, good for irregular shapes.
- Cons: Longer curing time, sensitive to mixing ratios and temperature, messier process.
Suitable for underground joints or wet environments but less common for standard terminations today.
4. Dry-Type vs. Oil-Filled
Dry-type terminations dominate modern installations due to lower maintenance and environmental safety. Oil-filled variants are largely obsolete except in legacy systems.
Key Features and Specifications to Evaluate
To make an informed decision when choosing a termination kit 11kV slow 3 core, consider the following technical and practical factors:
- Voltage Rating: Confirm the kit is rated for 12/20 kV (system voltage up to 12 kV, allowing margin above nominal 11 kV).
- Cable Diameter Range: Ensure compatibility with your cable’s outer diameter (OD), typically between 30–70 mm depending on cross-section.
- Insulation Type: Match the kit to your cable insulation—XLPE, EPR, or PILC.
- Conductor Size: Check acceptable conductor cross-sectional area (e.g., 50–300 mm²).
- Environmental Protection: Look for IP68 rating or equivalent for submersion resistance if needed.
- Grounding System: Integrated grounding tails or braid connections should support fault current levels per local regulations.
- Standards Compliance: Verify adherence to IEC 60502-2, ICEA S-97-682, or IEEE 48 2.
- UV Resistance: Essential for outdoor terminations exposed to sunlight.
In addition, examine whether the kit includes strain relief, anti-tracking coatings, and color-coded phases for easier identification.
Pros and Cons
Advantages
- Ensures consistent, factory-tested performance.
- Reduces field errors compared to hand-made terminations.
- Improves safety through controlled electric field grading.
- Supports faster commissioning and reduced downtime.
- Long service life when properly installed.
Disadvantages
- Higher upfront cost than basic components.
- Requires precise adherence to installation instructions.
- Performance depends heavily on installer skill, especially for heat-shrink types.
- Limited flexibility if cable dimensions fall outside specified range.
These kits are best suited for new installations, retrofits, and critical repair work. They are not recommended for temporary setups unless specifically designed for reuse.
How to Choose a Termination Kit 11kV Slow 3 Core
Follow this step-by-step guide to select the right product:
- Identify Cable Specifications: Note insulation type, conductor size, shield configuration, and outer diameter.
- Determine Installation Environment: Indoor, outdoor, underground, submerged, or corrosive? This affects material selection.
- Select Termination Type: Choose heat-shrink, cold-shrink, or resin-based based on site constraints and tools available.
- Verify Standards Compliance: Ensure the kit meets regional electrical codes and international benchmarks like IEC or IEEE.
- Check Manufacturer Reputation: Opt for brands with documented field performance and technical support.
- Review Included Components: Make sure all necessary parts (connectors, seals, grounding wires) are included.
- Evaluate Installation Complexity: Consider training requirements; some kits need certified technicians.
- Assess Warranty & Support: Reputable suppliers offer technical guides, videos, and post-sale assistance.
Red flags to avoid:
- No published test reports or certifications.
- Vague compatibility information.
- Missing instructions or diagrams.
- Unrealistically low pricing suggesting substandard materials.
Price & Market Insights
Pricing for a termination kit 11kV slow 3 core varies significantly based on type, brand, and region:
- Heat-Shrink Kits: $80–$180 per set.
- Cold-Shrink Kits: $150–$300 per set.
- Pourable/Resin Kits: $100–$200, plus labor for mixing and curing.
Premium brands like 3M, Prysmian, Nexans, and Hubbell command higher prices but often deliver better long-term reliability. Budget options exist from Asian manufacturers, but verify specifications carefully. For bulk purchases (10+ units), expect 10–20% discounts from authorized distributors.
Value isn’t just about price—it’s total cost of ownership. A slightly more expensive kit with easier installation can save labor costs and reduce failure risks.
| Brand | Type | Price Range (USD) | Key Feature | Best For |
|---|---|---|---|---|
| 3M | Cold-Shrink | $220–$280 | Tool-free installation, UV resistant | Outdoor substations |
| Prysmian | Heat-Shrink | $110–$160 | IEC 60502-2 compliant | Industrial plants |
| Nexans | Cold-Shrink | $190–$250 | Integrated stress control | Coastal installations |
| Hengtong | Heat-Shrink | $75–$120 | Budget-friendly | Short-term projects |
Customer Feedback Synthesis
Based on aggregated reviews from industry forums, procurement platforms, and distributor feedback:
Common Praises:
- “Easy to follow color-coded instructions.”
- “Reliable sealing even after heavy rain exposure.”
- “Reduced installation time by half compared to older methods.”
- “Clear labeling and organized packaging.”
Frequent Complaints:
- “Instructions assumed prior knowledge—needed YouTube tutorials.”
- “Cold-shrink tube was stiff in cold weather, hard to deploy.”
- “Missing grounding lug in one unit of a five-pack.”
- “Poor UV resistance after two years outdoors.”
This highlights the importance of clear documentation, quality control, and realistic expectations regarding environmental durability.
Sourcing & Supplier Tips
Procure termination kits from authorized distributors or directly from manufacturers to avoid counterfeits. Major suppliers include Rexel, Graybar, Anixter, and local electrical wholesalers. When buying in bulk:
- Request sample kits before large orders.
- Ask for certificates of conformity (CoC) and test reports.
- Negotiate delivery timelines and return policies.
- Consider vendor training programs for installers.
For OEM or private-label opportunities, confirm minimum order quantities (MOQs)—typically 50–100 units. Always inspect received shipments for damaged packaging or missing components.
Maintenance, Safety & Legal Considerations
Once installed, periodic inspection is crucial. Check for:
- Cracking or brittleness in heat-shrink materials.
- Corrosion on connector terminals.
- Water ingress signs (discoloration, swelling).
- Loose connections causing overheating.
Safety precautions:
- Always de-energize and ground the cable before working.
- Use personal protective equipment (PPE) including gloves and face shields.
- Follow lockout/tagout (LOTO) procedures.
Legally, installations must comply with national wiring rules such as NEC (USA), BS 7671 (UK), or AS/NZS 3000 (Australia). Improper terminations may void insurance or lead to liability in case of fire or injury.
Conclusion
Choosing the right termination kit 11kV slow 3 core involves balancing technical compatibility, environmental resilience, ease of installation, and long-term reliability. Prioritize kits that conform to recognized international standards, match your cable specifications exactly, and come from reputable manufacturers. While cold-shrink kits offer convenience and safety, heat-shrink versions remain cost-effective for trained teams. Avoid cutting corners on quality—poor terminations are a leading cause of MV cable failures. With proper selection and installation, these kits provide decades of dependable service in critical power systems.
FAQs
Q: Can I use a termination kit 11kV slow 3 core for 33kV systems?
A: No. These kits are designed specifically for 11kV-class systems. Using them on higher voltages creates serious safety hazards and insulation breakdown risks.
Q: What tools are needed to install a heat-shrink 11kV termination kit?
A: You’ll need a calibrated heat gun or propane torch, wire brush, cable stripper, torque wrench for connectors, and cleaning solvents. Follow the manufacturer’s tool list precisely.
Q: How long do 11kV termination kits last?
A: Typically 15–25 years under normal conditions. Outdoor installations may degrade faster due to UV and thermal cycling.
Q: Are cold-shrink kits reusable?
A: No. Once the core is removed and the sleeve expands, it cannot be reset. Each kit is for single-use only.
Q: Do I need special training to install these kits?
A: Yes. Manufacturers recommend certified training, especially for MV applications. Incorrect installation can lead to arcing, fire, or electric shock.
