When choosing the right pvc pipe printing machine for industrial or commercial use, prioritize models with high-resolution inkjet systems, durable construction, and compatibility with your production line speed. For most buyers seeking reliable performance, a semi-automatic inline thermal transfer printer offers the best balance of cost, precision, and ease of integration 1. Key considerations include print resolution (minimum 300 dpi), material compatibility, drying time, and maintenance accessibility. Avoid low-cost machines lacking calibration controls or vendor support—these often lead to inconsistent labeling and downtime. Understanding how to choose pvc pipe printing machine variants based on output volume and environmental conditions ensures long-term efficiency.
Short Introduction
Selecting the appropriate pvc pipe printing machine is critical for manufacturers aiming to label products with batch codes, logos, compliance marks, or barcodes directly onto rigid PVC surfaces. These machines ensure traceability, branding, and regulatory adherence across plumbing, construction, and irrigation industries. The market offers various technologies—from continuous inkjet (CIJ) to thermal transfer and laser coders—each suited to different production environments. This guide breaks down everything you need to know before purchasing, helping you avoid costly mismatches between machine capability and operational demand.
About PVC Pipe Printing Machine
A pvc pipe printing machine is an industrial device designed to apply permanent markings directly onto the outer surface of polyvinyl chloride (PVC) pipes during or after extrusion. Unlike adhesive labels, direct printing eliminates risks of peeling, tampering, or environmental degradation. These systems are commonly integrated into automated production lines but also available in standalone configurations for smaller operations.
Typical applications include marking diameter size, manufacturer name, pressure rating, ASTM standards, production date, and QR codes. Some advanced units support variable data printing, enabling real-time serialization for inventory tracking 2. The printed content must remain legible under exposure to sunlight, moisture, and handling stress—making ink adhesion and UV resistance crucial factors.
Why PVC Pipe Printing Machine Is Gaining Popularity
The global shift toward automation and product traceability has significantly increased demand for inline coding solutions. In the plastic pipe industry, regulations such as ISO 15875 and ASTM D1785 require permanent identification on all pressure-rated piping. As manual labeling proves unreliable and non-compliant, companies are investing in automated pvc pipe printing machines to meet these standards efficiently.
Beyond compliance, digital printing enhances brand visibility and reduces counterfeiting. Real-time data integration allows factories to track batches from production to delivery, improving recall management and quality control. Additionally, eco-conscious manufacturers favor direct printing over label-based methods due to reduced plastic waste and lower lifecycle impact.
Types and Variants
Different technologies serve distinct needs in pvc pipe printing. Below are the primary types:

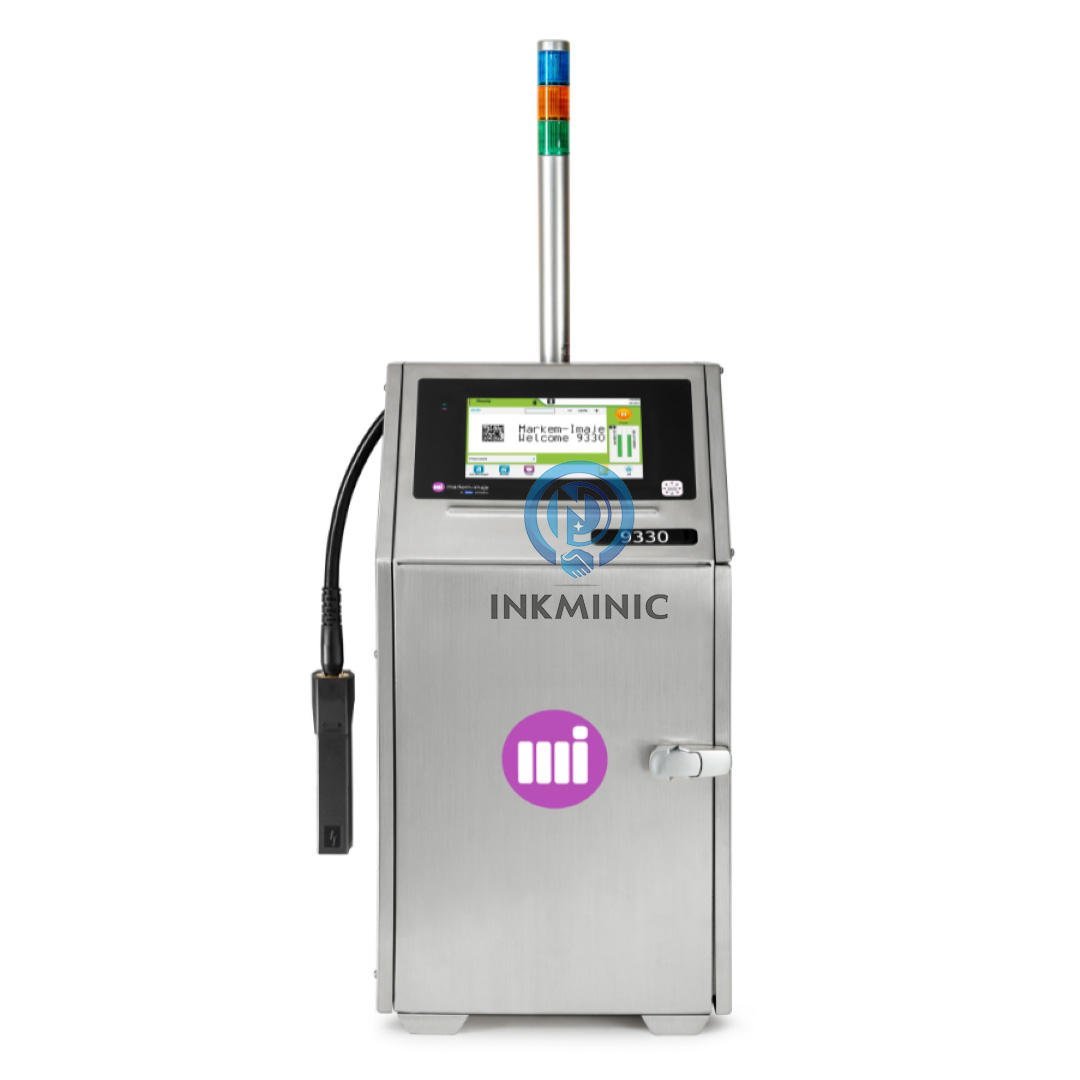

1. Continuous Inkjet (CIJ) Printers
CIJ systems eject a continuous stream of charged ink droplets, deflecting them onto the pipe surface using electrostatic plates. They operate without contact and handle high-speed lines effectively.
- Pros: High-speed printing (up to 100 m/min), non-contact process, capable of curved surface printing, supports multiple languages and complex codes.
- Cons: Requires regular cleaning, sensitive to ambient humidity, higher ink consumption, more expensive consumables.
2. Thermal Transfer Overprint (TTO) Systems
TTO uses a heated printhead and ribbon to transfer ink onto the pipe via a rotating drum or belt. Best suited for flat or slightly curved labeling zones.
- Pros: High-resolution output (up to 600 dpi), excellent for small text and 2D codes, consistent color density, lower operating costs than CIJ.
- Cons: Limited to slower speeds (~30 m/min), requires physical contact, ribbon replacement adds maintenance step.
3. Laser Marking Machines
Laser systems engrave or discolor the PVC surface using focused beams. No ink required, making them ideal for harsh environments.
- Pros: Permanent marks, zero consumables, minimal maintenance, resistant to abrasion and solvents.
- Cons: Higher initial cost, limited color options (typically black/gray marks), may alter material integrity if misconfigured.
4. Drop-on-Demand (DOD) Inkjet Printers
DOD systems release ink only when needed, reducing waste. Suitable for intermittent printing tasks or batch coding.
- Pros: Lower ink usage, good for medium-speed lines, quieter operation.
- Cons: Slower than CIJ, nozzle clogging risk in dusty environments, less common in large-scale pipe manufacturing.
Key Features and Specifications to Evaluate
To determine what to look for in pvc pipe printing machine setups, assess the following technical parameters:
- Print Resolution: Minimum 300 dpi recommended; 600 dpi preferred for barcodes and fine text.
- Line Speed Compatibility: Match printer throughput with extrusion speed (e.g., CIJ for >50 m/min).
- Ink Adhesion & Curing Time: Test ink on actual PVC compound; UV-curable inks dry faster but require curing lamps.
- Interface & Connectivity: Look for Ethernet, USB, or OPC-UA support for integration with SCADA/MES systems.
- Nozzle Protection: Machines used in dusty environments should have automatic cap mechanisms.
- Font & Code Flexibility: Ensure software supports dynamic fields like date/time, counters, and database pulls.
- Maintenance Access: Modular designs allow quicker servicing and reduce downtime.
Pros and Cons
Advantages of Using a PVC Pipe Printing Machine:
- Ensures regulatory compliance with permanent, tamper-proof markings.
- Improves logistics and traceability through serialized coding.
- Enhances professional appearance compared to stickers or hand-stamping.
- Reduces long-term labeling costs by eliminating label rolls and adhesives.
- Supports Industry 4.0 integration with real-time data logging.
Disadvantages and Limitations:
- High upfront investment, especially for laser or full-color CIJ systems.
- Requires operator training and periodic maintenance.
- Potential for ink smearing if drying time isn’t synchronized with line speed.
- Not ideal for very short production runs unless setup is quick-change.
- Sensitivity to environmental conditions (temperature, dust, humidity).
How to Choose a PVC Pipe Printing Machine
Follow this step-by-step checklist to make an informed decision:
- Define Your Output Requirements: Determine average pipe diameter, length, production speed, and required print area.
- Identify Print Content Needs: Will you print static text, variable data, barcodes, or QR codes? Choose a system with compatible software.
- Select the Right Technology: Use CIJ for high-speed lines, TTO for high-resolution needs, or laser for extreme durability.
- Verify Material Compatibility: Conduct sample tests with your specific PVC formulation to check ink adhesion.
- Evaluate Integration Feasibility: Confirm mounting options, power supply, and communication protocols match existing equipment.
- Assess After-Sales Support: Prioritize vendors offering onsite training, spare parts availability, and remote diagnostics.
- Check Consumable Costs: Compare total cost of ownership—not just purchase price—factoring in ink, ribbons, or gas (for some lasers).
- Avoid Red Flags: Steer clear of machines without CE/UL certification, unclear warranty terms, or no local service network.
Price & Market Insights
Pricing varies widely based on technology and scale:
- Entry-Level (Manual/Tabletop): $2,000–$6,000 – suitable for small workshops or R&D labs.
- Mid-Range (Semi-Automatic Inline): $8,000–$20,000 – common choice for medium-sized producers needing reliable throughput.
- High-End (Fully Automated/Laser): $25,000–$60,000+ – used in large extrusion plants with strict compliance demands.
Value-for-money typically lies in mid-tier CIJ or TTO systems that offer modular upgrades. Be cautious of imported models priced below $3,000—they may lack safety certifications or technical documentation. Always request ROI calculations from suppliers showing payback period via reduced labor and error rates.
| Model Type | Technology | Max Line Speed | Avg. Price | Ideal For |
|---|---|---|---|---|
| Videojet 1820 | CIJ | 120 m/min | $18,500 | High-volume pipe extrusion |
| Domino A320i | TTO | 30 m/min | $12,000 | Precision coding on small-diameter pipes |
| Trumpf TruMark 5000 | Fiber Laser | 40 m/min | $48,000 | Permanent serial numbers in corrosive environments |
Customer Feedback Synthesis
Analysis of user reviews and field reports reveals recurring themes:
Common Praises:
- “Reliable print clarity even at high speeds” – frequently noted for Videojet and Domino brands.
- “Easy integration with our PLC system” – users appreciate open communication protocols.
- “Low maintenance after initial setup” – especially true for laser systems.
Frequent Complaints:
- “Ink drying issues in humid climates” – reported with certain CIJ models lacking proper curing.
- “Poor technical support response times” – particularly with lesser-known Chinese manufacturers.
- “Difficulty changing fonts or message layouts” – attributed to outdated HMI software.
- “Frequent nozzle clogs” – occurs when machines aren’t cleaned regularly or air filters fail.
Sourcing & Supplier Tips
When sourcing a pvc pipe printing machine, consider both domestic and international suppliers. Reputable European and North American brands (e.g., Videojet, Domino, Mettler Toledo) offer superior reliability and support but come at a premium. Asian manufacturers (particularly from China and India) provide competitive pricing but vary in quality.
For bulk purchases or OEM integration, negotiate service agreements upfront. Request reference sites where you can observe the machine in operation. If importing, verify customs classification (HS Code 8443.39) and confirm whether electrical specifications (voltage/frequency) match your facility’s standards. Consider third-party inspection services before shipment to validate build quality.
Maintenance, Safety & Legal Considerations
Regular maintenance includes cleaning nozzles, replacing filters, checking printhead alignment, and updating firmware. Follow manufacturer-recommended intervals to prevent unplanned stoppages.
Safety precautions involve proper ventilation (especially with solvent-based inks), lockout/tagout procedures during servicing, and protective eyewear when working near lasers.
Legally, ensure the machine complies with regional electrical safety standards (e.g., CE in Europe, UL in the U.S.). Printed information must adhere to local building code requirements—for example, ANSI/ASME A13.1 for pipe identification in the U.S. Verify that your chosen printer can produce compliant markings per applicable regulations.
Conclusion
Choosing the best pvc pipe printing machine depends on your production scale, required print quality, and integration needs. For high-speed lines, continuous inkjet printers deliver unmatched performance. For precision and clarity, thermal transfer systems excel. Laser markers offer permanence for demanding environments. By evaluating key specs, understanding total cost of ownership, and verifying supplier credibility, you can select a solution that ensures compliance, improves efficiency, and strengthens brand identity. Always test the machine with your actual product before full deployment.
FAQs
Q: Can a pvc pipe printing machine work on colored or dark pipes?
A: Yes, but contrast matters. Use light-colored inks (e.g., white or yellow) on dark substrates. Some lasers create visible marks through surface foaming rather than color change.
Q: How often do I need to maintain a CIJ printer?
A: Daily visual checks and weekly cleaning are recommended. Major servicing (pump and filter replacement) should occur every 6–12 months depending on usage.
Q: Are there eco-friendly ink options for pvc pipe printing?
A: Water-based and UV-curable inks are more environmentally friendly than solvent-based alternatives. Check MSDS sheets for VOC content and disposal guidelines.
Q: Can I integrate a printing machine with my existing ERP system?
A: Most modern printers support ODBC, TCP/IP, or OPC connections for seamless data exchange with ERP or MES platforms—confirm compatibility with your IT team.
Q: What should I do if prints start smearing?
A: First, verify ink drying time matches line speed. Then inspect nozzle condition, ambient temperature, and ink expiration date. Adjust settings or clean components as needed.
