When choosing an o ring measuring tool, prioritize accuracy, durability, and ease of use—especially if you’re working in automotive, aerospace, or industrial maintenance. The best o ring measuring tools combine precise sizing capabilities with user-friendly design, such as digital calipers with o ring groove measurement functions or dedicated go/no-go gauges 1. For most professionals, a digital vernier caliper calibrated for inner diameter (ID), outer diameter (OD), and cross-section (CS) measurements offers the greatest versatility. If you frequently replace seals in hydraulic systems, consider a tool set that includes both measurement devices and o ring removal accessories to streamline workflow efficiency.
Short Introduction
Selecting the right o ring measuring tool depends on your specific application needs, frequency of use, and required precision. Whether you’re a mechanic, engineer, or DIY enthusiast, accurate o ring sizing prevents leaks, extends equipment life, and reduces downtime. This guide explores everything from basic manual gauges to advanced digital kits, helping you understand what to look for in an o ring measuring tool based on real-world performance, material compatibility, and long-term value.
About O Ring Measuring Tools
An o ring measuring tool is a specialized device used to determine the critical dimensions of rubber or elastomeric seals—primarily inner diameter (ID), outer diameter (OD), and cross-sectional thickness (CS). These tools are essential when replacing worn or damaged o rings, especially when original part numbers are missing or undocumented 2.
Common applications include automotive engine rebuilding, HVAC system servicing, pneumatic machinery repair, and aerospace component maintenance. In these environments, even a 0.5 mm deviation in o ring size can lead to seal failure under pressure or temperature stress. As such, reliable measurement is not optional—it’s a necessity for safety and performance.
O ring measuring tools come in various forms, ranging from simple templates and rulers to precision digital calipers and laser-based scanners. Their primary purpose is to eliminate guesswork and ensure correct replacement part selection from standard o ring charts (e.g., AS568, ISO 3601).
Why O Ring Measuring Tools Are Gaining Popularity
In recent years, demand for accurate o ring measuring solutions has increased due to several industry trends. First, more complex machinery relies on tighter tolerances, making visual estimation obsolete. Second, preventive maintenance programs now emphasize data-driven decisions, requiring documented measurements rather than assumptions.
Additionally, the rise of e-commerce for industrial parts means users often order replacements online without physical samples. This makes having a trustworthy way to measure existing o rings crucial. Mechanics and technicians who previously relied on trial-and-error methods are turning to dedicated tools to reduce return rates and avoid costly installation errors.
Another driver is the growing adoption of standardized sealing systems across global supply chains. With companies using interchangeable components from multiple vendors, ensuring dimensional compliance has become a priority—further increasing reliance on precise o ring measurement practices.
Types and Variants
Different o ring measuring tools serve distinct purposes depending on environment, volume, and accuracy requirements. Below are the most common types available today:
1. Digital Calipers
Digital calipers are among the most versatile o ring measuring tools. They allow users to measure ID, OD, and CS with high precision (typically ±0.02 mm). Many models feature data-hold functions and metric/imperial switching, which enhances usability in mixed-unit environments.
- Pros: High accuracy, multi-functionality (can measure other components), easy-to-read LCD display.
- Cons: Requires battery; sensitive to dirt and moisture unless rated IP67 or higher.
2. Vernier and Dial Calipers
These analog versions offer mechanical reliability without electronics. While less intuitive than digital models, they remain popular in workshops where electronic interference or battery access is a concern.
- Pros: No power needed, durable construction, consistent readings over time.
- Cons: Require user interpretation (parallax error possible), slower readout compared to digital.

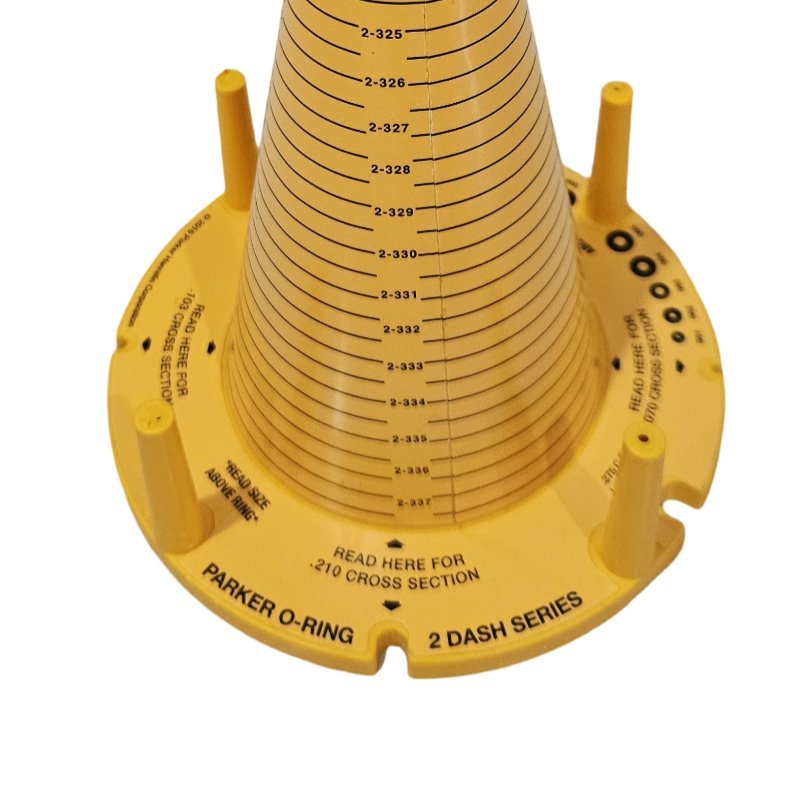

3. O Ring Sizing Kits (Template Gauges)
These consist of stamped metal or plastic plates with cutouts corresponding to standard o ring sizes. Users match the o ring to the closest fitting hole or slot.
- Pros: Inexpensive, portable, ideal for field use or quick checks.
- Cons: Limited precision, wear over time affects accuracy, only useful for standard sizes.
4. Groove Measurement Tools
Designed to assess the gland or groove where the o ring sits, these tools help verify proper housing dimensions before installing a new seal. Some integrate with calipers for comparative analysis.
- Pros: Prevents mismatched installations, supports engineering validation.
- Cons: Niche use case, not standalone for o ring ID/OD measurement.
5. Laser Micrometers and Optical Scanners (Industrial Grade)
Used primarily in manufacturing or QA labs, these non-contact systems scan o rings for full profile analysis, including ovality and surface defects.
- Pros: Extremely accurate, automated reporting, suitable for batch testing.
- Cons: Expensive ($1,000+), requires training and controlled environment.
Key Features and Specifications to Evaluate
To make an informed purchase, evaluate the following technical and functional attributes:
- Accuracy: Look for tools with stated tolerance within ±0.02 mm for critical applications.
- Measurement Range: Ensure the tool covers common o ring sizes (e.g., AS568 ranges from 1/32″ to 11″ ID).
- Unit Flexibility: Dual metric/imperial display improves compatibility with international standards.
- Durability: Stainless steel jaws resist corrosion; rubberized grips improve handling.
- Environmental Rating: For shop floor use, IP54 or better protects against dust and splashes.
- Ergonomics: Lightweight design and smooth thumbwheel operation reduce fatigue during repeated use.
- Data Output: USB or Bluetooth connectivity allows logging measurements for traceability—a must in regulated industries.
Pros and Cons: When to Use Which Tool
No single o ring measuring tool fits all scenarios. Understanding context helps avoid over- or under-investing.
Best For Professionals & Frequent Use: Digital calipers with calibration certificates. Ideal for machine shops, maintenance teams, and quality control. Justify cost through reduced rework and improved inventory accuracy.
Best For Occasional Use / Field Technicians: Sizing kits or compact dial calipers. Cost-effective and sufficient for infrequent tasks like appliance repair or small engine servicing.
Avoid If: You need sub-millimeter precision but opt for low-cost plastic templates. Also, avoid uncalibrated digital tools from unknown brands—many lack NIST-traceable documentation.
How to Choose an O Ring Measuring Tool
Follow this step-by-step checklist to select the optimal tool:
- Assess Your Usage Frequency: Daily use justifies investment in a rugged digital model. Monthly use may only require a mid-tier dial caliper.
- Determine Required Precision: Hydraulic systems often demand ±0.05 mm or better. General-purpose seals may tolerate ±0.1 mm.
- Check Compatibility with Standards: Confirm the tool supports AS568, ISO 3601, or JIS B 2401 depending on your region and industry.
- Verify Calibration Options: Reputable suppliers offer recalibration services. Check availability before purchase.
- Evaluate Supplier Reputation: Stick to known manufacturers like Mitutoyo, Starrett, or Brown & Sharpe for reliability.
- Beware of Red Flags: Avoid tools with vague specs, no serial number, or claims of “laser precision” at very low prices—these are often misleading.
If purchasing for a team, consider bundled kits that include protective cases, extra batteries, and reference charts.
Price & Market Insights
Pricing varies significantly by type and capability:
- $5–$15: Basic o ring sizing templates (plastic/metal). Suitable for home garages.
- $30–$80: Entry-level digital calipers; good balance of price and function.
- $80–$150: Mid-range digital or high-quality analog calipers with better build and accuracy.
- $150–$500+: Certified precision instruments with calibration reports and extended warranties.
Value isn’t always tied to price. Some affordable digital calipers perform well if regularly zero-checked and maintained. However, for mission-critical operations, paying extra for certified accuracy pays off in reduced risk.
| Tool Type | Avg Price | Accuracy | Best Use Case |
|---|---|---|---|
| Digital Caliper | $40–$120 | ±0.02 mm | General workshop, frequent use |
| Dial Caliper | $50–$90 | ±0.05 mm | Mechanical shops, no-electronics zones |
| Sizing Kit | $8–$20 | ±0.2 mm | Quick field checks, hobbyists |
| Laser Micrometer | $1,000+ | ±0.001 mm | Manufacturing QA, R&D |
Top-Seller & Competitive Analysis
Among top-selling products, the Mitutoyo 500-196-30 digital caliper stands out for its IP54 rating, carbide-tipped jaws, and lifetime accuracy guarantee. It’s widely recommended in professional forums for o ring measurement due to consistent repeatability.
The iGaging Digital Caliper is a budget favorite, offering decent accuracy at around $40. However, some users report drift after months of use unless recalibrated.
For niche applications, the O-Ring Store’s Sizing Jig kit provides a clever template solution with adjustable arms for stretched o rings—useful when dealing with compressed seals still installed in housings.
Customer Feedback Synthesis
Analysis of verified buyer reviews reveals recurring themes:
- Positive Comments: Users appreciate clear displays, sturdy builds, and inclusion of o ring size conversion charts. Digital models with hold buttons receive praise for one-handed operation.
- Common Complaints: Battery life issues, inconsistent zero points after drops, and inaccurate readings in humid environments are frequently cited—especially with lower-priced digital calipers.
- Unmet Expectations: Some buyers expect instant identification via smartphone apps, which current tools don’t universally support. Others overlook the need for cleaning o rings before measurement, leading to false readings.
Overall satisfaction correlates strongly with realistic expectations and adherence to proper measurement technique.
Sourcing & Supplier Tips
When sourcing o ring measuring tools:
- Buy from authorized distributors to ensure authenticity and warranty coverage.
- For bulk purchases (e.g., equipping a fleet maintenance team), request calibration certificates per unit.
- Consider reseller programs if you operate a parts supply business—some brands offer co-branded kits.
- Always inspect incoming tools for damage and test against known o ring sizes before deployment.
- Verify return policies in case of defective units or incorrect shipments.
Maintenance, Safety & Legal Considerations
Proper care extends tool life and ensures accuracy:
- Clean jaws regularly with a soft cloth; avoid solvents that degrade plastic components.
- Store in a dry case away from magnetic fields or extreme temperatures.
- Zero the caliper before each use session to detect drift.
- In regulated industries (e.g., aviation, pharmaceuticals), maintain logs of calibration dates and responsible personnel.
- While no specific legal regulations govern general o ring measurement, compliance with ISO 9001 or AS9100 quality systems may require documented metrology procedures.
Conclusion
Choosing the right o ring measuring tool involves balancing accuracy, durability, and intended use. For most users, a high-quality digital caliper offers the best mix of precision and flexibility. Hobbyists and occasional users may find value in affordable sizing kits. Always verify specifications, buy from reputable sources, and maintain your tool properly to ensure long-term reliability. By investing in the correct measuring solution, you enhance system integrity, reduce waste, and improve operational efficiency.
FAQs
Q: Can I use regular calipers to measure o rings?
A: Yes, but ensure they have fine enough resolution (at least 0.01 mm) and clean, flat jaws to avoid compressing the elastomer.
Q: How do I measure a stretched o ring accurately?
A: Allow the o ring to relax for 24 hours before measuring. If immediate measurement is necessary, use groove dimensions instead of free-state o ring size.
Q: What is the most common mistake when using an o ring measuring tool?
A: Over-tightening the caliper jaws, which compresses the o ring and results in falsely low cross-section readings.
Q: Are there smartphone apps that replace physical o ring measuring tools?
A: Some augmented reality apps claim to estimate sizes, but none match the accuracy of physical tools. Relying solely on apps is not recommended for critical applications.
Q: Do o ring measuring tools require calibration?
A: Yes, especially in professional settings. Digital calipers should be checked monthly; formal recalibration every 6–12 months ensures ongoing accuracy.
