When selecting a laser welding cell 6 axis system, prioritize precision, integration flexibility, and safety compliance—ideal for high-volume automotive or aerospace manufacturing where complex joint geometries require full rotational control 1. The best systems combine a high-power fiber laser (1–3 kW), a fully enclosed Class 1 safety enclosure, and seamless compatibility with industrial robots like Fanuc or KUKA. For most production environments, a modular turnkey cell with fume extraction, collision detection, and programmable path optimization delivers the strongest return on investment. Avoid under-specified units lacking interlock systems or service support.
About Laser Welding Cell 6 Axis

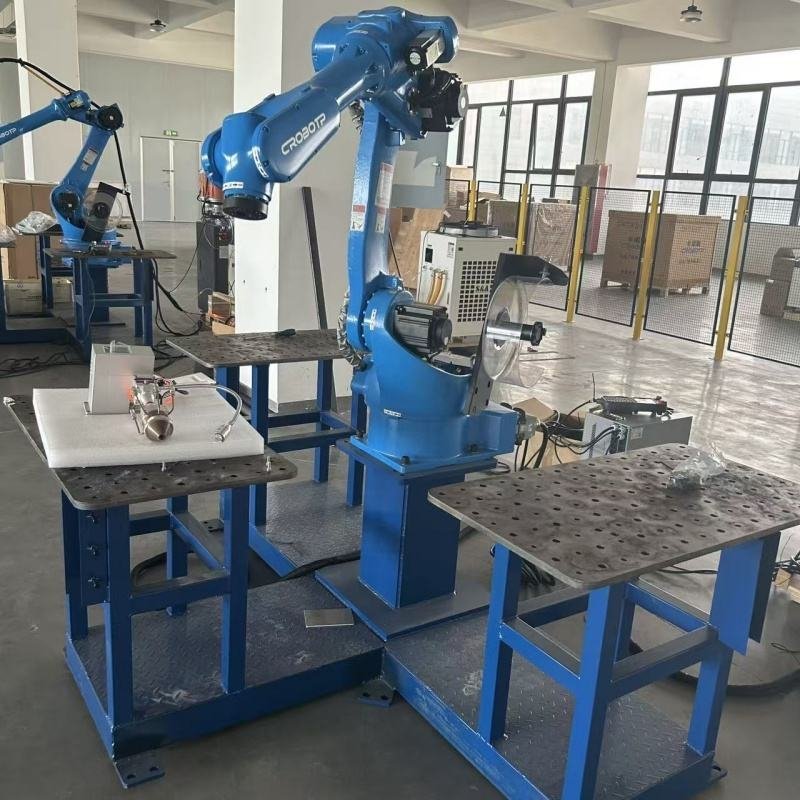

A laser welding cell 6 axis refers to an automated manufacturing workstation that integrates a six-axis robotic arm with a high-precision laser welding source inside a controlled environment. These cells are engineered to perform intricate welds on three-dimensional parts by allowing the robot complete freedom of movement—pitch, yaw, roll, and linear positioning—enabling access to hard-to-reach joints with consistent accuracy.
Typically used in industries such as automotive, aerospace, medical device manufacturing, and heavy machinery, these systems replace traditional manual or fixed-beam welding setups. The six-axis robot manipulates the laser head around the workpiece, which remains stationary or rotates on a positioner, depending on configuration. This setup is especially effective for welding curved seams, T-joints, lap joints, and fillet welds in materials like stainless steel, aluminum, and high-strength alloys.
The ‘cell’ component denotes a fully enclosed workspace designed to meet safety standards (such as ANSI Z535 and ISO 13849), often including light curtains, emergency stops, interlocked doors, and fume extraction systems. Integration with factory networks via Ethernet/IP or Profinet enables remote monitoring and predictive maintenance.
Why Laser Welding Cell 6 Axis Is Gaining Popularity
The demand for laser welding cell 6 axis solutions has surged due to rising needs for automation, repeatability, and quality control in modern manufacturing. Unlike conventional arc welding, laser welding produces narrow, deep-penetration welds with minimal heat input, reducing part distortion and post-weld finishing time.
Industries facing labor shortages and increasing production volumes are turning to robotic laser cells to maintain throughput without sacrificing weld integrity. Additionally, advancements in fiber laser technology have made high-power sources more reliable and energy-efficient, lowering total cost of ownership.
Another driver is traceability and process validation. Many 6-axis laser welding cells now come equipped with real-time monitoring tools such as seam tracking sensors, melt pool cameras, and power feedback loops, ensuring each weld meets exact specifications. This level of data collection supports compliance in regulated sectors like aerospace (AS9100) and medical devices (ISO 13485).
Types and Variants
There are several configurations of laser welding cell 6 axis systems, each suited to different applications and production scales:
1. Integrated Turnkey Cells
- Pros: Pre-engineered, factory-tested, include safety enclosures, PLC controls, and user interface; faster deployment.
- Cons: Higher initial cost; less customizable; may require dedicated floor space.
Ideal for companies seeking plug-and-play automation with minimal integration effort.
2. Semi-Custom Robotic Cells
- Pros: Can be tailored to existing production lines; compatible with various robot brands (e.g., ABB, Yaskawa); scalable.
- Cons: Longer commissioning time; requires in-house engineering expertise or third-party integrator.
Suitable for mid-sized manufacturers expanding automation incrementally.
3. Compact Benchtop Cells
- Pros: Space-saving; lower cost; ideal for R&D or low-volume precision welding (e.g., sensors, battery components).
- Cons: Limited payload and reach; not suitable for large assemblies.
Often used in prototyping labs or specialized electronics manufacturing.
4. Multi-Station Indexing Cells
- Pros: High uptime—while one station welds, another loads/unloads; maximizes robot utilization.
- Cons: Complex programming; higher maintenance demands; significant footprint.
Best for high-volume production runs, such as exhaust systems or transmission housings.
Key Features and Specifications to Evaluate
When researching how to choose a laser welding cell 6 axis, consider these critical technical and operational parameters:
- Laser Type and Power: Fiber lasers (1–3 kW) dominate due to efficiency and beam quality. Verify wavelength (typically 1070 nm) and beam parameter product (BPP) for focusability.
- Robot Reach and Payload: Match the robot’s working envelope to your largest part. Common models offer 1.5–2.5 m reach with 6–20 kg payload 2.
- Welding Speed and Precision: Look for travel speeds up to 100 mm/s and repeatability within ±0.02 mm.
- Safety Enclosure Rating: Must comply with Class 1 laser safety per IEC 60825-1. Ensure interlocks disable laser upon door opening.
- Process Monitoring: Systems with coaxial seam tracking, back-reflection protection, and closed-loop power control reduce scrap rates.
- Software Interface: User-friendly HMI with offline programming (using software like RobotStudio or KUKA.Sim) reduces downtime during changeovers.
- Integration Capability: Support for common fieldbuses (EtherCAT, DeviceNet) ensures compatibility with MES/SCADA systems.
Pros and Cons
Advantages
- Superior weld quality with deep penetration and low spatter
- High degree of automation reduces labor costs
- Flexible programming accommodates product variants
- Reduced thermal distortion compared to MIG/TIG welding
- Supports lightweight material joining (e.g., Al to steel in EVs)
Limitations
- High upfront investment ($100,000–$300,000+)
- Sensitive to joint fit-up and surface contamination
- Requires skilled technicians for programming and maintenance
- Not ideal for very thick sections (>10 mm) without hybrid processes
- Reflective materials (copper, brass) pose challenges without proper parameter tuning
This makes the 6-axis laser welding cell best suited for medium-thickness, clean, precisely machined components in repetitive production settings.
How to Choose a Laser Welding Cell 6 Axis
Follow this step-by-step guide when evaluating options for a laser welding cell 6 axis:
- Define Your Application: Identify material types, thickness range, weld length, and geometry. Are you welding cylindrical shafts or complex brackets?
- Determine Throughput Needs: Calculate required cycle time. If >20 parts/hour, consider dual-station cells.
- Select Laser Source: Choose between continuous wave (CW) for deep welds or pulsed lasers for thin sheets. Confirm cooling requirements (chiller capacity).
- Evaluate Robot Compatibility: Ensure controller synchronization between robot and laser generator. Prefer OEM-integrated solutions when possible.
- Verify Safety Compliance: Check if the cell meets local regulations (OSHA, CE, UL). Request a risk assessment report from the supplier.
- Assess Service & Training: Inquire about technician training, spare parts availability, and response time for support.
- Request a Sample Weld Test: Provide actual parts for demonstration. Evaluate bead consistency, penetration, and porosity via cross-section analysis.
- Review Total Cost of Ownership: Include installation, utilities, consumables (nozzles, lenses), maintenance contracts, and floor space.
Red flags to avoid: Vendors who cannot provide reference sites, lack documentation, or resist third-party inspections. Also, be cautious of imported systems with unclear warranty terms or non-standard electrical voltages.
Price & Market Insights
Pricing varies significantly based on configuration:
- Benchtop models: $60,000–$100,000
- Standard single-station cells: $120,000–$200,000
- Multi-station or high-power (>2 kW) systems: $200,000–$350,000+
European and Japanese-built systems tend to command premium prices but often offer superior build quality and long-term reliability. North American integrators may provide better after-sales service but at higher labor markups. Chinese-made systems have improved in recent years but vary widely in consistency—due diligence is essential.
For best value, consider refurbished or certified pre-owned cells from reputable suppliers, which can save 20–40% with minimal risk if properly inspected.
| Model Type | Laser Power | Robot Brand | Approx. Price | Best Use Case |
|---|---|---|---|---|
| Turnkey Cell A | 2 kW Fiber | Fanuc ARC Mate | $185,000 | Automotive subframes |
| Compact Cell B | 750 W Pulsed | KUKA KR 6 | $88,000 | Medical instrument welding |
| Indexing Cell C | 3 kW CW | Yaskawa MH24 | $290,000 | Aerospace manifold production |
Customer Feedback Synthesis
Analysis of buyer reviews and industry forums reveals consistent themes:
Common Praises:
Users appreciate the precision and consistency of welds, particularly in reducing rework. Many highlight ease of integration with existing ERP systems and robust safety features. Long-term reliability of major-brand robots (Fanuc, KUKA) receives frequent commendation.
Frequent Complaints:
Some buyers report inadequate technical documentation, especially with non-OEM systems. Others note delays in spare parts delivery from overseas suppliers. A recurring issue involves insufficient training—operators struggle with path optimization without expert assistance. A few users experienced premature lens degradation due to poor fume extraction design.
Sourcing & Supplier Tips
When sourcing a laser welding cell 6 axis, consider both direct manufacturers and system integrators. Leading OEMs include TRUMPF, IPG Photonics, and Coherent, while integrators like Universal Robotics Group or ATS Automation customize turnkey solutions.
For bulk purchases or private labeling, negotiate service agreements upfront. Always request references and visit operational sites if possible. Inspect incoming units for CE/UL certification labels, proper grounding, and cable management. Conduct a functional test under load before final acceptance.
If importing, verify voltage compatibility (e.g., 480V 3-phase in North America vs. 400V in Europe) and ensure software supports English-language interfaces.
Maintenance, Safety & Legal Considerations
Regular maintenance is crucial: inspect optical components weekly, clean protective windows monthly, and recalibrate the robot annually. Use only manufacturer-approved consumables to prevent damage.
Safety protocols must include:
- Laser safety officer (LSO) designation
- Proper PPE (laser-safe goggles rated for 1070 nm)
- Controlled access zones
- Emergency stop accessibility
Legally, the installation must comply with OSHA 29 CFR 1910.133 (eye protection), ANSI Z136.1 (laser safety), and machine guarding standards. Documentation should include a Lockout/Tagout (LOTO) procedure and risk assessment.
Conclusion
Selecting the right laser welding cell 6 axis requires balancing performance, safety, and long-term support. For high-mix, high-precision environments, a fully integrated turnkey solution with real-time monitoring offers the best ROI. Prioritize vendors with strong service networks and proven track records. Always validate claims through sample testing and site visits. With proper selection and care, a 6-axis laser welding cell can deliver decades of reliable, high-quality production.
FAQs
What materials can a laser welding cell 6 axis weld?
Most effectively welds steel, stainless steel, aluminum, and titanium. Copper and brass are possible but require specialized parameters to manage reflectivity.
How much floor space does a typical cell require?
A standard single-station cell needs approximately 4m x 6m, including operator access and utility connections. Compact models can fit in 3m x 4m areas.
Can a 6-axis laser welding cell be operated without a safety enclosure?
No. Open operation violates laser safety regulations. All industrial laser systems above Class 1 must be enclosed with interlocks.
Is it possible to retrofit an existing robot for laser welding?
Yes, but only if the robot has sufficient payload, reach, and communication ports. Retrofitting requires adding laser safety systems and process integration—consult a certified integrator.
What is the average lifespan of a fiber laser source?
Modern fiber lasers typically last 100,000 hours (over 10 years of continuous use) with proper cooling and maintenance.
