When selecting a helix antenna L1 L2 L5 for high-precision GNSS applications, prioritize models that support full-band reception across GPS, GLONASS, Galileo, and BeiDou with strong axial ratio performance and stable phase center characteristics. The best helix antenna L1 L2 L5 units offer multi-frequency coverage (especially L1, L2, and L5 bands), circular polarization, high gain (typically 3–6 dBi), and ruggedized weatherproof housing for outdoor use. If you need reliable sub-meter or centimeter-level positioning for surveying, UAV navigation, or precision agriculture, a dual- or triple-feed helix design is often superior due to better multipath rejection and signal consistency 1. Avoid antennas without verified radiation patterns or those lacking shielding against EMI.

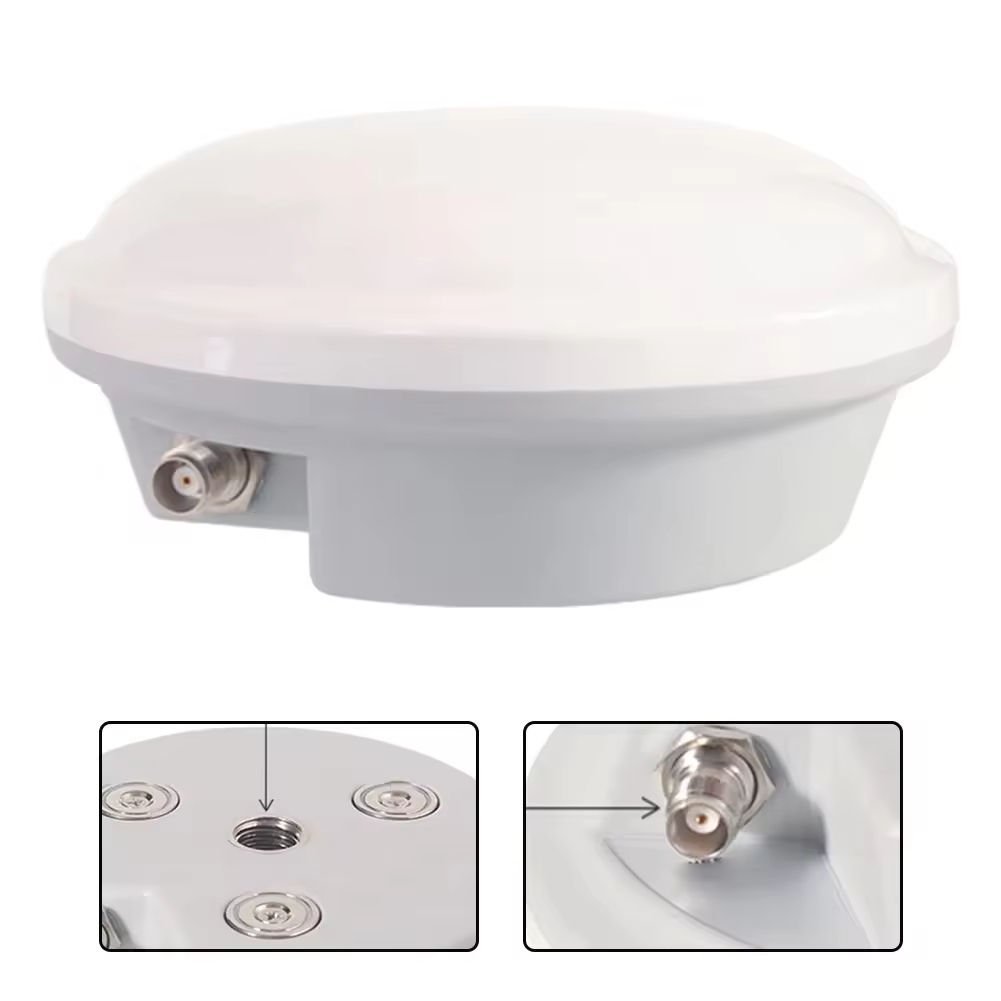

About Helix Antenna L1 L2 L5
A helix antenna L1 L2 L5 is a specialized type of directional radio antenna designed to receive Global Navigation Satellite System (GNSS) signals on multiple frequencies—specifically the L1 (1575.42 MHz), L2 (1227.60 MHz), and L5 (1176.45 MHz) bands used by modern satellite constellations such as GPS, Galileo, and QZSS. These antennas are constructed using a spiral-shaped conductive element wound around a central support structure, typically enclosed in a dielectric radome. Their geometry enables circular polarization, which improves signal capture from satellites at various elevations and reduces multipath interference caused by reflections off buildings or terrain.
This makes them ideal for applications requiring high positional accuracy, including geodetic surveying, drone-based mapping, autonomous vehicle testing, and scientific monitoring systems. Unlike patch antennas, helical designs often exhibit broader bandwidth and better axial ratio stability over wide angles, contributing to consistent carrier-phase measurements needed in RTK (Real-Time Kinematic) and PPP (Precise Point Positioning) workflows.
Why Helix Antenna L1 L2 L5 Is Gaining Popularity
The growing demand for precise location data has driven increased adoption of multi-frequency GNSS technology. As satellite networks expand their use of L5—a higher-power, less congested band with improved resistance to interference—users are upgrading from single-band to multi-band receivers. To fully leverage these advancements, compatible antennas must also support all relevant frequencies. This shift explains why the helix antenna L1 L2 L5 configuration is becoming standard in professional-grade equipment.
Additionally, industries like precision agriculture, construction, and environmental monitoring now rely on real-time kinematic positioning for efficiency and automation. A well-designed helix antenna enhances system reliability under canopy cover, urban canyons, and other challenging RF environments. Its ability to maintain lock on weak signals while rejecting noise gives it an edge over simpler omnidirectional antennas. Furthermore, open-source projects and low-cost GNSS modules have made advanced positioning accessible beyond traditional defense or aerospace sectors, increasing interest in optimized antenna solutions.
Types and Variants
Helix antennas come in several configurations depending on feed design, number of turns, and integration level:
- Single-Feed Helix: Uses one coaxial connection point; commonly tuned for L1 only or broad L1/L2 coverage. Less expensive but may lack optimal performance on L5.
Pros: Cost-effective, compact.
Cons: Limited bandwidth, lower gain on newer bands like L5. - Dual-Feed Helix: Incorporates two separate feed points for independent tuning of different frequency ranges (e.g., L1 vs. L2/L5). Offers improved isolation between bands.
Pros: Better multipath suppression, enhanced axial ratio control.
Cons: Requires dual-input receiver, more complex installation. - Triple-Band Monofilar Helix: Single feed but engineered to resonate efficiently across L1, L2, and L5 simultaneously. Often uses impedance matching networks.
Pros: Simpler cabling, good wideband response.
Cons: Performance trade-offs at band edges; quality varies significantly by manufacturer. - Quadrifilar Helix (QFH): Features four spiraled elements, usually with phasing harnesses. Excellent hemispherical coverage and robust circular polarization.
Pros: Superior sky-view sensitivity, excellent for mobile platforms.
Cons: Larger size, higher cost, sensitive to manufacturing tolerances.
Some variants include integrated low-noise amplifiers (LNAs), though external preamps offer more flexibility in gain adjustment and filtering.
Key Features and Specifications to Evaluate
Choosing the right helix antenna L1 L2 L5 requires careful evaluation of technical parameters:
- Frequency Coverage: Confirm the antenna supports not just L1, L2, and L5, but also corresponding frequencies from GLONASS (G1, G2, G3), Galileo (E1, E5a, E5b), and BeiDou (B1, B2, B2a). Full constellation compatibility ensures maximum satellite visibility.
- Gain Pattern: Look for consistent gain across elevation angles (ideally 0° to 85°). High zenith gain (>5 dBi) helps in open-sky conditions, while moderate side-lobe suppression minimizes ground reflections.
- Axial Ratio: Should be ≤3 dB across all target bands. Lower values indicate purer circular polarization, improving signal fidelity and reducing multipath errors.
- Phase Center Stability: Critical for RTK and PPP. Seek antennas with documented phase center variation (PCV) data, preferably calibrated per IGS standards 2.
- Polarization: Must be right-hand circularly polarized (RHCP) to match GNSS signal transmission.
- Impedance & VSWR: Standard is 50 Ω. Voltage Standing Wave Ratio (VSWR) should remain below 2:1 across operating bands to minimize reflected power.
- Environmental Rating: IP67 or higher is recommended for outdoor deployment. UV-resistant radomes prevent degradation over time.
- Mounting Options: Magnetic base, threaded pole mount, or flange. Ensure mechanical compatibility with your setup.
Pros and Cons
Advantages:
– Superior multipath rejection compared to patch antennas
– Wider beamwidth and better low-elevation tracking
– High gain with clean radiation pattern
– Durable construction suitable for field use
– Supports high-accuracy differential GNSS techniques
Disadvantages:
– Larger physical footprint than flat patch antennas
– More sensitive to nearby metallic objects and improper grounding
– Higher wind load when mounted externally
– May require precise orientation (especially quadrifilar types)
– Generally more expensive than basic GNSS antennas
Use a helix antenna L1 L2 L5 if you need consistent, high-fidelity GNSS data in dynamic or obstructed environments. Avoid it if space is severely limited or if only coarse positioning (<1 m) is required.
How to Choose Helix Antenna L1 L2 L5
Follow this step-by-step guide to make an informed purchase:
- Define Your Use Case: Are you conducting static surveys, mobile mapping, or UAV navigation? High-mobility applications benefit from wider beamwidths and faster signal reacquisition.
- Verify Frequency Support: Check product datasheets for confirmed operation on L1, L2, and L5. Don’t assume compatibility based on marketing terms like “multi-band.”
- Review Radiation Patterns: Request or search for published gain and axial ratio plots. Poor side-lobe control increases vulnerability to reflected signals.
- Check Phase Center Data: For scientific or survey work, choose antennas listed in IGS’s ANTEX file or with published PCV tables.
- Evaluate Build Quality: Look for sealed connectors, stainless steel hardware, and impact-resistant radomes.
- Assess Integration Needs: Will you connect to a dual-channel receiver? Does your system support active antennas with built-in LNAs?
- Consider Mounting Environment: Avoid placing near large metal surfaces or electronic noise sources. Ground plane requirements vary—some helices perform poorly without proper counterpoise.
- Beware of Unverified Claims: Avoid vendors who don’t provide test reports or measurable specs. Be cautious of exaggerated gain figures or vague descriptions like “high precision” without supporting data.
Price & Market Insights
Pricing for helix antenna L1 L2 L5 models varies widely:
- Budget Tier ($80–$180): Entry-level consumer or prosumer units. Often lack detailed performance documentation. Suitable for hobbyist drones or light GIS work.
- Mid-Range ($180–$400): Professional-grade antennas from established brands. Typically include measured radiation patterns, IP67 rating, and decent phase center stability. Ideal for most commercial survey and UAV applications.
- Premium Tier ($400–$900+): Geodetic-class antennas with IGS certification, ultra-stable phase centers, and rigorous calibration. Used in national reference stations and research projects.
Value isn’t always tied to price—some mid-tier models outperform pricier ones in specific scenarios. Always compare specifications rather than relying solely on brand reputation. Watch for bundled deals with cables or mounting kits, which can reduce total cost.
| Model Type | Freq. Support | Gain (Typ.) | IP Rating | Approx. Price |
|---|---|---|---|---|
| Basic Monofilar | L1 + L2 | 4 dBi | IP65 | $90 |
| Triple-Band Helix | L1/L2/L5 | 5 dBi | IP67 | $220 |
| Dual-Feed Helix | L1 + (L2/L5) | 6 dBi | IP68 | $350 |
| Geodetic-Quality QFH | Full Multi-GNSS | 5.5 dBi | IP69K | $650 |
Customer Feedback Synthesis
Analysis of user reviews across forums, retail sites, and technical communities reveals recurring themes:
Common Praises:
– Significant improvement in fix stability when switching from patch to helix
– Reliable performance in forested or urban areas
– Durable build quality in harsh weather
– Clear signal acquisition even during high-dynamic maneuvers
Frequent Complaints:
– Inconsistent performance from unbranded suppliers lacking proper testing
– Poor documentation or missing radiation pattern charts
– Difficulties achieving optimal grounding on vehicles or poles
– Overstated L5 sensitivity in budget models
Users emphasize the importance of purchasing from reputable vendors who provide verifiable test results and responsive technical support.
Sourcing & Supplier Tips
When sourcing a helix antenna L1 L2 L5:
- Purchase from authorized distributors or directly from manufacturers with proven track records (e.g., Taoglas, NovAtel, Trimble, or Antenova).
- For bulk orders, request sample units for lab or field validation before committing.
- Ask for S-parameter files, ANSYS simulation data, or anechoic chamber test reports where available.
- If reselling or integrating into products, confirm warranty terms and return policies.
- Avoid generic eBay or AliExpress listings unless backed by credible third-party reviews or certifications.
Maintenance, Safety & Legal Considerations
Maintain peak performance by periodically inspecting the radome for cracks, cleaning the surface, and checking cable integrity. Replace damaged coaxial lines promptly to avoid signal loss. Ensure the antenna is properly grounded to prevent static buildup and lightning-induced surges—especially important in exposed locations.
No special licenses are required to operate passive GNSS antennas in most countries, but verify local regulations regarding RF emissions if using active components (e.g., LNAs). Some regions restrict modifications to certified devices. Also, respect privacy laws when collecting geospatial data in populated areas.
Conclusion
The helix antenna L1 L2 L5 offers unmatched advantages for users demanding high-precision, multi-frequency GNSS performance. By focusing on verified frequency coverage, axial ratio, phase center stability, and environmental durability, you can select a model tailored to your operational needs. While more costly and bulky than alternatives, its superior signal handling justifies investment in professional applications. Prioritize transparency in specifications and vendor credibility over price alone. Whether for surveying, drone navigation, or scientific research, a well-chosen helix antenna significantly enhances positioning accuracy and reliability.
FAQs
What does L1, L2, and L5 mean in GNSS antennas?
These refer to specific frequency bands transmitted by global navigation satellites. L1 (1575.42 MHz) is the original GPS signal; L2 (1227.60 MHz) enables dual-frequency correction; L5 (1176.45 MHz) is a newer, higher-power safety-of-life signal with better penetration and accuracy.
Can I use a helix antenna L1 L2 L5 with any GNSS receiver?
Only if the receiver supports multi-frequency input and matches the antenna’s connector type and impedance (usually SMA or TNC, 50 Ω). Active antennas may require DC bias power—verify compatibility with your device.
Do helix antennas need a ground plane?
Most helix antennas do not require a large ground plane unlike monopoles, but performance can degrade if mounted too close to conductive surfaces. Follow manufacturer guidelines for clearance and orientation.
How much gain should a good helix antenna L1 L2 L5 have?
Typical gain ranges from 3 to 6 dBi. Higher gain improves signal strength but narrows the beam slightly. Balance gain with beamwidth based on your environment.
Are there waterproof helix antennas for outdoor use?
Yes, many models feature IP67 or higher ratings, meaning they’re dust-tight and withstand temporary immersion. Look for sealed housings and UV-resistant materials for long-term deployment.
