When choosing the best external SATA IDE HDD docking station, prioritize models that support both 2.5″ and 3.5″ drives, offer USB 3.0 or higher connectivity, and include automatic voltage detection to prevent drive damage. A reliable dual-bay unit with UASP support and independent cloning functionality—such as those from Sabrent or StarTech—delivers optimal performance for data migration, backup, and cross-platform recovery tasks 1. If you frequently work with legacy IDE (PATA) and modern SATA drives, ensure the model explicitly supports both via a mode switch or adapter compatibility.
About External SATA IDE HDD Docking Station

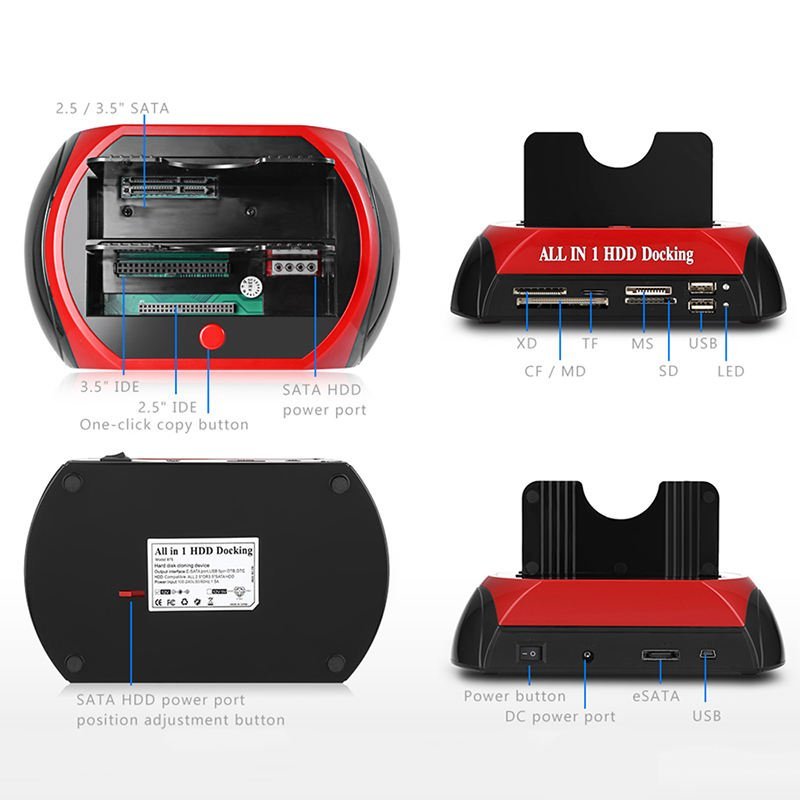

An external SATA IDE HDD docking station is a hardware device that allows users to connect 2.5-inch or 3.5-inch SATA or IDE (Parallel ATA) hard disk drives (HDDs) or solid-state drives (SSDs) directly to a computer via USB without installing them internally. These docks serve as intermediaries between bare drives and host systems, enabling quick access for data transfer, disk cloning, diagnostics, or recovery.
Common use cases include IT professionals recovering data from failed laptops, photographers transferring large media files from old drives, system builders testing multiple SSDs, and home users upgrading their computers. Unlike enclosures, docking stations typically feature interchangeable bays that accommodate different drive sizes and interfaces without requiring screws or permanent modifications.
Why External SATA IDE HDD Docking Stations Are Gaining Popularity
The growing need for flexible, plug-and-play storage solutions has fueled demand for versatile docking stations. As older machines with IDE drives reach end-of-life, users seek efficient ways to extract data before disposal. Simultaneously, SATA remains widely used in consumer and enterprise environments, making hybrid support increasingly valuable.
Another driver is the rise of remote work and digital archiving. Users managing personal backups or small business records benefit from fast, tool-free access to multiple drives. Additionally, environmental awareness promotes reuse of functional drives from decommissioned devices, reducing e-waste 2.
Types and Variants
Docking stations vary significantly in design, compatibility, and functionality. Understanding these types helps match your needs with the right product.
Single-Bay vs. Dual-Bay Models
- Single-bay: Compact and affordable; ideal for occasional use. Limited to one drive at a time. Best for basic file retrieval.
- Dual-bay: Supports two drives simultaneously. Enables direct cloning (drive-to-drive copy without PC involvement), faster comparisons, and RAID configurations on select models. More expensive but better long-term value.
SATA-Only vs. SATA/IDE Combo Units
- SATA-only: Cheaper and often faster, supporting only Serial ATA drives (common post-2005). Lacks backward compatibility with older IDE/PATA drives.
- SATA + IDE combo: Includes switchable interface or internal circuitry to handle both standards. Essential if working with pre-2005 desktops or industrial equipment using PATA drives.
USB 3.0 vs. USB-C / USB 3.2 Gen 2
- USB 3.0 (5 Gbps): Widely compatible and sufficient for most HDD speeds. Found in budget and mid-tier models.
- USB-C with USB 3.2 Gen 2 (10 Gbps): Doubles bandwidth, beneficial when using high-speed NVMe-compatible adapters or future-proofing. Requires matching port on host machine.
Cloning-Capable vs. Non-Cloning
- Non-cloning: Basic read/write access through computer only.
- Cloning-enabled: Allows copying one drive to another via front-panel button. Useful for OS migration or drive duplication. Ensure it supports source/target size flexibility (e.g., smaller to larger SSD).
Key Features and Specifications to Evaluate
Selecting the right model involves assessing several technical and practical factors.
Drive Compatibility
Verify support for:
- Form factors: 2.5″ and 3.5″ drives
- Interface types: SATA I/II/III and IDE (40-pin or 44-pin)
- Capacities: Some older docks cap at 2TB; modern ones support 16TB+ drives
Check manufacturer specs carefully—some claim “IDE support” but require optional adapters.
Connectivity and Speed
Look for USB 3.0 or higher. Theoretical maximums matter less than real-world throughput, which depends on protocol efficiency. UASP (USB Attached SCSI Protocol) support can improve speeds by up to 70% compared to traditional BOT (Bulk-Only Transport), especially with SSDs 3.
Power Delivery and Safety
3.5″ drives require external power. Confirm the included adapter provides adequate voltage (typically 12V) and current (2A or more). Overloaded power supplies cause instability or corruption. Auto-voltage detection prevents damage when switching between drive types.
Cooling and Build Quality
Prolonged use generates heat. Units with built-in cooling fans or aluminum casings dissipate heat more effectively. Avoid plastic-heavy designs during intensive tasks.
OS Compatibility
Most work across Windows, macOS, and Linux without drivers. However, formatting differences (NTFS vs. APFS vs. ext4) may affect write access. Always verify cross-platform compatibility if sharing files between ecosystems.
Pros and Cons
Advantages
- Tool-free installation saves time and reduces risk of physical damage.
- Supports rapid swapping of drives for troubleshooting or comparison.
- Cost-effective alternative to buying multiple external enclosures.
- Enables secure wiping and forensic analysis when paired with software tools.
- Dual-bay cloning streamlines system upgrades.
Limitations
- Not all models reliably support SMR (Shingled Magnetic Recording) drives due to caching issues.
- IDE mode may run at reduced speed (UDMA 4 or lower), limiting performance.
- Bulkier than portable SSDs; requires desk space and power outlet.
- Risk of firmware bugs affecting drive recognition—especially with third-party brands.
- No protection against logical corruption; always back up critical data first.
How to Choose an External SATA IDE HDD Docking Station
Follow this step-by-step guide to make an informed decision:
- Assess Your Drive Types: List whether you primarily use SATA, IDE, or both. If unsure, inspect connector shapes: SATA uses thin L-shaped connectors; IDE uses wide gray ribbons.
- Determine Bay Needs: For single-drive access, a single-bay unit suffices. For cloning or side-by-side analysis, choose dual-bay.
- Check Host Interface: Match dock output (USB-A, USB-C) to available ports. Use USB-C if planning future upgrades.
- Confirm Power Requirements: Ensure the adapter meets specifications for 3.5″ drives. Consider spare adapters for fieldwork.
- Evaluate Cloning Needs: If migrating operating systems or duplicating drives, pick a model with one-touch cloning and SMART data preservation.
- Review Build and Cooling: Prefer metal housing with ventilation or fan for sustained transfers over 30 minutes.
- Test Return Policy: Purchase from retailers offering at least 30-day returns in case of compatibility issues.
- Avoid Red Flags: Steer clear of units lacking brand documentation, missing safety certifications (CE, FCC), or priced significantly below market average.
Price & Market Insights
Pricing varies based on features:
- $20–$40: Single-bay, SATA-only, no cloning. Suitable for light home use.
- $40–$70: Dual-bay, SATA/IDE combo, USB 3.0, basic cloning. Represents best value for most users.
- $70–$120: High-end dual-bay with USB-C, UASP, advanced cloning, and enhanced cooling. Ideal for professionals.
Brands like Sabrent, StarTech, and ORICO dominate reliability rankings. Generic models may save money but often lack consistent firmware updates or customer service.
| Model | Max Interface | IDE Support | Cloning | Price Range |
|---|---|---|---|---|
| Sabrent EC-DSC7 | USB 3.0 (5Gbps) | Yes (switchable) | Yes | $55–$65 |
| StarTech.com SDOCK2U33 | USB 3.0 | Yes (via adapter) | No | $60–$70 |
| ORICO 9128SS3 | USB 3.0 | Yes (built-in) | Yes | $45–$55 |
| UGREEN USB C Docking Station | USB 3.2 Gen 2 (10Gbps) | No | Yes | $80–$95 |
Customer Feedback Synthesis
Analysis of verified buyer reviews reveals common themes:
Frequent Praises
- “Saved hours recovering photos from my old laptop drive.”
- “Cloning my old HDD to a new SSD took under 20 minutes.”
- “Sturdy build and clear LED indicators help monitor activity.”
- “Works instantly on Windows 11 and Mac M1 without drivers.”
Common Complaints
- “Stopped recognizing drives after three months—suspect poor solder joints.”
- “IDE mode didn’t detect my Maxtor drive even though it’s supposed to be compatible.”
- “Fan noise is loud during extended use.”
- “Power adapter failed within six weeks.”
Reliability concerns are more frequent with unbranded units sold through third-party marketplaces.
Sourcing & Supplier Tips
For individual buyers, purchase from authorized dealers or well-reviewed online stores like Amazon, Newegg, or directly from manufacturer websites. This ensures genuine products and access to warranty support.
For bulk procurement (e.g., IT departments, repair shops), consider contacting distributors such as Tech Data or Ingram Micro for volume pricing. Request sample units to test compatibility with your typical drive inventory before committing.
If reselling, confirm whether the supplier allows drop-shipping and provides marketing assets. Also, check regional compliance requirements (e.g., RoHS in EU, ENERGY STAR in US).
Maintenance, Safety & Legal Considerations
To extend lifespan:
- Keep vents clear and clean dust regularly with compressed air.
- Eject drives properly via OS before removal to avoid data loss.
- Store in dry, temperature-controlled environments.
- Use surge protectors to guard against power spikes.
Safety-wise, never open a powered dock or insert damaged drives. Capacitors inside can retain charge even when unplugged.
Legally, respect privacy and data ownership. When handling drives containing others’ data, follow applicable laws such as GDPR or HIPAA if sensitive information is involved. Always wipe drives securely before recycling.
Conclusion
An external SATA IDE HDD docking station is a powerful tool for anyone managing multiple drives, upgrading systems, or recovering data. For most users, a dual-bay model with native SATA and IDE support, USB 3.0+, and cloning capability offers the best balance of versatility and value. Prioritize reputable brands with clear technical documentation and robust power delivery. Avoid ultra-cheap options lacking safety certifications. With proper selection and care, a quality docking station can serve reliably for years across diverse computing tasks.
FAQs
Can I use an external SATA IDE HDD docking station with NVMe SSDs?
Generally no—unless the dock specifically includes an M.2 NVMe slot. Most support only 2.5″/3.5″ SATA and IDE drives. Check product specs for NVMe compatibility.
Do all docking stations support hot-swapping?
Most modern USB-based docks do allow hot-swapping, but always use the OS ‘Safely Remove Hardware’ function first to prevent corruption.
Why won’t my IDE drive show up in the docking station?
Ensure the IDE mode switch is enabled (if present), the drive is not faulty, and jumper settings (master/slave) are correct. Try reversing the IDE cable if supported.
Is it safe to leave a drive in the dock when not in use?
Yes, as long as the dock is powered off. Leaving powered docks connected increases wear and potential electrical risks.
Can I boot from a drive connected via a docking station?
Technically possible if the BIOS/UEFI allows USB booting, but not recommended for regular use due to latency and stability limitations.
