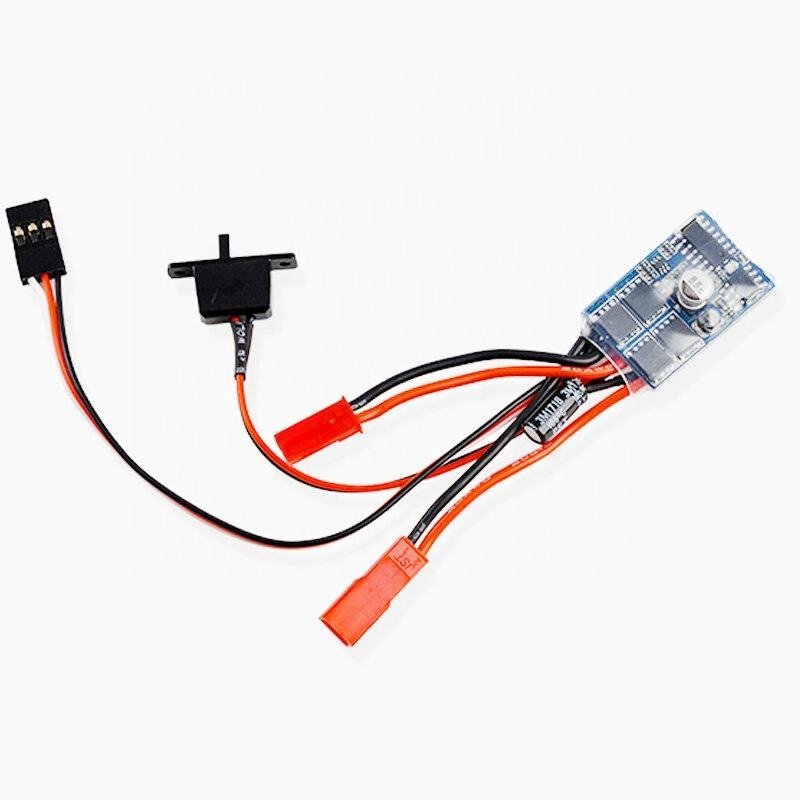

When building or upgrading a compact FPV drone, choosing the right ESC miniature AM32 is critical for achieving reliable motor control, efficient power delivery, and smooth flight dynamics. The best option depends on your specific use case—whether you’re flying freestyle, racing, or cinematic drones. For most mid-to-high-performance builds, a 32-bit ARM Cortex-based miniature AM32 ESC with firmware support like BLHeli_32 offers superior responsiveness, smoother throttle curves, and better thermal management compared to older 8-bit models. If you need high-frequency operation (48kHz+), low-latency response, and DShot protocol compatibility, prioritize units with silicon proven for sustained loads up to 60A burst and robust PCB design. Always verify voltage range compatibility with your battery setup (typically 2S–4S LiPo) and ensure firmware updatability before purchase.
About ESC Miniature AM32
An ESC miniature AM32 refers to a compact electronic speed controller based on a 32-bit ARM microcontroller, commonly used in small-scale multirotor drones such as 2-inch to 5-inch FPV quads. These ESCs are designed to fit into tight spaces while delivering precise motor control through advanced signal processing. The “AM32” designation typically indicates that the unit uses an ARM Cortex-M0 or M3/M4 core running BLHeli_32 or similar modern firmware, replacing older 8-bit processors found in legacy ESCs.
These controllers sit between the flight controller and brushless motors, translating PWM or digital signals into variable frequency outputs that drive motor rotation. Due to their size and integration level, they are especially popular in mini quadcopters where weight savings and space efficiency are crucial. They support protocols like DShot150, DShot300, and even DShot600, enabling faster communication than traditional PWM or Oneshot125 signals.
Typical applications include racing drones, freestyle machines, and lightweight cinematic rigs requiring responsive throttle behavior and minimal latency. Some models come in 4-in-1 configurations mounted directly onto flight controllers, while others are standalone units wired individually.
Why ESC Miniature AM32 Is Gaining Popularity
The rise of the ESC miniature AM32 aligns with broader trends in FPV drone development: demand for higher performance, reduced latency, and improved flight stability. Pilots increasingly seek systems that can handle rapid throttle changes without oscillation or delay—something older 8-bit ESCs struggle with due to limited processing power.
BLHeli_32 firmware, which runs on many AM32-based ESCs, introduced features like active braking, bidirectional DShot, and programmable timing—all contributing to tighter control and more predictable handling. Additionally, these ESCs support higher switching frequencies (up to 48kHz), reducing audible motor whine and improving efficiency at partial throttle.
Another driver of adoption is the shift toward integrated builds. Many modern flight controllers now feature built-in 4-in-1 AM32 ESCs, simplifying wiring and reducing overall system complexity. This modularity appeals to both beginners and experienced builders looking to streamline assembly.
Types and Variants
There are several common configurations of miniature AM32 ESCs, each suited to different build philosophies and performance needs:
1. Standalone Single ESCs
Each motor has its own separate ESC unit, usually connected via individual solder pads on the motor and power distribution board.
- Pros: Easier replacement if one fails; allows mixing different motor/ESC combos; better heat dissipation per unit.
- Cons: More wiring complexity; slightly heavier total system weight; less clean appearance.
2. 4-in-1 ESC (Integrated)
Four ESC circuits combined on a single PCB, often mounted under or integrated with the flight controller.
- Pros: Cleaner build; fewer solder joints; lighter overall; easier installation.
- Cons: If one channel fails, entire unit may need replacement; potential heat buildup in center area; less flexibility in tuning individual channels.
3. Soldered vs. Connector-Based Inputs
Some 4-in-1 units require direct soldering of motor and battery leads, while others use JST or XH connectors for plug-and-play convenience.
- Soldered: More secure connection; preferred for high-vibration environments.
- Connector-based: Faster repairs and swaps; useful for testing or shared frames across multiple setups.
4. Firmware Options
While most run BLHeli_32, some manufacturers use proprietary firmware or offer Silabs-based alternatives.
- BLHeli_32: Open-source, widely supported, regularly updated, compatible with standard programming tools.
- Proprietary: May offer unique tuning options but limit user access and future updates.
Key Features and Specifications to Evaluate
When evaluating an ESC miniature AM32, consider the following technical parameters:
Current Rating
Look for continuous ratings of at least 30A–40A and burst ratings of 50A–60A for 3S–4S setups. Higher current capacity ensures reliability during aggressive maneuvers.
Voltage Compatibility
Ensure the ESC supports your battery configuration: most work with 2S–4S LiPo, though some extend to 6S. Exceeding voltage limits risks permanent damage.
Firmware Type and Updatability
Prefer ESCs with BLHeli_32 or newer BLHeli_S support. Confirm whether firmware updates are possible using a programmer or USB interface.
Communication Protocol Support
DShot150 is acceptable for basic builds, but DShot300 or DShot600 provides lower latency and greater resolution. Avoid units limited to PWM or Oneshot unless budget-constrained.
Switching Frequency
Higher frequencies (e.g., 24kHz–48kHz) reduce noise and improve throttle linearity. However, very high frequencies may increase heat output—ensure adequate cooling.
PCB Design and Component Quality
Check for thick copper layers, quality MOSFETs (e.g., AON7406 or equivalent), and proper insulation. Poor construction leads to premature failure under load.
Size and Mounting Options
Standard 18x18mm or 20x20mm footprints fit most frames. Verify screw hole alignment and clearance for capacitors or heat shrink.
Pros and Cons
Advantages of ESC Miniature AM32
- Superior processing power over 8-bit ESCs
- Support for high-speed digital protocols like DShot
- Smoother throttle response and reduced motor jitter
- Better thermal performance and sustained current handling
- Firmware customization (timing, dead time, braking)
Disadvantages and Limitations
- More expensive than entry-level 8-bit ESCs
- Integrated 4-in-1 designs mean full replacement if one channel fails
- Some clones lack true BLHeli_32 compliance or use inferior components
- Potential compatibility issues with older flight controllers not supporting 32-bit timing
How to Choose ESC Miniature AM32
Selecting the right ESC miniature AM32 involves a step-by-step evaluation:
- Define your application: Are you building a race quad, freestyle rig, or long-range flyer? High-aggression builds need higher burst current and fast response.
- Match voltage requirements: Double-check your intended LiPo cell count (2S–6S) against ESC specifications.
- Verify protocol support: Ensure your flight controller supports DShot or other digital protocols required by the ESC.
- Check physical dimensions: Measure available space on your frame or within stack mounting area.
- Research brand reputation: Stick with known manufacturers like Flywoo, Holybro, T-Motor, or iFlight rather than unbranded clones.
- Confirm firmware accessibility: Make sure you can reflash or adjust settings using a BLHeli programmer or Betaflight passthrough.
- Avoid red flags: Units priced significantly below market average, missing datasheets, or lacking customer reviews should raise suspicion about component authenticity.
If unsure, consult community forums or review sites that test ESCs under real-world conditions. Also, check return policies in case of defects or incompatibility.
Price & Market Insights
Standalone miniature AM32 ESCs typically range from $18 to $35 for a set of four. Integrated 4-in-1 boards vary from $25 to $60 depending on build quality and brand.
At the lower end ($18–$25), expect functional but potentially thinner PCBs and generic MOSFETs. Mid-tier options ($26–$40) often include better thermal design and name-brand components. Premium units ($40+) usually come from reputable brands with rigorous QA and detailed documentation.
Value isn’t just about price—it’s about longevity and consistency. Spending more upfront may prevent crashes caused by ESC failures. That said, avoid over-specifying; a 60A burst ESC is unnecessary for a lightweight 3S freestyle build using 1507-class motors.
Top-Seller & Competitive Analysis
Below is a comparison of popular ESC miniature AM32 models frequently recommended by pilots:
| Model | Form Factor | Max Current (Burst) | Firmware | Protocol Support | Approx. Price (USD) |
|---|---|---|---|---|---|
| iFlight Little Bee 4-in-1 | 4-in-1 | 60A | BLHeli_32 | DShot600 | $39 |
| Holybro Tekko32 F4 | 4-in-1 + FC | 50A | BLHeli_32 | DShot600 | $58 |
| Flywoo AM32 4-in-1 | 4-in-1 | 55A | BLHeli_32 | DShot300 | $32 |
| Rocketbrains Red Brick Lite | Standalone x4 | 50A | BLHeli_32 | DShot600 | $45 |
Note: Always verify latest firmware status and stock availability, as production batches may change component suppliers.
Customer Feedback Synthesis
Based on aggregated user reviews and forum discussions, here’s a summary of common sentiments:
Positive feedback: Users consistently praise the smooth throttle feel, quiet operation, and reliability of genuine BLHeli_32-powered units. Many highlight successful firmware upgrades and compatibility with Betaflight’s advanced motor testing tools.
Common complaints: Issues arise primarily with no-name brands—users report early failures, inconsistent phase timing, and inability to update firmware. Some also mention overheating in tightly enclosed builds without airflow.
One recurring theme is the importance of purchasing from authorized sellers to avoid counterfeit chips marketed as “AM32” but actually using inferior processors.
Sourcing & Supplier Tips
Buy from established RC retailers such as GetFPV, PyroDrone, or RaceDayQuads, which provide warranties and accurate product descriptions. Avoid third-party marketplaces where counterfeit goods are prevalent.
For bulk purchases or resale, contact distributors directly or consider OEM partnerships if designing custom stacks. Request sample units first to inspect solder quality, labeling accuracy, and included accessories.
Before finalizing orders, confirm return policies and whether technical support is available for troubleshooting.
Maintenance, Safety & Legal Considerations
To maintain your ESC miniature AM32, keep it free from dust and moisture. After wet flights, dry thoroughly before storage. Inspect for burnt smells, bulging capacitors, or discolored traces after intense sessions.
Safety-wise, always disconnect batteries when soldering or modifying electronics. Use insulated tools and wear eye protection. Never exceed rated voltage or current limits.
Legally, ensure your drone complies with local regulations regarding RF emissions and flight operations. While ESCs themselves aren’t regulated, improper signal interference could violate communications laws in some jurisdictions.
Conclusion
The ESC miniature AM32 represents a significant advancement in drone motor control technology, offering faster response times, smoother performance, and greater configurability than older solutions. When selecting one, focus on verified specifications, reputable brands, and compatibility with your existing setup. Prioritize units with BLHeli_32 firmware, DShot600 support, and solid build quality—even if they cost slightly more. Avoid suspiciously cheap clones, and always double-check electrical compatibility before installation. With the right choice, an AM32 ESC enhances flight precision and system reliability, making it a worthwhile investment for serious FPV enthusiasts.
FAQs
Q: What does AM32 mean in ESCs?
A: AM32 refers to a 32-bit ARM microcontroller used in modern ESCs, enabling faster processing and support for advanced firmware like BLHeli_32.
Q: Can I use an ESC miniature AM32 with a 6S battery?
A: Only if explicitly rated for 6S (up to 25.2V). Most AM32 ESCs support up to 4S; exceeding voltage limits can cause immediate failure.
Q: How do I update the firmware on my AM32 ESC?
A: Use a BLHeli_32-compatible programmer or Betaflight’s passthrough feature via USB, following the manufacturer’s instructions carefully.
Q: Are 4-in-1 ESCs reliable for racing?
A: Yes, provided they are from reputable brands with good thermal design. Many professional pilots use integrated 4-in-1 AM32 ESCs successfully.
Q: Do all AM32 ESCs support DShot600?
A: No—check product specs. Some budget models only support DShot300 or lower. True DShot600 requires capable hardware and proper signal routing.
