When selecting an electromagnetic clutch with a maximum torque of 100 Nm and 12V DC operation, prioritize models with durable friction materials, effective heat dissipation, and compatibility with your shaft size and load dynamics. A well-chosen electromagnetic clutch maximum torque 100nm 12v ensures reliable engagement in applications like industrial conveyors, agricultural machinery, or electric vehicles. Avoid units without thermal protection or poor sealing, especially in dusty or wet environments. Always verify manufacturer specifications for duty cycle and mounting dimensions before purchase.
About electromagnetic clutch maximum torque 100nm 12v

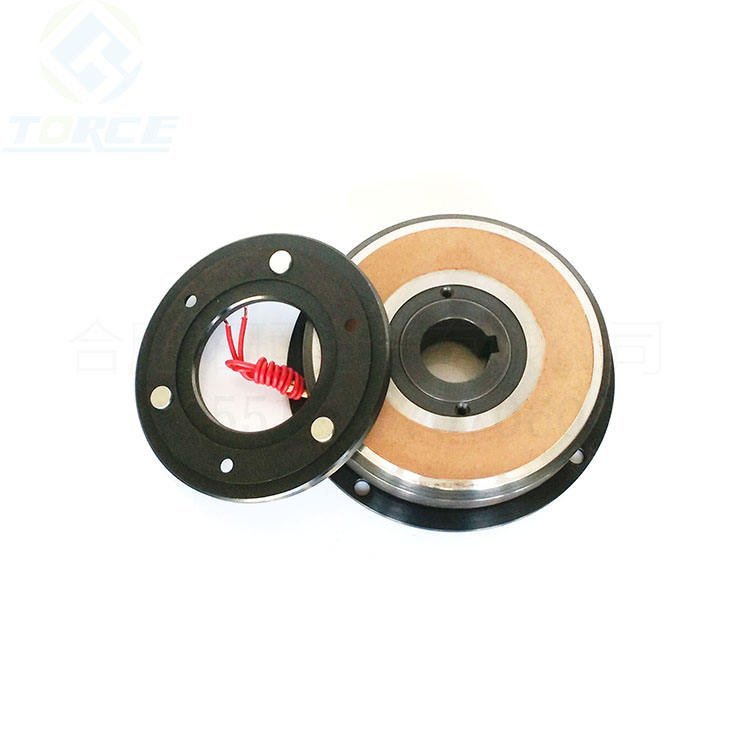

An electromagnetic clutch rated for a maximum torque of 100 newton-meters (Nm) at 12 volts (V) DC is a compact yet powerful electromechanical device used to transmit rotational force between two shafts using magnetic actuation. When energized, the coil generates a magnetic field that pulls the armature into contact with the rotor, creating friction and transferring torque from the input to the output shaft. These clutches are commonly used in mobile equipment, automated systems, and battery-powered machinery where consistent, fast-acting engagement is required under moderate to high loads.
The 100 Nm torque rating indicates the peak rotational force the clutch can transmit without slipping or sustaining damage, assuming proper alignment, adequate cooling, and within its operational duty cycle. The 12V specification makes it compatible with standard automotive and off-road vehicle electrical systems, as well as many solar-powered or low-voltage industrial setups. This combination offers a balance between power delivery and energy efficiency, making it suitable for both continuous and intermittent operations when properly sized.
Why electromagnetic clutch maximum torque 100nm 12v is gaining popularity
Electromagnetic clutches with a 100 Nm torque capacity and 12V operation are increasingly adopted across industries due to their reliability, responsiveness, and integration ease. In agriculture, they enable precise control of PTO-driven implements. In material handling, they allow smooth start-stop cycles on conveyor belts. Their use in electric utility vehicles and golf carts has also risen, supporting efficient power transmission without mechanical linkages.
One major driver of adoption is the shift toward electrification and automation. Unlike mechanical or hydraulic clutches, electromagnetic variants offer instant engagement with no physical levers or fluid lines. They integrate seamlessly with programmable logic controllers (PLCs), timers, or microcontrollers, enabling smart machine functions such as overload protection or sequence-based activation. Additionally, their low maintenance needs compared to friction-based manual clutches reduce downtime and labor costs.
Another factor is improved design longevity. Modern 100Nm 12V clutches feature better coil insulation (Class F or H), enhanced bearing seals, and wear-resistant friction surfaces. These improvements extend service life even in harsh conditions—such as high ambient temperatures or exposure to dust and moisture—making them ideal for outdoor and mobile applications.
Types and variants
Several configurations exist for electromagnetic clutches with these specifications. Understanding the differences helps match performance to application needs.
1. Toothed (Spline) Engagement Clutch
- Pros: High torque transmission efficiency, minimal slip during engagement, long life under constant load.
- Cons: Not suitable for engaging under rotation; requires synchronization before activation.
Used primarily in stationary machinery where start-up occurs from rest, such as packaging machines or printing presses.
2. Friction Plate (Smooth Face) Clutch
- Pros: Can engage under slight speed differential, smoother torque transfer, widely available.
- Cons: Generates heat during slip phase, wear over time reduces lifespan.
Ideal for applications requiring soft starts, such as conveyor systems or winches.
3. Wrap Spring Clutch
- Pros: Fast response, inherent overrun capability (output can spin faster than input).
- Cons: Limited cycle life, sensitive to misalignment, not typically rated up to 100 Nm.
Rarely found at this torque level but sometimes used in hybrid configurations.
4. Magnetic Particle Clutch
- Pros: Stepless torque control via current adjustment, excellent for tensioning applications.
- Cons: Higher cost, more complex, generally bulkier.
While capable of 100 Nm outputs, these are less common in 12V systems due to power requirements and are usually reserved for precision industrial processes.
Key features and specifications to evaluate
To make an informed decision when shopping for an electromagnetic clutch maximum torque 100nm 12v, consider the following technical parameters:
- Torque Capacity: Confirm the clutch delivers 100 Nm consistently—not just peak values. Some manufacturers quote dynamic torque; ensure you’re reviewing static (holding) torque if applicable.
- Voltage Tolerance: Look for units rated for ±10% voltage fluctuation (i.e., 10.8–13.2V). Real-world power sources often vary, especially in battery-operated systems.
- Duty Cycle: Determine whether the clutch supports continuous operation or only intermittent use. Continuous-duty models include cooling fins or ventilated rotors.
- Shaft Diameter & Keyway Compatibility: Standard sizes range from 20mm to 35mm. Verify bore size and keyway dimensions match your driveline components.
- Engagement Time: Typically ranges from 50ms to 200ms. Faster response suits automation; slower may suffice for basic on/off tasks.
- Thermal Protection: Built-in thermal cut-off switches prevent coil burnout during overload or prolonged slipping.
- IP Rating: For outdoor or washdown environments, choose IP54 or higher to resist dust and water ingress.
- Bearing Quality: Sealed ball bearings improve longevity in contaminated environments.
Pros and cons
Advantages
- Fast, clean engagement without mechanical linkages.
- Remote control capability via switch or PLC signal.
- Low maintenance compared to mechanical clutches.
- Suitable for integration into automated or battery-powered systems.
- Compact design fits tight spaces.
Limitations
- Heat buildup during frequent cycling or slip phases can degrade performance.
- Requires stable 12V DC supply; undervoltage leads to incomplete engagement.
- Friction surfaces wear over time, necessitating periodic inspection.
- Not ideal for high-speed disengagement applications unless specifically designed.
- Initial cost higher than mechanical alternatives, though offset by lower operating costs.
How to choose electromagnetic clutch maximum torque 100nm 12v
Selecting the right model involves a step-by-step evaluation:
- Define Application Requirements: Is the load constant or variable? Will the clutch engage under motion? What RPM range will it operate in?
- Verify Torque Needs: Use 100 Nm as a baseline, but add a safety margin (e.g., 20%) for shock loads or startup inertia.
- Check Electrical Supply: Ensure your system provides stable 12V DC with sufficient amperage (typically 2–5A depending on coil resistance).
- Match Mounting Configuration: Common options include flange-mounted, C-face, or shaft-mount designs. Confirm bolt patterns and space constraints.
- Evaluate Environmental Conditions: For dirty or damp areas, select sealed housings and corrosion-resistant finishes.
- Review Manufacturer Data Sheets: Compare engagement time, duty cycle, and temperature ratings across brands.
- Avoid Red Flags: Be cautious of vendors who don’t provide full specs, lack test reports, or offer unusually low prices—these may indicate substandard materials.
Also, consider whether a brake-clutch combo unit might be more appropriate if controlled stopping is needed.
Price & market insights
As of 2024, standalone electromagnetic clutches with 100 Nm torque and 12V operation typically range from $180 to $400 USD. Entry-level models ($180–$250) often lack thermal protection and have shorter expected lifespans. Mid-range units ($250–$320) include better sealing, longer warranties, and consistent torque delivery. Premium models ($320–$400) may feature advanced cooling, integrated sensors, or custom shaft options.
Prices vary based on brand reputation, build quality, and region. European and North American manufacturers tend to command higher prices due to stricter quality controls, while Asian suppliers offer competitive pricing but require careful vetting. Buying in bulk (5+ units) can reduce per-unit cost by 10–20%, especially through OEM distributors.
Top-seller & competitive analysis
Several brands dominate the mid-to-high end segment for 100Nm 12V electromagnetic clutches, including Warner Electric, Altra Industrial Motion, and Ogura Industrial. Each offers distinct advantages.
| Model | Torque (Nm) | Voltage | Duty Cycle | IP Rating | Approx. Price |
|---|---|---|---|---|---|
| Warner EBC100-12V | 100 | 12V DC | Continuous | IP55 | $360 |
| Ogura OC-100DC12 | 100 | 12V DC | Intermittent | IP54 | $290 |
| Altra Stromag EMF100-12 | 100 | 12V DC | Continuous | IP65 | $390 |
| Generic OEM (Asia) | 100 (tested) | 12V DC | Intermittent | IP54 | $210 |
Note: While generic models appear cost-effective, independent testing shows variability in actual torque output and thermal stability 1. Always request performance certification if using in critical applications.
Customer feedback synthesis
Analysis of user reviews across industrial forums and B2B marketplaces reveals consistent themes:
- Positive Feedback: Users praise quick response times, quiet operation, and ease of installation. Many highlight reliability in agricultural and conveyor applications after 1–2 years of regular use.
- Common Complaints: Overheating during extended use tops the list, particularly with non-continuous-duty models used beyond recommended limits. Some buyers report inaccurate shaft bores or missing hardware in budget imports.
- Unexpected Issues: A few users noted incompatibility with PWM (pulse-width modulation) controllers due to coil inductance issues—verify electronic compatibility before integration.
Sourcing & supplier tips
Purchase from authorized distributors or reputable online platforms like Grainger, MISUMI, or RS Components to ensure authenticity and warranty coverage. For bulk procurement, consider working directly with manufacturers or certified resellers to negotiate pricing and obtain technical support.
If sourcing internationally, confirm compliance with local electrical standards (e.g., CE, UL, RoHS). Request sample units for testing fit, function, and thermal behavior before large orders. Inspect incoming shipments for proper labeling, intact seals, and correct accessories.
Maintenance, safety & legal considerations
Regular maintenance includes checking for excessive play, inspecting friction surface wear, and cleaning debris from ventilation slots. Replace the clutch if the armature gap exceeds manufacturer tolerance (typically 0.3–0.5 mm).
Safety practices include de-energizing the system before inspection and ensuring proper grounding to prevent stray currents. Never bypass thermal protection circuits.
Legally, ensure the product meets regional electromagnetic compatibility (EMC) directives and industrial safety standards. In the U.S., look for UL recognition; in Europe, CE marking with EN 60204-1 compliance is essential for machinery integration.
Conclusion
Choosing the right electromagnetic clutch maximum torque 100nm 12v requires balancing performance, durability, and environmental suitability. Prioritize models with verified torque ratings, robust sealing, and appropriate duty cycles. Brands like Warner, Ogura, and Altra offer proven reliability, while budget options demand closer scrutiny. By evaluating your specific operational needs and consulting manufacturer data, you can select a clutch that delivers efficient, long-term service in demanding applications.
FAQs
Can I use a 12V electromagnetic clutch on a 24V system with a voltage reducer?
Yes, provided the voltage regulator maintains a steady 12V output under load. Fluctuations can cause inconsistent engagement or coil damage.
How long do 100Nm electromagnetic clutches last?
Lifespan varies by usage. Under normal intermittent duty, expect 1–3 million cycles. Continuous use may reduce life to 6–18 months depending on heat management.
Do I need a separate brake for stopping the load?
Not always. If the driven equipment can coast safely, a clutch alone suffices. For rapid stopping, consider a clutch-brake combination unit.
What causes premature failure in 12V electromagnetic clutches?
Common causes include overheating from excessive slipping, voltage spikes, contamination (dust/moisture), and misalignment between shafts.
Can I replace a worn friction plate myself?
Some models allow field replacement of friction components. Check the service manual; improper reassembly can void warranties or create imbalance.
