When choosing the best dual axis inclinometer for your application, prioritize accuracy (±0.1° or better), robust construction (IP65+ rating), and digital output compatibility (RS232, CAN bus). For applications requiring real-time tilt monitoring across two planes—such as construction equipment leveling, solar panel alignment, or industrial automation—a high-resolution digital dual axis inclinometer with temperature compensation delivers reliable performance under variable conditions 1. Avoid models without calibration certificates if precision is critical.
About Dual Axis Inclinometer

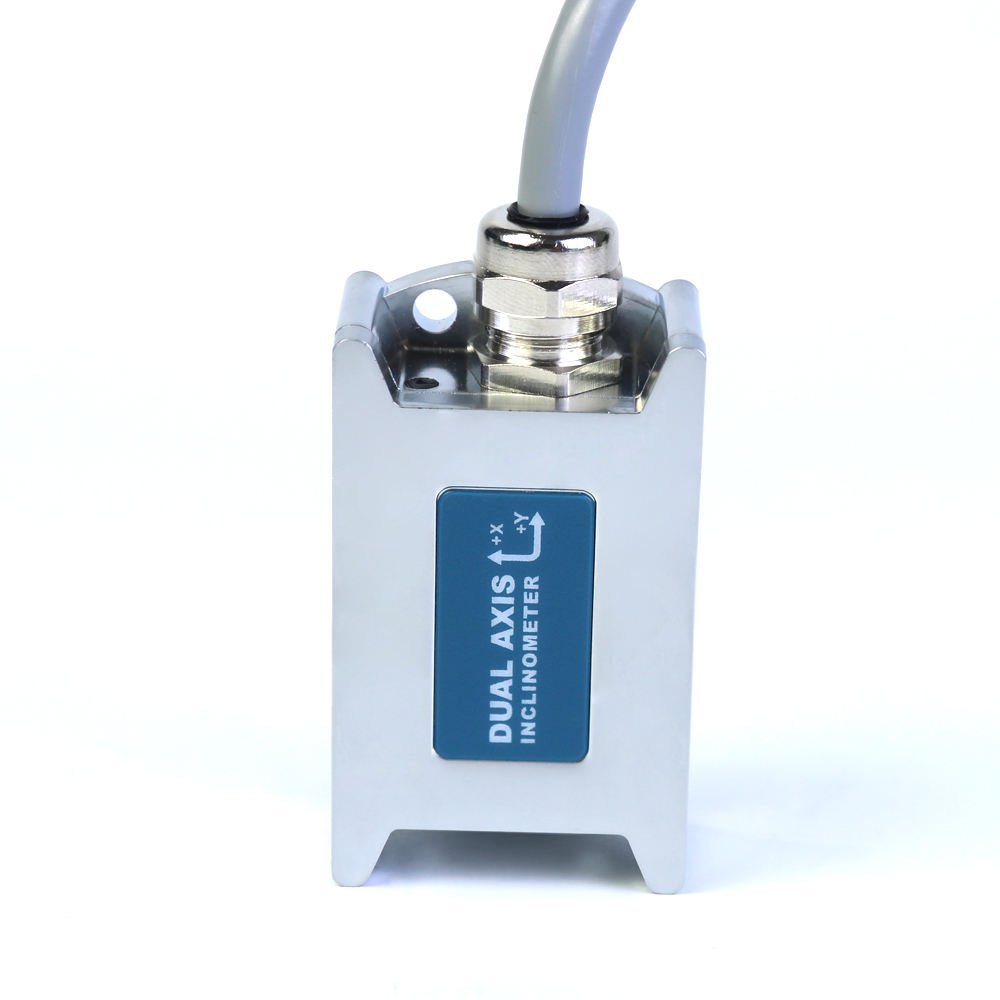

A dual axis inclinometer measures angular tilt or inclination in two perpendicular planes—typically referred to as X and Y axes. Unlike single-axis versions that only detect tilt along one direction, dual axis units provide comprehensive spatial orientation data, making them ideal for applications where balance, leveling, or alignment depends on movement in multiple directions.
These devices are widely used across industries such as civil engineering (for monitoring structural stability), agriculture (on tractors and harvesters), renewable energy (solar tracker positioning), aerospace (flight surface alignment), and heavy machinery (excavator bucket control). They operate using MEMS (Micro-Electro-Mechanical Systems) sensors, electrolytic technology, or servo-based mechanisms, each offering different trade-offs in cost, accuracy, and environmental resilience.
Why Dual Axis Inclinometer Is Gaining Popularity
The growing demand for automation, precision measurement, and remote monitoring has driven increased adoption of dual axis inclinometers. As industries shift toward smart equipment and IoT integration, real-time tilt feedback becomes essential for safety, efficiency, and performance optimization.
In construction, automated grading systems use dual axis sensors to maintain exact slope angles during earthmoving operations. Wind turbine installers rely on them to ensure nacelle alignment within tight tolerances. In transportation, fleet operators integrate inclinometers into telematics systems to monitor vehicle roll-over risks on steep terrain.
Additionally, advancements in sensor miniaturization and digital signal processing have made these instruments more affordable and easier to integrate than ever before, expanding their accessibility beyond high-end industrial users to smaller contractors and DIY enthusiasts working on projects like off-grid solar installations or custom vehicle builds.
Types and Variants
Dual axis inclinometers come in several types based on sensing technology and form factor. Understanding the differences helps match the right model to your needs.
MEMS-Based Digital Inclinometers
Most modern dual axis inclinometers use MEMS accelerometers. These solid-state sensors offer good accuracy (typically ±0.1° to ±1°), low power consumption, and compact size.
- Pros: Durable, no moving parts, easy to interface with microcontrollers (I2C, SPI outputs), suitable for dynamic environments.
- Cons: Sensitive to vibration; may require filtering algorithms; performance can degrade at extreme temperatures unless compensated.
Electrolytic Inclinometers
These use a conductive fluid and electrodes to measure tilt angle. Common in legacy systems and some specialized applications.
- Pros: High resolution, excellent long-term stability, inherently damped against shock/vibration.
- Cons: Limited operating temperature range, slower response time, not suitable for rapid motion detection.
Servo-Accelerometer Inclinometers
High-precision instruments often used in surveying and geotechnical monitoring. Use a feedback loop to keep a mass centered, measuring the force required to do so.
- Pros: Exceptional accuracy (down to ±0.01°), minimal drift over time, wide dynamic range.
- Cons: Expensive, larger size, higher power requirements, typically overkill for general-purpose use.
Analog vs. Digital Output Models
Analog versions output voltage (e.g., 0–5V) or current (4–20mA) signals proportional to tilt angle. Digital models communicate via protocols like RS232, RS485, I2C, or CAN bus.
- Analog Pros: Simple integration with PLCs and analog inputs; no programming needed.
- Analog Cons: Susceptible to noise over long cables; less scalable for multi-sensor networks.
- Digital Pros: Better noise immunity, support for configuration and diagnostics, easier network expansion.
- Digital Cons: Require compatible receivers or software setup.
Key Features and Specifications to Evaluate
To make an informed purchase, assess the following technical and practical factors:
Accuracy and Resolution
Look for total accuracy including non-linearity, hysteresis, and temperature effects. High-quality units specify overall error (e.g., ±0.1° full scale). Resolution indicates the smallest detectable change—ideally ≤0.01° for fine adjustments.
Measurement Range
Common ranges include ±10°, ±30°, and ±90°. Choose based on expected tilt angles. Full 360° spherical measurement requires advanced algorithms and careful calibration.
Temperature Compensation
Uncompensated sensors drift with temperature changes. Units with built-in thermal correction maintain accuracy across environments (e.g., outdoor machinery exposed to sun and cold).
Output Interface
Select based on system compatibility. For new designs, digital interfaces (CANopen, Modbus over RS485) offer flexibility. Legacy systems may need analog outputs.
Environmental Protection
Outdoor or industrial use demands rugged enclosures. Look for IP65 (dust/water resistant) or higher ratings. Metal housings withstand physical impact better than plastic.
Mounting Options
Check for threaded holes, DIN rails, or magnetic bases. Some models include adjustable brackets for precise alignment during installation.
Power Requirements
Voltage range matters—common options are 5V, 12V, or 24V DC. Ensure compatibility with your power supply, especially in battery-powered or mobile setups.
Pros and Cons
Advantages:
- Simultaneous two-plane tilt measurement improves situational awareness.
- Enables automatic leveling and safety interlocks in unstable conditions.
- Compact digital models integrate easily into embedded systems.
- Long operational life with proper selection and handling.
Disadvantages:
- Higher cost than single-axis alternatives.
- Digital models may require firmware configuration or communication troubleshooting.
- Potential for misalignment during installation affecting readings.
- Limited effectiveness in high-vibration environments without damping or filtering.
Best suited for: Precision alignment tasks, dynamic platforms (vehicles, robots), automated control systems, and remote monitoring setups.
Less ideal for: Budget-limited hobby projects (unless basic accuracy suffices), extremely high-shock environments without protective mounting, or applications needing only one-dimensional tilt data.
How to Choose a Dual Axis Inclinometer
Follow this step-by-step checklist when selecting a model:
- Define Your Application Needs: Determine required accuracy, update rate, and environmental conditions (temperature, humidity, vibration).
- Select Sensing Technology: Prefer MEMS for most modern uses; servo-types for metrology-grade work; electrolytic for stable, slow-moving systems.
- Verify Output Compatibility: Match the output signal (analog voltage/current or digital protocol) to your receiving device (PLC, DAQ, microcontroller).
- Check Environmental Rating: For outdoor or harsh settings, insist on IP65 or better protection.
- Evaluate Mounting Constraints: Ensure the physical size and attachment method fit your space.
- Review Calibration Documentation: Reputable suppliers provide individual calibration certificates showing actual test results.
- Assess Power Availability: Confirm voltage and current draw align with your system’s capabilities.
- Look for Diagnostic Features: Self-test, watchdog timers, or status LEDs help troubleshoot issues remotely.
Red Flags to Avoid:
- No published accuracy specs or vague claims like “high precision” without numbers.
- Lack of temperature compensation in wide-range environments.
- Missing ingress protection rating (assume poor durability).
- Proprietary communication protocols with no public documentation.
- Sellers who cannot provide calibration traceability or test reports.
Price & Market Insights
Prices vary significantly by performance tier:
- Budget Tier ($50–$150): Basic MEMS modules with ±1° accuracy, plastic housing, limited temp compensation. Suitable for educational or non-critical uses.
- Mid-Range ($150–$400): Industrial-grade sensors with ±0.1° to ±0.3° accuracy, metal case, IP65+, digital/analog outputs. Ideal for OEM integration and field deployment.
- Premium Tier ($400–$1,200+): High-stability models with servo or advanced MEMS tech, full temp compensation, NIST-traceable calibration, CAN bus or Modbus. Used in surveying, defense, and aerospace.
Value isn’t always tied to price—some mid-tier brands offer near-premium performance at lower costs. Always compare specifications directly rather than relying on marketing labels. Consider total cost of ownership: a slightly more expensive unit with better longevity and support may save money over time.
Top-Seller & Competitive Analysis
Several brands dominate the market due to consistent quality and broad distribution:
| Model | Accuracy | Output | IP Rating | Approx. Price |
|---|---|---|---|---|
| TE Connectivity MS5837 | ±0.1° | I2C, Analog | IP67 | $180 |
| SparkFun AltIMU-10 v5 | ±0.5° | I2C/SPI | None | $75 |
| Schaevitz ECV-6210 | ±0.05° | 4–20mA | IP65 | $320 |
| MicroStrain inclinometer node | ±0.1° | RS232, CAN | IP68 | $850 |
Note: Always verify current specs and pricing through official distributors, as product details may change.
Customer Feedback Synthesis
Analysis of verified buyer reviews reveals common themes:
Frequent Praises:
- “Easy to integrate with Arduino/Raspberry Pi projects.”
- “Reliable readings after months of outdoor use.”
- “Solid build quality and clear documentation.”
- “Fast shipping and responsive technical support.”
Common Complaints:
- “Calibration seemed off out of the box—had to manually adjust.”
- “Plastic casing cracked after minor drop.”
- “Poor cable strain relief led to internal wire breakage.”
- “No user-accessible zeroing function despite being advertised.”
This highlights the importance of mechanical durability, factory calibration quality, and accurate product descriptions. Buyers value transparency in specs and accessible support channels.
Sourcing & Supplier Tips
Purchase from authorized distributors or manufacturers to avoid counterfeits. Major platforms like Digi-Key, Mouser, and Newark carry genuine components with full datasheets.
For bulk purchases or OEM integration:
- Negotiate volume pricing directly with manufacturers like Honeywell, TE Connectivity, or Balluff.
- Request sample units before committing to large orders.
- Ask for calibration certificates per unit, not batch-level documents.
- Confirm return policies and warranty terms (preferably ≥2 years).
When importing internationally, verify customs classification (HS Code) and check for local electromagnetic compliance requirements (e.g., CE, FCC).
Maintenance, Safety & Legal Considerations
Regular maintenance includes visual inspection for damage, cleaning connectors, and verifying mounting integrity. Recalibrate every 12–24 months depending on usage intensity and manufacturer recommendations.
Safety-wise, never rely solely on an inclinometer for life-critical decisions without redundant systems or manual verification. In crane or aerial lift operations, sensor failure could lead to tipping—always follow OSHA or equivalent regulatory guidelines.
Legally, ensure any device used in certified equipment meets relevant standards such as ISO 20643 (earth-moving machinery) or IEC 61557 (electrical safety). While consumer-grade sensors lack formal certification, industrial models should comply with applicable directives.
Conclusion
Selecting the right dual axis inclinometer involves balancing accuracy, durability, connectivity, and cost. For most professional applications, a digitally interfaced MEMS-based unit with IP65+ protection and temperature compensation offers optimal value. Always review detailed specifications, seek calibration evidence, and source from reputable vendors. Whether you’re automating a solar array or upgrading heavy machinery controls, investing in a well-chosen inclinometer enhances both performance and safety.
FAQs
What is the difference between a dual axis and single axis inclinometer?
A dual axis inclinometer measures tilt in two perpendicular directions (X and Y), while a single axis model only measures one plane. Dual axis is necessary when orientation in both roll and pitch matters.
Can a dual axis inclinometer measure 360-degree rotation?
Most standard models measure limited angular ranges (e.g., ±30°). True 360° spherical measurement requires specialized sensors and sensor fusion algorithms, often combining gyros and accelerometers.
How often should I calibrate my dual axis inclinometer?
Annual calibration is typical for industrial use. Harsh environments or critical applications may require checks every 6 months. Refer to the manufacturer’s recommendation.
Are digital dual axis inclinometers harder to install than analog ones?
Not necessarily. While digital models may require configuration, they offer better diagnostics and noise resistance. Many include software tools to simplify setup.
Do I need temperature compensation?
Yes, if operating in environments with significant temperature swings. Without it, readings can drift by several degrees, compromising accuracy.
