When choosing a dc supply for phone repair, prioritize adjustable voltage (0–20V), current limiting, low ripple noise, and digital readouts for precision. A reliable bench power supply ensures safe diagnostics and component testing—critical for avoiding damage during mobile device repairs 1. Look for models with OVP (over-voltage protection), constant current mode, and fine voltage adjustment in 0.1V increments. For most technicians, a single-channel 30V/3A unit offers the best balance of control, safety, and value when working on smartphones and small PCBs.

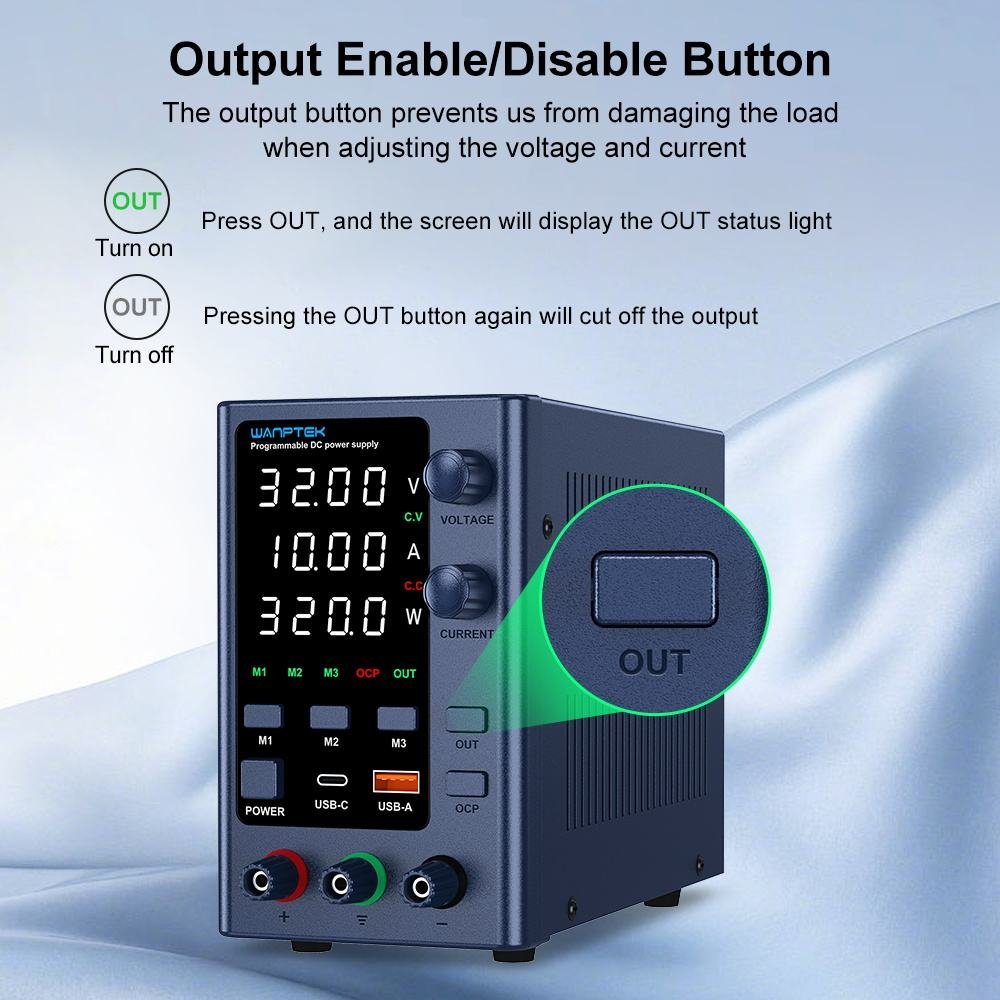

Short Introduction
Selecting the right dc supply phone repair tool is essential for accurate troubleshooting and safe circuit testing. Unlike using batteries or improvised sources, a proper bench DC power supply gives full control over voltage and current, reducing the risk of damaging sensitive components like PMICs or displays. This guide covers everything you need to know—from key specs to avoid dangerous knockoffs—and helps you make a confident purchase based on real-world repair demands.
About DC Supply Phone Repair
A DC supply used in phone repair refers to a controllable, adjustable direct current power source that mimics battery output to safely power smartphone circuits during diagnosis and repair. These units are commonly known as bench power supplies and allow technicians to replace the actual battery with a stable, monitored voltage source while testing logic boards, charging ports, screens, or backlight systems.
In practice, a technician might disconnect the phone’s internal battery and connect the DC supply leads to the corresponding power pads on the motherboard. By gradually ramping up voltage and monitoring current draw, they can detect short circuits, failed regulators, or faulty components without risking further damage 2.
Typical use cases include:
- Testing for board-level shorts before applying full power
- Powering a phone after removing a damaged battery
- Diagnostics under load (e.g., measuring current spikes during boot)
- Safely powering modules during screen or camera replacement
These applications make the DC supply an indispensable tool in professional micro-soldering and advanced diagnostic workflows.
Why DC Supply Phone Repair Is Gaining Popularity
The rise in smartphone complexity has driven demand for more precise repair tools. As devices become thinner and integrate more surface-mount components, visual inspection alone is no longer sufficient. Technicians increasingly rely on quantitative measurements—like current draw—to identify faults.
Additionally, the growth of independent repair shops and the Right to Repair movement has expanded access to professional-grade equipment. More hobbyists and small business owners are investing in tools like DC power supplies to improve success rates and reduce costly mistakes.
Online training platforms and YouTube tutorials have also highlighted the importance of using a regulated DC supply instead of jumper wires or charged batteries—a risky shortcut that can destroy ICs. As awareness grows, so does adoption across both entry-level and advanced repair environments.
Types and Variants
DC power supplies come in several configurations, each suited to different repair scenarios:
Single-Channel vs. Dual-Channel Supplies
Single-channel units provide one adjustable output. They’re cost-effective and sufficient for most phone repairs where only one voltage rail (typically 3.7V–4.2V) is needed at a time.
- Pros: Lower price, simpler interface, adequate for basic diagnostics
- Cons: Cannot simulate multi-rail systems (e.g., separate VCC_MAIN and PP_BATT_VCC)
Dual-channel models offer two independent outputs, useful for powering multiple rails simultaneously or testing dual-voltage components.
- Pros: Greater flexibility; some allow series/parallel tracking modes
- Cons: Higher cost, larger footprint, often overkill for standard phone work
Linear vs. Switching Power Supplies
Linear power supplies generate clean, low-noise output ideal for sensitive electronics.
- Pros: Minimal electrical noise (ripple), excellent voltage regulation
- Cons: Less efficient, generate heat, heavier, limited to lower wattages
Switching types are more compact and energy-efficient but may introduce higher ripple.
- Pros: Lightweight, high efficiency, broader input voltage range
- Cons: Potential for electromagnetic interference; cheaper models may lack filtering
For phone repair, linear supplies are generally preferred unless portability is critical.
Analog vs. Digital Readout Models
Analog meters use physical dials and needles.
- Pros: No lag, continuous display, immune to firmware glitches
- Cons: Less precise, harder to read accurately
Digital displays show exact volts and amps via LED/LCD.
- Pros: High readability, often include hold/max functions
- Cons: Can flicker or freeze; dependent on internal circuitry stability
Digital models dominate today’s market due to clarity and integration with protection features.
Key Features and Specifications to Evaluate
Not all DC power supplies are suitable for delicate phone repair. Consider these technical aspects:
- Voltage Range: Must cover 0–6V minimum; ideally up to 20V for versatility. Fine adjustment in 0.1V steps allows safe ramp-up.
- Current Limiting: Essential for safety. Set a maximum current (e.g., 500mA); if a short occurs, the supply cuts off rather than delivering destructive amperage.
- Ripple & Noise: Should be below 10mV RMS. High ripple can interfere with signal integrity and damage analog circuits.
- Readout Accuracy: Look for ±(0.5% + 2 digits). Inaccurate readings mislead diagnostics.
- Protections: Over-voltage (OVP), over-current (OCP), and over-temperature (OTP) safeguards prevent equipment and device damage.
- Output Stability: Voltage should not drift under load. Check line and load regulation specs (ideally <0.1%).
- Binding Posts or Banana Jacks: Secure connections matter. Alligator clips are acceptable but prone to slipping.
Pros and Cons
Advantages of Using a DC Supply in Phone Repair:
- Prevents accidental overvoltage by allowing gradual power application
- Enables real-time current monitoring to spot hidden shorts
- Eliminates reliance on potentially swollen or defective batteries during testing
- Improves diagnostic accuracy and reduces component stress
Limitations and Drawbacks:
- Initial cost ($50–$200) may deter casual users
- Requires learning curve to interpret current behavior correctly
- Poor-quality units can output unstable voltage or false readings
- Not necessary for simple screen/battery replacements
A DC supply is best suited for intermediate to advanced repairs involving logic boards, charging issues, or unresponsive devices. It’s less relevant for purely mechanical fixes.
How to Choose a DC Supply for Phone Repair
Follow this step-by-step checklist when selecting your unit:
- Determine Your Use Case: If you only do screen swaps, a basic model suffices. For micro-soldering or board repair, invest in higher precision.
- Check Voltage and Current Range: Ensure it supports 0–6V with at least 2A capacity. Adjustable down to 0.1V increments is ideal.
- Verify Protection Circuits: Confirm OVP, OCP, and constant current (CC) mode are included.
- Assess Display Quality: Opt for clear digital readouts with separate volt/amp meters.
- Test Ripple Performance: If possible, review oscilloscope tests online or consult forums for known models.
- Evaluate Build and Connectors: Metal casing aids heat dissipation. Binding posts should accept banana plugs and alligator clips securely.
- Review Brand Reputation: Stick with established brands like Rigol, Korad, or Siglent. Avoid generic ‘no-name’ units from unknown sellers.
- Avoid Red Flags: Units priced under $30, lacking safety certifications, or claiming unrealistic specs (e.g., ‘0–30V/10A’ for $25) are likely unsafe or inaccurate.
Price & Market Insights
Pricing varies significantly based on quality and features:
- Budget Tier ($30–$60): Entry-level units like the Korad KA3005D offer decent performance with minor compromises in ripple and build. Suitable for beginners.
- Mid-Range ($60–$120): Models such as the Rigol DP832A provide better regulation, lower noise, and enhanced safety. Ideal for professionals doing daily repairs.
- Premium ($120+): High-end supplies like the Keysight E36300 series deliver lab-grade accuracy and communication interfaces (USB/GPIB), but are typically over-specified for phone work.
Best value lies in the $70–$100 range, where reliability and precision meet affordability. Always compare warranty length and customer support availability.
| Model | Max Voltage | Max Current | Display | Protection | Price Range |
|---|---|---|---|---|---|
| Korad KA3005D | 30V | 5A | Digital | OVP, OCP | $55–$65 |
| Rigol DP832A | 30V | 3.2A/channel | Digital (color) | OVP, OCP, OTP | $180–$220 |
| Siglent SPD3303X | 32V | 3.2A/channel | Digital | OVP, OCP, OPP | $120–$150 |
Customer Feedback Synthesis
Analysis of user reviews across major retailers and tech forums reveals consistent patterns:
Common Praises:
- “The ability to set current limit saved me from frying a motherboard.”
- “Digital display makes it easy to see tiny voltage changes.”
- “Solid construction and reliable output after months of use.”
Frequent Complaints:
- “Cheap clone models showed incorrect voltage—damaged my test device.”
- “Fan noise became annoying after prolonged use.”
- “Binding posts loosened over time, causing intermittent contact.”
One recurring theme is the discrepancy between advertised and actual performance in budget units. Users recommend verifying specifications through independent testing channels like EEVblog or Reddit’s r/electronics.
Sourcing & Supplier Tips
Buy from authorized distributors or reputable electronics suppliers such as Digi-Key, Mouser, or directly from manufacturer websites. Avoid third-party marketplaces where counterfeit or rebranded units are common.
For bulk purchases (e.g., equipping a repair shop), consider contacting suppliers for educational or volume discounts. Some brands offer trade-in programs or extended warranties for registered businesses.
Before accepting shipment, inspect packaging for tampering and verify serial numbers match documentation. Test the unit upon arrival using a multimeter to confirm output accuracy at various settings.
Maintenance, Safety & Legal Considerations
To ensure longevity and safety:
- Keep ventilation clear—do not stack items on top of the unit.
- Clean dust from vents periodically to prevent overheating.
- Use fused leads or inline fuses when connecting to phone boards.
- Store in dry environment away from conductive debris.
Safety-wise, always double-check polarity before connecting to a device. Reversed voltage can instantly destroy integrated circuits.
Legally, ensure your power supply meets local electrical safety standards (e.g., CE, UL, FCC). While enforcement for personal use is rare, commercial repair shops may be liable in case of fire or injury caused by non-compliant equipment.
Conclusion
A quality dc supply for phone repair enhances diagnostic capability, improves success rates, and protects expensive components from avoidable damage. Focus on adjustable voltage, accurate digital readouts, current limiting, and proven brand reliability. While entry-level models can suffice for occasional use, investing in a mid-range unit from a trusted manufacturer delivers long-term value and peace of mind. Whether you’re troubleshooting a no-power issue or performing advanced board work, a dependable DC power supply is a cornerstone tool for any serious phone repair setup.
FAQs
Can I use a DC supply to test iPhone logic boards?
Yes. Disconnect the battery and apply 3.8V gradually while monitoring current. Sudden spikes indicate shorts.
What’s the safest way to connect a DC supply to a phone board?
Use precision tweezers or pogo pins with fused test leads. Double-check polarity and start at 0V, slowly increasing.
Do I need a dual-output supply for phone repair?
Generally no. Most smartphones operate on a single main voltage rail. Dual outputs are beneficial for complex tablets or laptops.
How do I know if my DC supply has too much ripple?
Use an oscilloscope to measure output. If ripple exceeds 10mV peak-to-peak under load, it may affect sensitive circuits.
Are cheap DC power supplies worth buying?
Proceed with caution. Many sub-$40 units have inaccurate displays or lack proper protection circuits. Research verified reviews before purchasing.
