When choosing the right CNC multi-spindle drilling head, prioritize rigidity, spindle count, tool interface compatibility, and precision alignment—especially if you’re aiming to boost throughput in high-volume production of panels or structural components. The best option depends on your machine’s control system, required hole patterns, and material type. For example, a servo-driven, modular cnc multi spindle drill head with quick-change chucks suits dynamic job shops, while fixed-head units offer reliability for repetitive tasks. Always verify maximum RPM, cooling options, and service support before purchasing.
About CNC Multi Spindle Drill Head

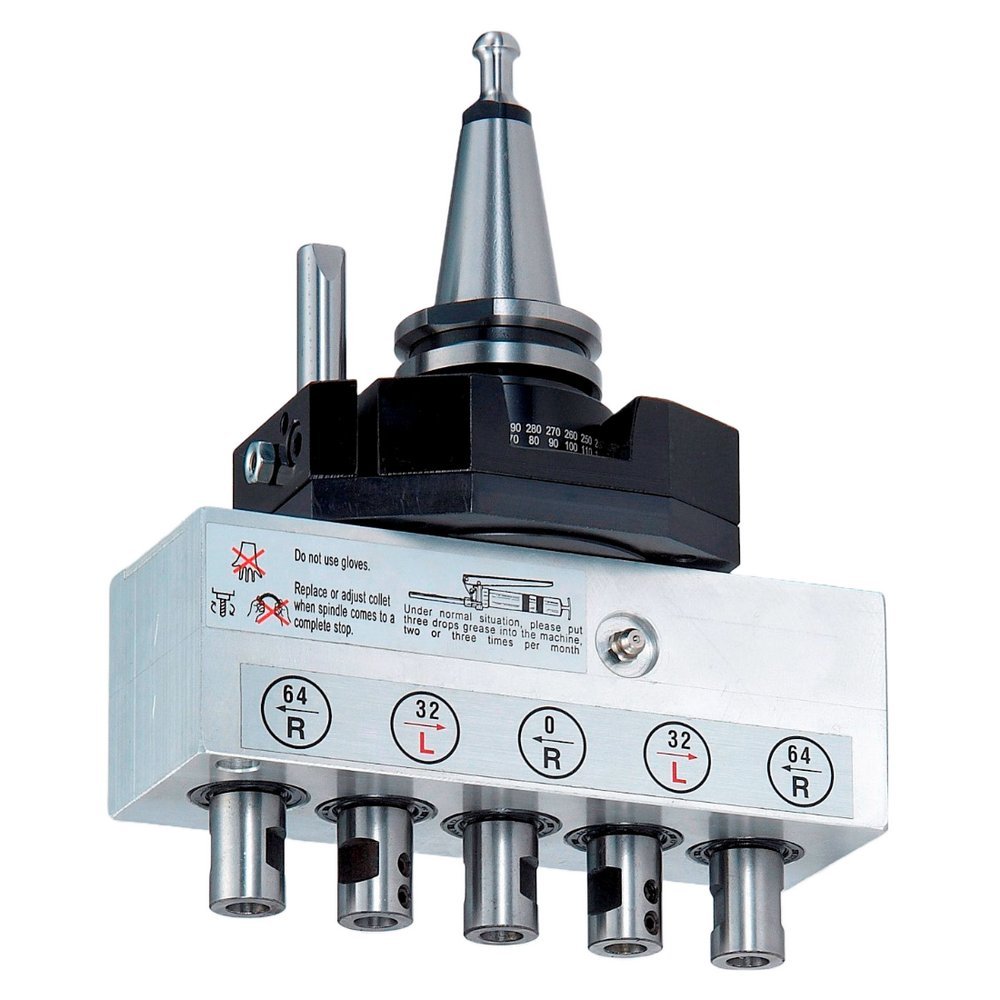

A CNC multi spindle drill head is a specialized attachment or integrated unit used in computer numerical control (CNC) machining centers to drill multiple holes simultaneously. Unlike single-spindle systems that process one hole at a time, these heads feature two or more rotating spindles arranged in a fixed or configurable pattern. This allows manufacturers to significantly reduce cycle times, especially in industries like cabinetry, aerospace panel fabrication, furniture manufacturing, and construction steelwork 1.
These drill heads are typically mounted on gantry-style CNC routers, beam drills, or dedicated drilling lines. They can be either fixed-configuration (where spindle positions are static) or adjustable (allowing repositioning via manual or automated mechanisms). Some advanced models integrate with the main CNC controller, enabling real-time changes to depth, speed, and feed rate per spindle.
Why CNC Multi Spindle Drill Head Is Gaining Popularity
The growing demand for faster production cycles and tighter tolerances has driven widespread adoption of CNC multi-spindle drilling systems. In sectors such as modular housing and industrial shelving, where hundreds of identical holes must be drilled per workpiece, using a multi-spindle solution can cut processing time by up to 70% compared to conventional methods.
Additionally, labor costs and skilled operator shortages make automation increasingly attractive. A well-integrated cnc multi spindle drill head reduces reliance on manual intervention and minimizes human error. Energy efficiency also improves since fewer passes are needed across the material surface.
Another factor behind their rising popularity is flexibility. Modern designs allow users to switch between different drilling patterns quickly—ideal for custom orders or batch production. As digital manufacturing expands, so does the need for scalable, precise tooling solutions that keep pace with design complexity.
Types and Variants
Understanding the various types of CNC multi spindle drill heads helps match capabilities to application needs. Below are the most common configurations:
1. Fixed Spindle Arrays
- Pros: High rigidity, excellent repeatability, lower maintenance, cost-effective for dedicated tasks.
- Cons: Limited flexibility; only suitable for consistent hole patterns.
- Best for: Mass production of standardized parts (e.g., door hinges, shelf brackets).
2. Adjustable/Modular Heads
- Pros: Spindle positions can be changed manually or via motorized sliders; adaptable to variable pitch requirements.
- Cons: Slightly reduced accuracy due to moving components; higher initial cost.
- Best for: Job shops handling diverse product lines or prototype development.
3. Servo-Controlled Independent Spindles
- Pros: Each spindle operates independently with programmable speed and depth; ideal for complex geometries.
- Cons: Expensive, requires sophisticated control integration and software support.
- Best for: Aerospace, automotive, or medical component manufacturing.
4. Turret-Based Multi-Head Systems
- Pros: Multiple heads mounted on a rotating turret; enables rapid tool changes and varied operations without retooling.
- Cons: Larger footprint, complex setup, not ideal for small workshops.
- Best for: High-end CNC machining centers performing combined milling and drilling.
Key Features and Specifications to Evaluate
To select the right cnc multi spindle drill head, assess the following technical parameters:
- Number of Spindles: Ranges from 2 to over 20. More spindles increase productivity but may require stiffer machine frames.
- Spindle Spacing: Check minimum and maximum center-to-center distances. Look for fine adjustment increments (e.g., 0.1 mm) for precision alignment.
- Maximum RPM: Should match your cutting tools’ recommended speeds. Common range: 3,000–15,000 RPM.
- Motor Power: Higher wattage (e.g., 1.5 kW+) ensures better performance in hard materials like stainless steel or composites.
- Cooling System: Internal coolant delivery prevents overheating and extends bit life—critical for continuous operation.
- Tool Holding Mechanism: Options include ER collets, hydraulic chucks, or SDS-style quick-release. Hydraulic offers superior concentricity.
- Rigidity & Housing Material: Cast iron or reinforced aluminum housings resist vibration and maintain alignment under load.
- Interface Compatibility: Must match your CNC machine’s mounting standard (e.g., ISO 30, BT30, HSK).
- Control Integration: Ensure compatibility with your CNC controller (Siemens, Fanuc, Mach3/4, etc.). Some models use standalone PLCs.
Pros and Cons
Advantages
- Increased Productivity: Drilling multiple holes in one pass drastically cuts cycle time.
- Improved Accuracy: Eliminates cumulative positioning errors from repeated single-hole drilling.
- Labor Savings: Reduces need for manual layout and secondary operations.
- Consistency: Ideal for maintaining uniform quality across large batches.
Limitations
- High Initial Cost: Premium models can exceed $10,000, especially with automation features.
- Machine Load: Adds weight and torque demands—verify your CNC frame can handle it.
- Setup Complexity: Alignment and calibration take time and expertise.
- Inflexibility (for fixed types): Not economical if your jobs vary widely in hole pattern.
How to Choose CNC Multi Spindle Drill Head
Follow this step-by-step guide to make an informed decision when buying a how to choose cnc multi spindle drill head:
- Define Your Application: Are you drilling plywood panels, metal flanges, or composite sheets? Material hardness affects spindle power and cooling needs.
- Determine Required Spindle Count: Analyze typical hole patterns. If most jobs have 6–8 evenly spaced holes, a 6- or 8-spindle head makes sense.
- Check Machine Compatibility: Confirm mounting interface, available power supply, and controller communication protocol. Mismatched interfaces lead to costly adapters or retrofitting.
- Evaluate Adjustment Needs: Will you reuse the same pattern daily, or change frequently? Opt for modular if variability is high.
- Assess Precision Requirements: For ±0.05 mm tolerance, look for preloaded bearings and thermal compensation features.
- Review Service and Support: Choose brands offering local technical assistance and spare parts availability. Downtime is expensive.
- Budget Realistically: Include installation, training, and potential upgrades in total cost of ownership.
- Avoid These Red Flags:
- No documentation or unclear specifications
- Unverified claims about “universal fit”
- Poor customer reviews regarding durability or alignment drift
- Lack of CE or ISO certification (if operating in regulated markets)
Price & Market Insights
Pricing varies widely based on configuration and brand origin:
- Entry-Level (2–4 spindle, fixed): $1,500–$4,000 — often sourced from Asia, suitable for light-duty woodworking.
- Mid-Range (adjustable, 6–12 spindle): $5,000–$9,000 — European or North American engineered units with decent service networks.
- Premium (servo-controlled, >12 spindle): $10,000–$25,000+ — used in aerospace or heavy industry, featuring full diagnostics and networking.
While cheaper options exist, consider long-term reliability. A $3,000 head failing every six months costs more than a $7,000 durable model lasting five years. Also, watch for hidden costs: shipping, import duties, and commissioning fees.
| Model Type | Spindle Count | Adjustability | Price Range | Ideal Use Case |
|---|---|---|---|---|
| Fixed Array | 2–8 | No | $1,500–$4,000 | Mass production of cabinets |
| Modular Adjustable | 6–12 | Yes (manual/motorized) | $5,000–$9,000 | Custom furniture shops |
| Servo-Controlled | 8–20+ | Full programmability | $10,000–$25,000 | Aerospace panel drilling |
Top-Seller & Competitive Analysis
Leading manufacturers include Homag, Biesse, SCM Group, and Chinese innovators like Weinor and KDT. Western brands emphasize precision and longevity, often backed by strong warranties. Asian suppliers offer competitive pricing but vary in quality control.
When evaluating top-sellers, focus on:
- Real-world uptime reports
- Availability of firmware updates
- User interface intuitiveness
- Integration with CAD/CAM workflows
For instance, Homag’s BOF series is praised for its robust build and seamless integration with their own CNC lines—but less flexible for third-party machines. Meanwhile, KDT’s adjustable heads provide good value for mid-tier woodworkers needing adaptability without enterprise-level budgets.
Customer Feedback Synthesis
Analysis of buyer reviews reveals recurring themes:
Common Praises:
- “Cut our drilling time in half on kitchen cabinet fronts.”
- “Alignment stayed true after six months of daily use.”
- “Easy to program once initial setup was complete.”
Frequent Complaints:
- “Took three weeks to get replacement seals—poor spare parts logistics.”
- “Instructions were poorly translated; had to hire a technician.”
- “Vibration increased after 8 months—suspect bearing wear.”
This highlights the importance of post-purchase support and clear documentation. Buyers value durability and ease of integration far more than flashy features.
Sourcing & Supplier Tips
Where you buy matters. Consider these sourcing strategies:
- OEM Direct: Best for warranty coverage and factory-trained support. Often higher price.
- Authorized Distributors: Offer regional service, demos, and financing. Verify credentials before purchase.
- Online Marketplaces (e.g., Alibaba): Can find budget options, but vet suppliers carefully. Request video demonstrations and sample certifications.
- Used Equipment Dealers: Viable for testing feasibility, but inspect thoroughly for bearing play and alignment accuracy.
If ordering in bulk, negotiate extended warranties or training packages. Always request test runs or references from existing customers in similar industries.
Maintenance, Safety & Legal Considerations
Proper upkeep ensures longevity and safe operation:
- Maintenance: Lubricate gears monthly, inspect belts/tensioners quarterly, calibrate alignment annually. Keep air filters clean if using pneumatic variants.
- Safety: Install emergency stop interlocks, guarding around rotating spindles, and dust extraction to prevent chip buildup. Train operators on lockout/tagout procedures.
- Legal Compliance: In the EU, ensure CE marking and conformity with Machinery Directive 2006/42/EC. In the U.S., follow OSHA guidelines for machine guarding and noise exposure limits.
Non-compliant equipment may void insurance or fail inspections. Always document maintenance logs and safety checks.
Conclusion
Selecting the right CNC multi spindle drill head involves balancing performance needs, budget, and operational context. Fixed arrays excel in repetitive tasks, while modular and servo-driven systems suit dynamic environments. Key considerations include spindle count, adjustability, compatibility, and after-sales support. Prioritize proven reliability over low upfront cost, and always validate specifications against your actual production demands. By following this guide, you’ll make a data-driven choice that enhances efficiency, precision, and profitability.
FAQs
Q: Can I retrofit a CNC multi spindle drill head onto my existing machine?
A: Yes, if your CNC router or machining center has sufficient structural rigidity, compatible mounting interface, and controller expandability. Consult the manufacturer or a qualified integrator first.
Q: What materials can a cnc multi spindle drill head handle?
A: Most models work with wood, MDF, plastics, aluminum, and mild steel. Harder alloys may require specialized coatings or lower feed rates.
Q: How do I maintain alignment accuracy over time?
A: Perform regular backlash checks, use laser alignment tools during setup, and tighten all mounting bolts periodically. Avoid sudden impacts during operation.
Q: Are there energy efficiency benefits?
A: Yes—drilling multiple holes in one pass reduces motor cycling and overall energy consumption compared to sequential single-spindle drilling.
Q: What should I check when receiving a new multi-spindle head?
A: Inspect for shipping damage, verify included accessories, test rotation smoothness, confirm electrical connections, and compare serial numbers to invoice.
