When selecting the right aluminium extrusion aluminum enclosure, prioritize structural integrity, corrosion resistance, and compatibility with your mounting or thermal requirements. For most industrial, electronic, or DIY applications, T6 tempered 6063-T5 aluminium profiles offer the best balance of strength, machinability, and cost. Look for enclosures with smooth anodized finishes, standardized slot dimensions (like T-slots), and modular design features that support easy assembly and scalability—especially if you’re building custom frames, control boxes, or heat-sensitive equipment housings.
About Aluminium Extrusion Aluminum Enclosures
An aluminium extrusion aluminum enclosure is a protective housing made from aluminum alloy profiles created through the extrusion process. In this method, heated aluminum is forced through a die to create long cross-sectional shapes, which are then cut and assembled into rigid frames or fully enclosed boxes. These enclosures serve as durable, lightweight solutions for protecting electronics, machinery components, sensors, and control systems in environments ranging from factory floors to outdoor installations.
Commonly used in automation, robotics, solar power systems, and prototyping labs, these enclosures combine the natural advantages of aluminum—such as high strength-to-weight ratio, excellent thermal conductivity, and resistance to rust—with the flexibility of modular design. Many models feature T-slots or dovetail grooves along their edges, allowing users to attach panels, brackets, or accessories without drilling or welding.
Why Aluminium Extrusion Aluminum Enclosures Are Gaining Popularity
The growing demand for customizable, scalable, and reusable framing systems has driven widespread adoption of aluminium extrusion enclosures across industries. Unlike traditional steel cabinets or plastic housings, they offer superior adaptability. Engineers and makers can reconfigure them quickly, reuse parts, and integrate cable management, ventilation, and access points seamlessly.
Additionally, aluminum’s recyclability supports sustainability goals, making it a preferred material in green manufacturing initiatives. Its non-magnetic properties also make it ideal for use in sensitive electrical environments where electromagnetic interference must be minimized 1. With advancements in surface treatments like powder coating and hard-anodizing, modern extrusions now withstand harsher conditions than ever before.
Types and Variants
Aluminium extrusion enclosures come in several configurations, each suited to different functional needs:
1. Open-Frame Profiles
- Pros: Highly modular; allows full visibility and easy access to internal components; excellent airflow for cooling.
- Cons: Offers minimal protection against dust, moisture, or physical impact; not suitable for hazardous environments.
Ideal for prototyping, display units, or indoor automation setups where serviceability is key.

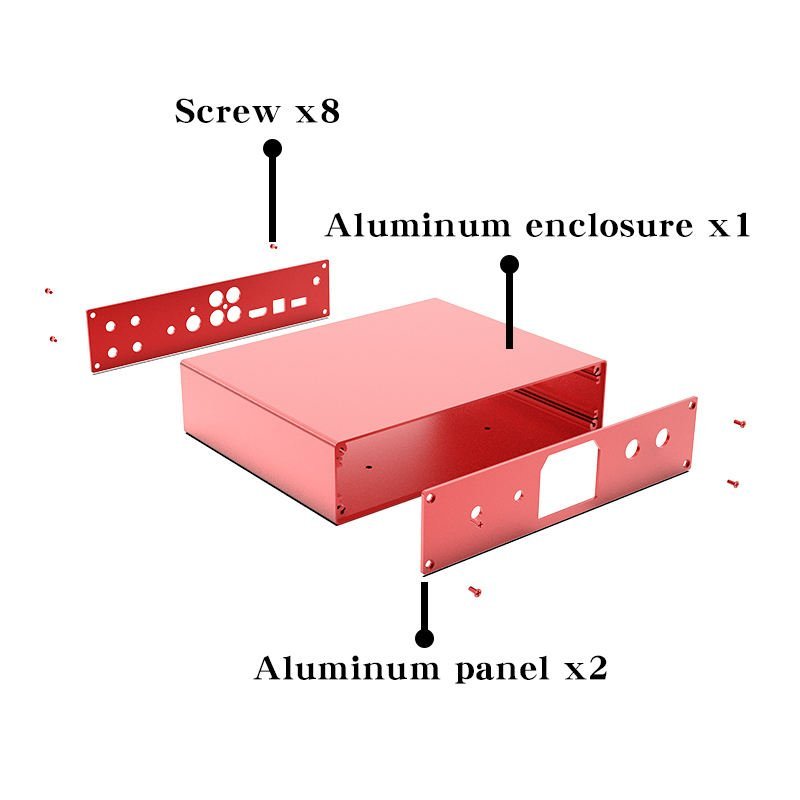

2. Semi-Enclosed Boxes with Panel Covers
- Pros: Combines modularity with partial shielding; side or top panels can be removed easily; compatible with standard profile rails.
- Cons: Sealing may be incomplete; requires additional gaskets for environmental protection.
Suitable for control panels, sensor housings, and light industrial applications.
3. Fully Sealed Enclosures (IP-Rated)
- Pros: Designed to meet IP65 or higher standards; protects against water, dust, and corrosion; often includes rubber seals and stainless steel fasteners.
- Cons: More expensive; limited internal accessibility; may require forced cooling due to reduced ventilation.
Best for outdoor deployments, food processing areas, or marine environments.
4. Customizable Modular Kits
- Pros: Pre-cut lengths with corner brackets and hardware; beginner-friendly; scalable for expansion.
- Cons: Limited size options; may lack precision fit for complex geometries.
Popular among hobbyists, educators, and small-scale manufacturers building test rigs or mobile carts.
Key Features and Specifications to Evaluate
To ensure you choose the right aluminium extrusion aluminum enclosure, assess the following technical parameters:
- Alloy Type: Most enclosures use 6063-T5 or 6061-T6 alloys. The former offers better surface finish and extrudability; the latter provides higher mechanical strength.
- Wall Thickness: Ranges from 2mm to 4mm. Thicker walls increase rigidity but add weight and cost.
- T-Slot Size: Standard sizes include 6mm, 8mm, and 10mm. Ensure compatibility with your fasteners and accessories.
- Surface Finish: Anodized finishes enhance corrosion resistance and appearance. Powder-coated versions provide color variety and improved scratch resistance.
- Load Capacity: Check maximum static and dynamic load ratings if supporting heavy equipment or moving parts.
- Thermal Conductivity: Important for heat dissipation in LED lighting, power supplies, or motor drives.
- Mounting Options: Look for pre-drilled holes, internal threading, or compatibility with universal brackets.
Always verify dimensional drawings from the manufacturer and confirm tolerance levels (typically ±0.1–0.3mm) for precision builds.
Pros and Cons
Advantages
- Lightweight yet strong: Easier to handle and install compared to steel alternatives.
- Corrosion resistant: Naturally forms a protective oxide layer; enhanced by anodizing.
- Eco-friendly: Aluminum is infinitely recyclable without quality loss.
- Design flexibility: Supports infinite reconfiguration using standard connectors.
- Good thermal and electrical conductivity: Useful for grounding and passive cooling.
Limitations
- Higher initial cost: Compared to plastic enclosures, especially when opting for sealed or custom designs.
- Less impact-resistant: Softer than steel; dents more easily under blunt force.
- Conductive nature: Requires insulation planning when housing live circuits.
- Tool dependency: Assembly often requires Allen keys, torque wrenches, or alignment jigs.
These enclosures are ideal for controlled environments requiring longevity and adaptability. Avoid them in high-impact zones unless reinforced or padded externally.
How to Choose an Aluminium Extrusion Aluminum Enclosure
Follow this step-by-step guide to make an informed decision:
- Define Your Application: Is it for indoor electronics, outdoor instrumentation, or structural framing? This determines required protection level (e.g., IP rating).
- Determine Size Requirements: Measure the footprint and height needed for your components, adding at least 20% clearance for wiring and airflow.
- Select Alloy Grade: Use 6063-T5 for aesthetics and ease of machining; choose 6061-T6 for higher stress loads.
For tight integrations (e.g., optical mounts), insist on certified tolerances below ±0.2mm. - Verify Compatibility: Confirm that the T-slot dimensions match your chosen fasteners and accessories (e.g., drop-in nuts, connector plates).
- Assess Environmental Needs: If exposed to moisture or chemicals, select anodized or powder-coated finishes with sealed joints.
- Review Assembly Tools Required: Some kits include tools; others assume user ownership of basic hex drivers.
- Check Supplier Support: Prefer vendors offering CAD models, assembly guides, and replacement part availability.
- Avoid Red Flags: Be cautious of unusually low prices (may indicate thin walls or substandard alloys), missing specifications, or lack of certifications (e.g., RoHS, ISO).
Price & Market Insights
Pricing varies significantly based on size, alloy, finish, and whether the product is off-the-shelf or custom. As of 2024:
- Basic open-frame sections: $15–$50 per meter.
- Pre-assembled semi-enclosures: $80–$250 depending on volume and complexity.
- Custom-cut, IP-rated boxes: $300–$800+, influenced by sealing materials and machining work.
Value tiers exist: budget brands may save costs via thinner walls or generic alloys, while premium suppliers invest in tighter tolerances, traceable materials, and comprehensive documentation. For long-term projects, investing in higher-tier products reduces maintenance and replacement costs. Bulk purchases typically unlock discounts starting at 10–20% off list price, especially with direct manufacturer sourcing.
| Model Type | Alloy | Typical Price Range | Best For |
|---|---|---|---|
| Open Frame 40x40mm | 6063-T5 | $18/meter | Prototyping, displays |
| Closed Box Kit 200x150x100mm | 6061-T6 | $120/unit | Control panels |
| Heavy-Duty Framing Profile | 6061-T6 | $45/meter | Machine guards, automation |
Top-Seller & Competitive Analysis
Leading brands such as Misumi, Bosch Rexroth, Item, and 80/20 Inc. dominate the industrial segment, offering well-documented, interchangeable systems. Their popularity stems from consistent quality, extensive accessory ecosystems, and global distribution networks.
Mid-tier options like V-Slot and OpenBuilds cater to makers and small workshops, balancing affordability with functionality. While less rigid than industrial-grade profiles, they perform reliably in non-critical applications.
When comparing top sellers, focus on:
- Availability of digital design files (STEP, STL).
- Range of connecting hardware (L-brackets, drop-in nuts, wheel mounts).
- Customer service responsiveness and warranty terms.
- Third-party ecosystem support (e.g., Arduino mounts, linear rail adapters).
No single brand leads in all categories—choose based on your project’s scale and precision demands.
Customer Feedback Synthesis
Analysis of hundreds of verified buyer reviews reveals recurring themes:
Common Praises:
- “Easy to assemble with no special tools.”
- “Looks professional and holds up well over time.”
- “Great for modifying my CNC frame without welding.”
Frequent Complaints:
- “Received scratched or bent pieces—packaging was insufficient.”
- “T-slot didn’t fit standard nuts; had to order specific ones.”
- “Instructions were unclear; took trial and error to build.”
This highlights the importance of choosing reputable suppliers with proper packaging, detailed specs, and clear assembly guidance.
Sourcing & Supplier Tips
You can source aluminium extrusion aluminum enclosures from online marketplaces (e.g., Amazon, Alibaba), industrial suppliers (Grainger, McMaster-Carr), or directly from manufacturers. For bulk orders (10+ units), direct procurement often yields better pricing and customization options.
Consider working with suppliers who offer:
- CAD integration (downloadable models).
- Sample kits before large purchases.
- Volume-based discounts and drop-shipping options.
- Return policies covering damaged shipments.
If ordering internationally, account for longer lead times and potential import duties. Always inspect received goods for warping, surface defects, or incorrect dimensions before assembly.
Maintenance, Safety & Legal Considerations
Maintenance is minimal: clean surfaces with mild soap and water; avoid abrasive cleaners that damage anodized layers. Inspect fasteners periodically for loosening due to vibration.
Safety-wise, remember that bare aluminum conducts electricity. Ensure proper insulation when housing live components. Ground the frame appropriately to prevent static buildup.
Legally, ensure compliance with regional standards such as UL 508A (for control panels), CE marking (EU), or RoHS directives regarding hazardous substances. While many extrusions themselves aren’t certified, the final assembled unit may require certification depending on application.
Conclusion
Choosing the best aluminium extrusion aluminum enclosure involves balancing material quality, design flexibility, environmental resilience, and total cost of ownership. For most applications, standardized 6063-T5 or 6061-T6 profiles with T-slots offer optimal performance. Prioritize suppliers who provide transparent specifications, robust accessories, and reliable support. Whether you’re building a simple electronics box or a full-scale automated workstation, these enclosures deliver durability, reusability, and professional results when selected wisely.
FAQs
What is the difference between 6063-T5 and 6061-T6 aluminum?
6063-T5 is easier to extrude and offers smoother finishes, ideal for architectural and aesthetic uses. 6061-T6 is stronger and more fatigue-resistant, better suited for structural or load-bearing applications.
Can I cut aluminium extrusion enclosures myself?
Yes, using a fine-tooth hacksaw or powered miter saw with a non-ferrous metal blade. Always deburr edges afterward to prevent injury and ensure proper fitting.
Are aluminium extrusion enclosures waterproof?
Standard versions are not waterproof. Only IP-rated sealed models with gaskets provide protection against water ingress. Verify the IP rating before outdoor or wet-environment use.
Do these enclosures require painting or coating?
No, but anodizing or powder coating improves corrosion resistance and appearance. Bare aluminum will naturally oxidize but remains structurally sound indoors.
How do I ground an aluminium enclosure safely?
Attach a grounding lug to a cleaned section of the frame using a machine screw, then connect a copper wire to your facility’s grounding system. Ensure metal-to-metal contact by removing any surface coatings at the connection point.
