When selecting the right frp panel for water tank, prioritize panels made from high-quality fiberglass-reinforced polyester resin with UV stabilization and a gel-coated surface for long-term durability and water safety. For most residential and commercial installations, modular bolt-together FRP (fiberglass-reinforced plastic) panels offer superior corrosion resistance, ease of assembly, and structural integrity compared to traditional concrete or metal tanks 1. The ideal choice depends on your project’s size, environmental exposure, load requirements, and installation timeline. Panels ranging from 1m x 1m to 2m x 1m with thicknesses between 6mm and 12mm typically balance strength and cost-effectiveness for standard potable water storage needs.
About FRP Panel for Water Tank

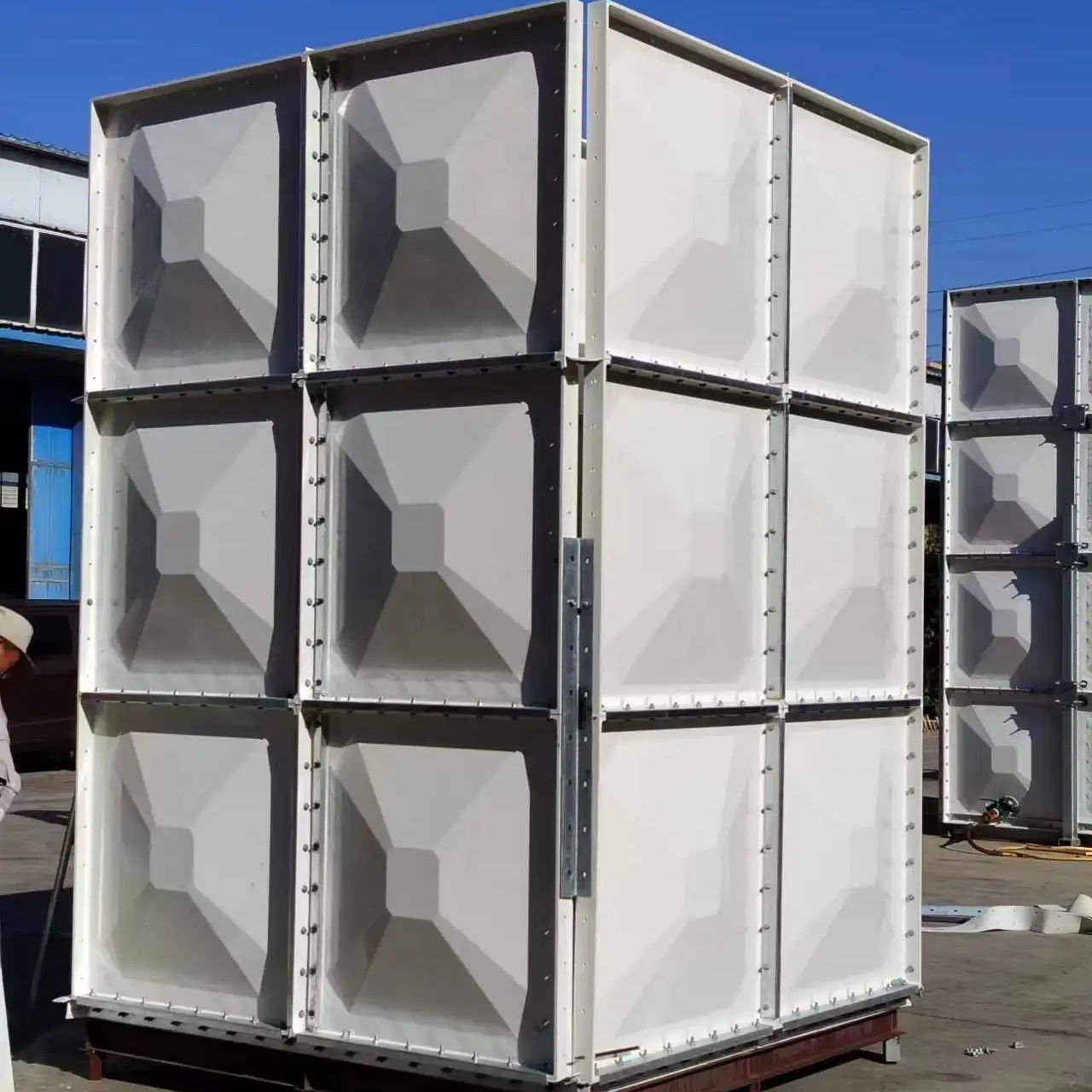

Fiberglass-reinforced plastic (FRP) panels for water tanks are prefabricated composite sections used to construct durable, leak-proof water storage systems. These panels consist of a sandwich structure: a core layer of reinforced polyester or vinyl ester resin embedded with glass fibers, often coated with a protective gel coat on both inner and outer surfaces. This construction provides excellent resistance to rust, corrosion, algae growth, and chemical degradation—making FRP ideal for storing drinking water, wastewater, or industrial fluids.
These modular panels are typically connected using stainless steel bolts, gaskets, and flanges, allowing for quick on-site assembly without welding or heavy machinery. They can be configured into rectangular, square, or custom-shaped tanks, suitable for rooftop installations, underground setups, or ground-level placements. Common applications include municipal water supply systems, hospitals, schools, hotels, agricultural irrigation, and emergency water reserves.
Why FRP Panel for Water Tank Is Gaining Popularity
The growing preference for frp panel for water tank solutions stems from several performance advantages over conventional materials like concrete, steel, or polyethylene. First, FRP does not corrode—even in humid, saline, or chemically aggressive environments—extending service life beyond 25 years with minimal maintenance 2.
Second, their lightweight nature reduces foundation requirements and transportation costs. Third, factory-controlled manufacturing ensures consistent quality, unlike site-cast concrete, which may suffer from curing issues or material variability. Additionally, FRP panels are non-conductive, non-magnetic, and resistant to electromagnetic interference—beneficial in sensitive environments.
Environmental sustainability is another driver. Many FRP systems are reusable and recyclable at end-of-life, and their long lifespan reduces replacement frequency and resource consumption. As urban infrastructure upgrades continue globally, especially in developing regions, demand for reliable, scalable water storage has boosted adoption of modular FRP technology.
Types and Variants
Not all FRP panels are created equal. Understanding the variations helps match the product to your specific application.
1. Standard Polyester-Based FRP Panels
- Pros: Cost-effective, widely available, good general-purpose performance.
- Cons: Less resistant to strong acids or solvents; may degrade under prolonged UV exposure if not properly coated.
Ideal for potable water storage in temperate climates where chemical exposure is low.
2. Vinyl Ester Resin FRP Panels
- Pros: Superior mechanical strength, better resistance to chemicals, heat, and hydrolysis.
- Cons: Higher cost than polyester variants.
Recommended for industrial wastewater, coastal areas with salt spray, or locations requiring enhanced durability.
3. Fire-Retardant FRP Panels
- Pros: Contain flame-inhibiting additives; meet fire safety codes in urban or high-density settings.
- Cons: Slightly reduced flexibility; higher price point.
Suitable for rooftop tanks near electrical equipment or in buildings with strict fire regulations.
4. UV-Stabilized Panels
- Pros: Designed for outdoor use with additives that prevent yellowing, chalking, and resin breakdown.
- Cons: Require periodic inspection of gel coat integrity.
Essential for exposed installations where sunlight is constant.
Key Features and Specifications to Evaluate
To make an informed decision when choosing how to choose frp panel for water tank, assess these critical parameters:
- Resin Type: Confirm whether it’s orthophthalic polyester (basic), isophthalic polyester (enhanced), or vinyl ester (premium). Ask for technical data sheets (TDS) from suppliers.
- Fiber Reinforcement: Look for woven roving or multi-axial fabric layers. Higher fiber content increases tensile strength.
- Gel Coat Thickness: Minimum 0.3–0.5 mm recommended to prevent micro-cracking and water permeation.
- Panel Dimensions & Thickness: Thicker panels (e.g., 8–12 mm) suit larger tanks (>50,000 L). Smaller tanks may use 6 mm panels.
- Flange Design: Double-flanged edges with drilled holes ensure secure bolting. Check for flatness and alignment tolerance.
- Gasket Material: EPDM or neoprene gaskets provide watertight seals and resist aging.
- Load Rating: Verify compressive and flexural strength (e.g., ASTM D790 standards). Panels should support full water load plus wind/snow loads if elevated.
- Certifications: NSF/ANSI 61 or equivalent indicates suitability for drinking water contact.
Always request independent test reports or third-party certifications, especially for large-scale or public health-related projects.
Pros and Cons
Advantages
- Corrosion-resistant: Unlike steel, FRP won’t rust or pit.
- Lightweight: Easier handling and lower transport costs.
- Modular design: Enables rapid assembly and future expansion.
- Smooth interior: Inhibits biofilm and sediment buildup.
- Long service life: Often exceeds 25 years with proper installation.
Limitations
- Initial cost: Higher upfront investment than galvanized steel or concrete blocks.
- Impact sensitivity: Can crack under sharp impacts during handling.
- Quality variance: Performance depends heavily on manufacturing process and resin quality.
- Repair complexity: Field repairs require skilled technicians and compatible resins.
FRP panels are best suited for permanent or semi-permanent water storage. Avoid them for temporary or frequently relocated setups unless designed for disassembly.
How to Choose FRP Panel for Water Tank
Follow this step-by-step guide to ensure you select the right product:
- Define Your Capacity Needs: Calculate required volume based on daily usage, peak demand, and backup duration. Oversizing by 10–15% accounts for evaporation and maintenance downtime.
- Evaluate Site Conditions: Consider location (indoor/outdoor), seismic zone, wind exposure, and accessibility for crane-free installation.
- Select Resin Type: Use vinyl ester for harsh environments; standard polyester suffices for clean water in stable conditions.
- Check Panel Specifications: Ensure thickness and reinforcement match expected hydrostatic pressure. Larger tanks need thicker walls or internal bracing.
- Verify Compliance: Confirm compliance with local water safety standards (e.g., NSF, WRAS, or national equivalents).
- Review Supplier Reputation: Prioritize manufacturers with ISO 9001 certification and documented case studies.
- Inspect Sample Panels: If possible, examine edge finish, gel coat uniformity, and flange precision before bulk ordering.
- Avoid Red Flags: Be cautious of unusually low prices, vague spec sheets, lack of test reports, or refusal to provide references.
Ask about warranty terms—reputable brands offer 10+ years against delamination or leakage.
Price & Market Insights
Pricing varies significantly based on resin type, thickness, and region. As of 2024:
- Budget Tier ($80–$120/m²): Polyester-based, 6mm thick, basic gel coat. Suitable for small rural tanks.
- Mid-Range ($120–$180/m²): Isophthalic resin, 8–10mm thickness, UV protection. Ideal for urban residential/commercial use.
- Premium ($180–$250+/m²): Vinyl ester, fire-retardant additives, NSF-certified, 12mm+. Used in hospitals, labs, or coastal zones.
While premium panels cost more initially, they often deliver better lifecycle value due to longer service life and lower maintenance. Bulk purchases (e.g., >100 m²) may qualify for discounts of 10–15%. Always compare total installed cost—not just panel price—factoring in labor, foundations, and ancillary components.
| Model Type | Resin | Thickness | Water Safety Certified | Approx. Price/m² |
|---|---|---|---|---|
| Economy Series | Orthophthalic Polyester | 6 mm | No | $95 |
| Standard Grade | Isophthalic Polyester | 8 mm | Yes (NSF 61) | $150 |
| Industrial Pro | Vinyl Ester | 12 mm | Yes (NSF + WRAS) | $230 |
Top-Seller & Competitive Analysis
Leading brands such as ZCL Composites, Decca Composites, and Mehta Fibreglass dominate global markets due to consistent quality and technical support. Top-selling models typically feature isophthalic resin, double-sided gel coating, and pre-drilled flanges. Buyers favor kits that include gaskets, bolts, and assembly instructions.
When comparing products, focus on published mechanical properties rather than brand name alone. Some regional manufacturers offer comparable performance at lower prices but may lack international certifications. Always verify whether the quoted price includes accessories or requires separate procurement.
Customer Feedback Synthesis
Analysis of user reviews across trade platforms and contractor forums reveals common themes:
Positive Feedback:
Customers consistently praise ease of installation, long-term leak-free performance, and resistance to algae. Many highlight faster project completion compared to concrete tanks.
Common Complaints:
Issues usually stem from damaged panels during shipping, missing hardware, or inconsistent hole alignment. A few users reported premature cracking due to improper tightening of bolts or inadequate support framing. Poor communication from smaller suppliers was also noted.
Recommendation: Inspect deliveries immediately, follow torque specifications during assembly, and ensure full perimeter support on flat, level bases.
Sourcing & Supplier Tips
FRP panels can be sourced directly from manufacturers, authorized distributors, or online B2B marketplaces. For large projects, consider working with suppliers who offer engineering support and site surveys.
- For Bulk Orders: Negotiate freight-inclusive pricing and confirm lead times. Request samples before committing.
- Distributor vs. Manufacturer: Distributors may offer faster delivery; manufacturers provide customization options.
- Verification Steps: Confirm business license, review past projects, and ask for client references.
- Warranty & Returns: Clarify coverage scope and return policy for defective units.
If importing, check customs regulations for composite materials and ensure documentation includes material safety data sheets (MSDS).
Maintenance, Safety & Legal Considerations
Proper maintenance extends tank life. Inspect annually for surface cracks, loose bolts, or gasket wear. Clean interiors every 1–2 years using non-abrasive tools to preserve gel coating. Avoid chlorine concentrations above 2 ppm unless specified by the manufacturer.
Safety-wise, never stand on unsupported panels. Use fall protection when assembling elevated tanks. Ground all metallic fittings to prevent static discharge.
Legally, ensure the system complies with local building codes and water quality regulations. In many jurisdictions, potable water tanks must be certified to NSF/ANSI 61 or equivalent. Non-compliant installations may void insurance or fail inspections.
Conclusion
Choosing the right frp panel for water tank involves balancing material quality, structural design, regulatory compliance, and long-term value. High-performance panels made with isophthalic or vinyl ester resins, adequate thickness, and proper certifications offer the best reliability for critical water storage needs. While initial costs are higher than alternatives, the durability, low maintenance, and safety benefits justify the investment for most permanent installations. Always validate supplier claims with technical documentation and prioritize products tested for potable water use when applicable.
FAQs
Q: Are FRP panels safe for drinking water?
A: Yes, if certified to NSF/ANSI 61 or similar standards. Always verify certification before installation.
Q: Can I install FRP panels myself?
A: Basic installations are feasible with proper tools and instructions, but complex or large tanks benefit from professional assembly.
Q: How long do FRP water tanks last?
A: With proper installation and maintenance, FRP tanks typically last 25 years or more.
Q: What causes FRP panels to crack?
A: Impact damage, uneven support, over-tightened bolts, or poor-quality resin can lead to cracking.
Q: Do FRP tanks need painting?
A: No—if panels have a UV-stabilized gel coat, additional paint is unnecessary and may interfere with inspections.
