When selecting flanges, pipes, elbows, and reducers for industrial or commercial piping systems, the right choice depends on material compatibility, pressure ratings, dimensional accuracy, and application environment. For most standard applications requiring durability and leak-free connections, carbon steel welded fittings paired with ANSI-rated flanges offer optimal reliability and cost-efficiency. Understanding how to choose flanges pipes elbows reducers based on system requirements—not just price—ensures long-term performance and safety in fluid transport systems.

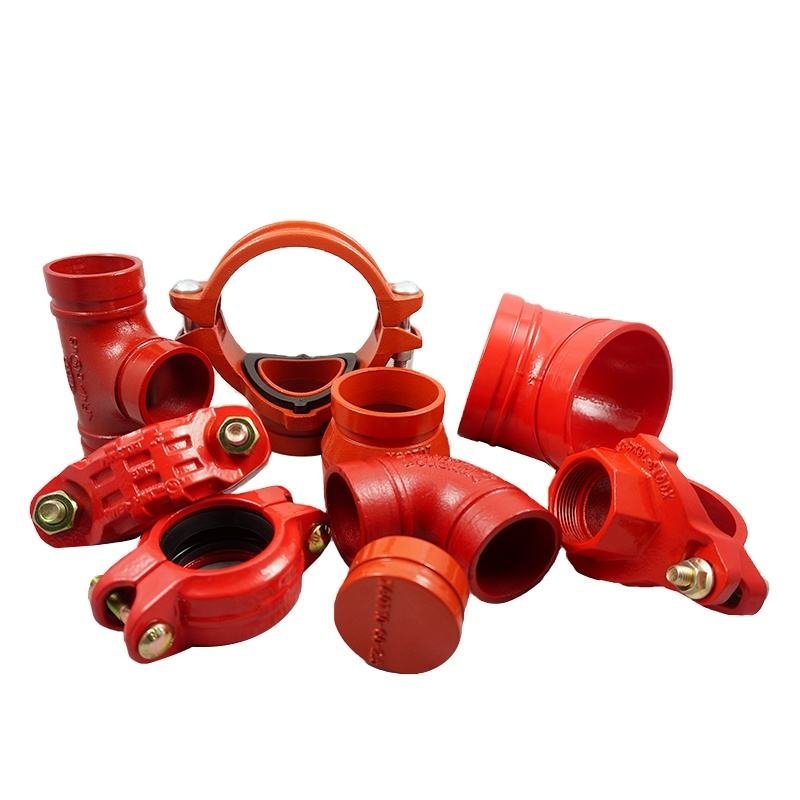

About Flanges, Pipes, Elbows, and Reducers
Flanges, pipes, elbows, and reducers are fundamental components of any piping system used to transport liquids, gases, or slurries across industries such as oil and gas, water treatment, chemical processing, HVAC, and manufacturing. Each component plays a distinct role:
- Flanges: Flat or raised rims used to connect pipes, valves, pumps, and other equipment via bolts. They allow for easy assembly, disassembly, and maintenance 1.
- Pipes: Hollow tubes that carry media; they come in various diameters, wall thicknesses (schedules), and materials.
- Elbows: Curved segments that change the direction of flow—common angles include 90° and 45°.
- Reducers: Fittings that connect two different pipe sizes, either concentric (symmetrical) or eccentric (offset).
Together, these elements form modular, scalable networks capable of handling high pressures and temperatures while allowing flexibility in routing and service access.
Why Flanges, Pipes, Elbows, and Reducers Are Gaining Popularity
The demand for standardized, durable piping components continues to grow due to increased infrastructure development, stricter safety regulations, and the expansion of energy and water management projects globally. Modular designs using flanges and fittings reduce on-site welding, speeding up installation and minimizing failure risks. Additionally, pre-fabricated systems using ANSI/ASME-compliant flanges and buttweld elbows improve consistency and inspection readiness 2. This shift supports faster project completion and easier compliance audits, making these components essential in modern engineering practices.
Types and Variants
Different types serve specific purposes depending on pressure, alignment, and environmental conditions.
Flange Types
- Weld Neck Flange: Long tapered hub provides strength under high pressure and thermal cycling. Best for critical applications. Requires welding.
- Slip-On Flange: Easy to install and align; less expensive than weld neck. Lower fatigue strength; not ideal for extreme conditions.
- Socket Weld Flange: Used for small-bore, high-pressure lines. Good for repeated stress cycles but limited by gap corrosion risk.
- Blind Flange: Seals the end of a pipeline. Useful for future expansion points or pressure testing.
- Lap Joint Flange: Paired with a stub end; allows rotation for bolt alignment. Ideal for systems needing frequent dismantling.
Pipe Materials and Schedules
Pipes are categorized by material (carbon steel, stainless steel, PVC, etc.) and schedule (SCH 40, SCH 80, etc.), which defines wall thickness. Thicker walls handle higher internal pressure.
Elbow Variants
- 90-Degree Elbow: Most common; changes flow direction sharply.
- 45-Degree Elbow: Gentler turn; reduces turbulence and pressure drop.
- Long Radius vs. Short Radius: Long radius (1.5× pipe diameter) minimizes friction loss; short radius is compact but increases resistance.
Reducer Types
- Concentric Reducer: Centerline-aligned; used in vertical or horizontal runs where alignment matters.
- Eccentric Reducer: One side flat; prevents air pockets in horizontal pipelines carrying fluids.
Key Features and Specifications to Evaluate
To ensure compatibility and longevity, assess the following factors when evaluating flanges, pipes, elbows, and reducers:
- Material Compatibility: Match the fitting material to the transported medium. Stainless steel resists corrosion from chemicals; carbon steel suits hydrocarbons; PVC works well in drainage.
- Pressure Rating (Class): Flanges are rated by class (e.g., Class 150, 300, 600). Higher classes withstand greater pressure and temperature 3.
- Dimensional Standards: Ensure adherence to ASME B16.5 (flanges), B16.9 (buttweld fittings), or ISO standards for interchangeability.
- Connection Type: Decide between threaded, socket weld, buttweld, or flanged connections based on accessibility and system integrity needs.
- Face Finish and Gasket Compatibility: Raised face (RF), flat face (FF), or ring-type joint (RTJ)—each requires specific gaskets.
- Sizing Accuracy: Verify nominal pipe size (NPS) and outside diameter (OD) match existing system components.
- Surface Coating: Galvanized or epoxy-coated fittings resist rust in outdoor or humid environments.
Pros and Cons
Advantages:
- Modular design enables flexible layout and easy maintenance.
- Standardized parts simplify sourcing and replacement.
- High-pressure and high-temperature resilience with proper selection.
- Reduced downtime through bolted (flanged) joints instead of permanent welds.
Disadvantages:
- Flanged joints require precise alignment and bolting torque.
- More potential leak points compared to fully welded systems.
- Initial cost may be higher than basic threaded solutions.
- Requires adequate space for disassembly and gasket access.
These components are best suited for industrial settings requiring routine inspection or modification. They are less ideal for tight spaces or low-budget residential plumbing where simpler solutions suffice.
How to Choose Flanges, Pipes, Elbows, and Reducers
Selecting the right components involves a structured decision-making process:
- Define System Requirements: Determine operating pressure, temperature range, and fluid type. Corrosive media may necessitate stainless steel or specialty alloys.
- Choose Material Wisely: Carbon steel offers strength at lower cost; stainless steel provides superior corrosion resistance. Avoid mixing dissimilar metals to prevent galvanic corrosion.
- Select Appropriate Flange Type: Use weld neck flanges for high-stress zones; slip-on flanges for non-critical, low-vibration areas.
- Verify Dimensional Compliance: Confirm NPS, schedule, and facing dimensions follow ASME or ISO standards. Mismatched sizes lead to leaks or failed inspections.
- Assess Installation Environment: Outdoor installations benefit from coated or weather-resistant materials. Underground setups may require cathodic protection.
- Check Certification and Traceability: Look for mill test reports (MTRs) and certifications like API, ASTM, or PED compliance, especially in regulated industries.
- Avoid Risky Shortcuts: Do not purchase unmarked or uncertified fittings. Counterfeit products often fail prematurely under pressure.
Price & Market Insights
Prices vary widely based on material, size, and certification level:
- Carbon steel flanges (2″ Class 150): $10–$30 each.
- Stainless steel buttweld elbows (2″ Sch 40): $25–$60.
- PVC reducers (1″ to 3/4″): Under $5.
- Large-diameter alloy steel reducers: Can exceed $500.
Budget options exist, but savings should never compromise safety or code compliance. In industrial contexts, investing in certified, traceable components reduces lifecycle costs through fewer failures and easier regulatory approval. Bulk purchases from reputable suppliers typically offer better per-unit pricing without sacrificing quality.
| Product Type | Typical Material | Size Range | Avg. Price (USD) | Best Use Case |
|---|---|---|---|---|
| Weld Neck Flange | Carbon Steel | 1″ – 24″ | $15 – $400 | High-pressure steam lines |
| 90° Long Radius Elbow | Stainless 304 | 1/2″ – 12″ | $8 – $200 | Chemical transfer systems |
| Concentric Reducer | CS, Sch 40 | 2″ x 1.5″ | $12 – $35 | Vertical pump discharge |
| Slip-On Flange | SS 316 | 1″ – 10″ | $20 – $350 | Water treatment plants |
Customer Feedback Synthesis
Analysis of buyer reviews reveals consistent themes:
- Positive Feedback: Users appreciate precise tolerances, clear markings, and included documentation (like MTRs). Stainless steel elbows praised for smooth interior finish reducing clogging.
- Common Complaints: Some report receiving incorrect sizes or missing gaskets. Others note poor surface finish on budget carbon steel flanges leading to sealing issues.
- Installation Notes: Buyers emphasize the importance of checking dimensions upon delivery and using calibrated torque tools for bolting flanges.
Overall satisfaction correlates strongly with supplier reliability rather than brand alone.
Sourcing & Supplier Tips
Procurement strategy affects both cost and quality:
- Buy from suppliers who provide full product traceability and compliance documents.
- For large projects, consider working directly with manufacturers or authorized distributors to avoid counterfeits.
- Request samples before bulk ordering to verify fit, finish, and labeling.
- Inspect incoming shipments for damage, correct part numbers, and standard markings (e.g., ASTM A105, ASME B16.5).
- Explore global sourcing cautiously—while offshore suppliers can offer competitive pricing, shipping delays and inconsistent quality control remain risks.
Maintenance, Safety & Legal Considerations
Proper upkeep ensures safe operation:
- Inspect flange joints periodically for leaks, bolt loosening, or gasket degradation.
- Retorque bolts after thermal cycling or system startup.
- Follow lockout/tagout (LOTO) procedures during maintenance.
- In regulated sectors (oil & gas, pharmaceuticals), ensure all components meet applicable codes such as ASME B31.3 (process piping) or local pressure equipment directives.
- Dispose of old or damaged fittings according to environmental regulations, especially if coated or made from hazardous alloys.
Conclusion
Choosing the right flanges, pipes, elbows, and reducers requires balancing technical specifications, environmental demands, and long-term reliability. Prioritize certified materials, correct pressure ratings, and dimensional accuracy over upfront cost savings. Whether building a new pipeline or replacing a section, following industry standards and verifying supplier credentials ensures your system performs safely and efficiently. By understanding what to look for in flanges pipes elbows reducers, buyers can make informed decisions that support operational continuity and regulatory compliance.
FAQs
What is the difference between a concentric and eccentric reducer?
Concentric reducers taper symmetrically and maintain centerline alignment, ideal for vertical pipes. Eccentric reducers have one flat side to prevent air trapping, commonly used in horizontal liquid lines.
Can I mix stainless steel and carbon steel fittings?
Not recommended due to risk of galvanic corrosion. Always use dielectric unions or insulating gaskets if dissimilar metals must connect.
How do I know what flange class I need?
Refer to your system’s maximum operating pressure and temperature. Use ASME B16.5 pressure-temperature charts to select the appropriate class (e.g., Class 300 for moderate-high pressure).
Are threaded fittings as strong as welded ones?
No. Threaded connections are generally limited to low-pressure, non-critical applications. Buttweld fittings offer superior strength and leak resistance in demanding environments.
Where can I find dimension charts for elbows and reducers?
Official ASME B16.9 and B16.5 documents provide standard dimensions. Reputable suppliers also publish downloadable specs online.
