When selecting a waterproof DC jack, prioritize models with IP67 or higher ingress protection ratings, robust metal housings, and corrosion-resistant contacts to ensure reliable power delivery in wet or outdoor conditions. A high-quality waterproof DC power jack prevents short circuits, extends device lifespan, and maintains connectivity in demanding environments like marine systems, solar setups, or industrial equipment. Look for jacks made from brass or stainless steel with rubber seals and secure locking mechanisms. Avoid cheap plastic-bodied connectors that degrade quickly under UV exposure or moisture. For most outdoor applications, an inline or panel-mount jack with a threaded nut and strain relief offers optimal durability and ease of installation.
About DC Jack Waterproof
A waterproof DC jack is a specialized electrical connector designed to maintain stable power connections while resisting water, dust, and environmental contaminants. Unlike standard barrel jacks, which can fail when exposed to moisture, waterproof variants incorporate sealing mechanisms such as rubber O-rings, silicone gaskets, or threaded couplings that create a tight barrier against the elements. These connectors are commonly used in applications where electronic devices operate outdoors or in high-humidity settings.
Typical use cases include security cameras, LED lighting systems, off-grid solar chargers, marine electronics, electric bicycles, and industrial sensors. The primary function remains the same as any DC power input: to accept a plug and transfer low-voltage direct current (usually 5V to 48V) into a device. However, the added protection makes them essential in environments where condensation, rain, splashing, or submersion could otherwise damage internal circuitry.
Why DC Jack Waterproof Is Gaining Popularity
The growing demand for durable outdoor electronics has driven increased adoption of waterproof DC jacks across consumer and commercial sectors. As more devices move beyond indoor spaces—such as smart home sensors, garden lighting, surveillance systems, and portable power stations—the need for reliable, weather-resistant power interfaces becomes critical.
Additionally, advancements in manufacturing have made these components more affordable and widely available. Users now expect long-term reliability without frequent replacements due to moisture-related failures. This shift aligns with broader trends toward sustainable design and reduced electronic waste. According to industry reports, the global market for waterproof connectors is expanding, fueled by growth in renewable energy, IoT deployments, and ruggedized consumer electronics 1.
Types and Variants
Waterproof DC jacks come in several configurations, each suited to different mounting styles and usage scenarios. Understanding the differences helps match the right type to your application.
1. Panel-Mount Waterproof DC Jacks
These are installed directly onto a device’s enclosure or chassis. They feature a threaded barrel that secures with a lock nut, compressing a rubber seal between the jack body and the panel surface.
- Pros: Secure fit, excellent sealing when properly tightened, easy access for plugging/unplugging.
- Cons: Requires precise hole drilling; improper installation can compromise waterproofing.

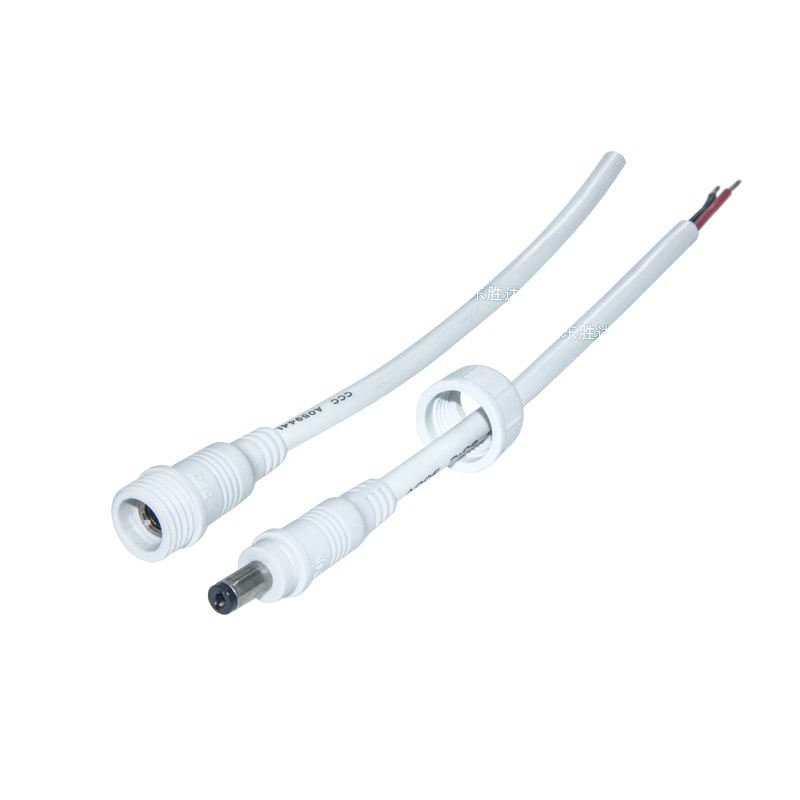

2. Inline (Cable-Mount) Waterproof DC Jacks
Built into a cable assembly, these connectors join two wires and are enclosed in a molded or metal housing with sealed ends.
- Pros: No panel modification needed; ideal for field repairs or temporary setups.
- Cons: Less robust than panel-mounted versions; potential weak point at wire entry if strain relief is poor.
3. Right-Angle vs. Straight Configurations
Some waterproof jacks are designed at a 90-degree angle to reduce stress on cables in tight enclosures.
- Pros: Saves space, reduces bending strain on connected cables.
- Cons: May not fit all orientations; slightly more expensive.
4. Multi-Pin Waterproof DC Connectors
Used when both power and signal lines must pass through a single sealed interface (e.g., for PoE-like functionality or feedback circuits).
- Pros: Consolidates wiring, improves system integration.
- Cons: Higher cost, less common, requires matching plugs.
Key Features and Specifications to Evaluate
To choose the best waterproof DC jack for your needs, consider the following technical and design factors:
Ingress Protection (IP) Rating
The IP code indicates resistance to solids and liquids. For outdoor use, aim for at least IP67 (dust-tight and withstands immersion in 1 meter of water for 30 minutes). IP68 offers even greater protection, suitable for prolonged submersion. Always verify test conditions, as depth and duration vary by manufacturer.
Voltage and Current Rating
Ensure the jack supports your system’s maximum voltage (commonly 12V, 24V, or 48V) and current load (measured in amps). Exceeding ratings leads to overheating and failure. Most waterproof jacks handle 2A–5A; check datasheets carefully.
Connector Size (Inner/Outer Diameter)
Standard sizes include 5.5mm outer diameter with 2.1mm or 2.5mm inner pin. Mismatched dimensions prevent proper contact. Confirm compatibility with your existing plug or power supply.
Material Quality
Metal-bodied jacks (brass, stainless steel, or aluminum alloy) offer superior durability and heat dissipation compared to plastic. Plated contacts (nickel or gold) resist oxidation and improve conductivity over time.
Sealing Mechanism
Look for double-seal designs: one at the plug interface and another where the jack meets the panel. High-quality rubber O-rings should be replaceable and resistant to UV, ozone, and temperature extremes.
Locking Mechanism
Screw-threaded or bayonet-style locks prevent accidental disconnection due to vibration or tugging. Essential for mobile or industrial applications.
Pros and Cons
Advantages:
- Prolongs device life by preventing moisture ingress
- Reduces maintenance and replacement costs
- Supports safe operation in harsh environments
- Available in various configurations for flexibility
Disadvantages:
- Higher initial cost than standard jacks
- May require precise installation to maintain seal integrity
- Limited availability of certain sizes or voltages
- Potential for cross-threading during assembly
Waterproof DC jacks are ideal for outdoor, marine, agricultural, or industrial uses but may be overkill for indoor-only devices with minimal exposure risk.
How to Choose a Waterproof DC Jack
Follow this step-by-step guide to make an informed decision:
- Determine Your Application Environment: Will it be exposed to rain, dust, salt spray, or submersion? Choose IP67 or higher accordingly.
- Check Voltage and Current Requirements: Match the jack’s electrical specs to your power source and load. Add a 20% safety margin.
- Select Mounting Type: Decide between panel-mount (permanent), inline (flexible), or cable-integrated options based on accessibility and enclosure design.
- Verify Connector Dimensions: Measure your existing plug or specify the correct size (e.g., 5.5 x 2.1 mm).
- Inspect Build Materials: Prefer metal housings and corrosion-resistant contacts for longevity.
- Evaluate Locking and Strain Relief: Ensure secure connection and protection against cable pulling.
- Review Manufacturer Documentation: Check for compliance certifications (e.g., RoHS, CE) and test data supporting IP claims.
- Avoid Red Flags: Steer clear of products with vague specifications, no IP rating, plastic bodies in outdoor roles, or missing safety certifications.
Price & Market Insights
Prices for waterproof DC jacks vary based on quality, materials, and brand reputation. Basic panel-mount models start around $1.50–$3.00 per unit in small quantities. High-end versions with IP68 ratings, gold-plated contacts, and stainless steel construction range from $5.00 to $12.00.
Volume buyers (e.g., OEMs or integrators) often negotiate prices below $1.00 per piece for bulk orders. Be cautious of extremely low-priced options (<$1.00), which may lack proper testing or use inferior seals. Value is typically found in mid-tier brands offering verified IP ratings and solid build quality without premium branding.
Consider total cost of ownership: a slightly more expensive jack that lasts five years may save money over cheaper alternatives replaced annually.
| Model Type | IP Rating | Current Rating | Typical Price (USD) | Best Use Case |
|---|---|---|---|---|
| Panel-Mount Brass Body | IP67 | 3A | $2.20 | Outdoor Cameras, Solar Lights |
| Inline Molded PVC | IP65 | 2A | $1.80 | Temporary Field Wiring |
| Stainless Steel IP68 | IP68 | 5A | $8.50 | Marine, Industrial Sensors |
Customer Feedback Synthesis
Analysis of user reviews across e-commerce platforms reveals consistent patterns in satisfaction and complaints.
Common Praises:
- “Finally found a jack that doesn’t corrode after six months outside.”
- “The threaded lock keeps the plug firmly in place, even on vibrating machinery.”
- “Easy to install and forms a perfect seal with the included O-ring.”
Frequent Complaints:
- “Plastic version cracked within three months of sun exposure.”
- “No actual IP rating listed—assumed waterproof but failed in light rain.”
- “Plug fits loosely, causing intermittent power loss.”
The most recurring issue involves misleading marketing: some sellers label connectors as “waterproof” without providing verifiable IP ratings or test evidence. Buyers recommend purchasing only from reputable suppliers who publish full specifications.
Sourcing & Supplier Tips
When sourcing waterproof DC jacks, consider both online component distributors and specialty electronics suppliers. Reputable platforms like Digi-Key, Mouser, or RS Components provide detailed datasheets, compliance information, and traceable product origins.
For bulk purchases, Alibaba or Made-in-China can offer competitive pricing, but due diligence is crucial. Request samples before large orders, verify material composition, and confirm IP certification through third-party labs if possible. Look for suppliers with responsive customer service and clear return policies.
If reselling or integrating into products, consider partnering with manufacturers offering custom labeling or tailored configurations. Always inspect received goods for consistency in threading, seal quality, and marking legibility.
Maintenance, Safety & Legal Considerations
Regular inspection enhances longevity. Check O-rings periodically for cracks or deformation and replace them as needed. Clean the jack and plug with a dry cloth; avoid solvents that might degrade rubber seals.
Ensure proper polarity alignment—many DC jacks are center-positive, but confirm with your device. Reversing polarity can destroy sensitive electronics.
From a regulatory standpoint, most waterproof DC jacks fall under general electronic component safety standards. While not always requiring specific certification, choosing RoHS-compliant and CE-marked parts ensures adherence to environmental and electromagnetic compatibility norms in many regions.
Never modify a jack to fit a mismatched plug—this compromises both performance and safety. When in doubt, consult an electrician or engineer familiar with low-voltage systems.
Conclusion
Choosing the right waterproof DC jack involves balancing environmental demands, electrical requirements, and build quality. Prioritize units with clear IP67 or IP68 ratings, metal housings, and reliable sealing mechanisms. Panel-mount and inline types serve different purposes, so select based on your installation needs. While higher-quality jacks come at a premium, their durability often justifies the investment. By evaluating specifications critically and avoiding unverified claims, you can ensure long-term reliability in outdoor or wet environments.
FAQs
What does IP67 mean for a waterproof DC jack?
IP67 means the connector is completely dust-tight and can withstand immersion in water up to 1 meter deep for 30 minutes without damage.
Can I use a waterproof DC jack indoors?
Yes, though it may be unnecessary unless humidity or spills are a concern. Indoor use won’t harm the jack, but standard connectors might be more cost-effective.
How do I know if a DC jack is truly waterproof?
Look for a published IP rating from the manufacturer, ideally with test details. Avoid products labeled “water-resistant” without specific certification.
Are all waterproof DC jacks the same size?
No, they come in various diameters (e.g., 5.5mm x 2.1mm, 3.5mm x 1.35mm). Always match the jack size to your plug to ensure proper fit and conductivity.
Do waterproof DC jacks require maintenance?
Minimal maintenance is needed. Periodically inspect the rubber seal for wear and clean the contact points if corrosion appears, especially in salty or humid environments.
