When choosing a lens edger machine with frame tracer, prioritize precision, automation level, and compatibility with your lab’s workflow. For labs processing diverse frame styles—including rimless or semi-rimless designs—a fully automatic lens edger with integrated frame tracer delivers consistent accuracy and reduced manual input 1. Look for models offering digital tracing, intuitive software, and support for both standard and freeform lenses. These features ensure efficient job handling, minimize waste, and improve turnaround time—critical for high-volume practices. A well-chosen lens edger with frame tracing capability can significantly enhance productivity while maintaining optical quality.
About Lens Edger Machine with Frame Tracer

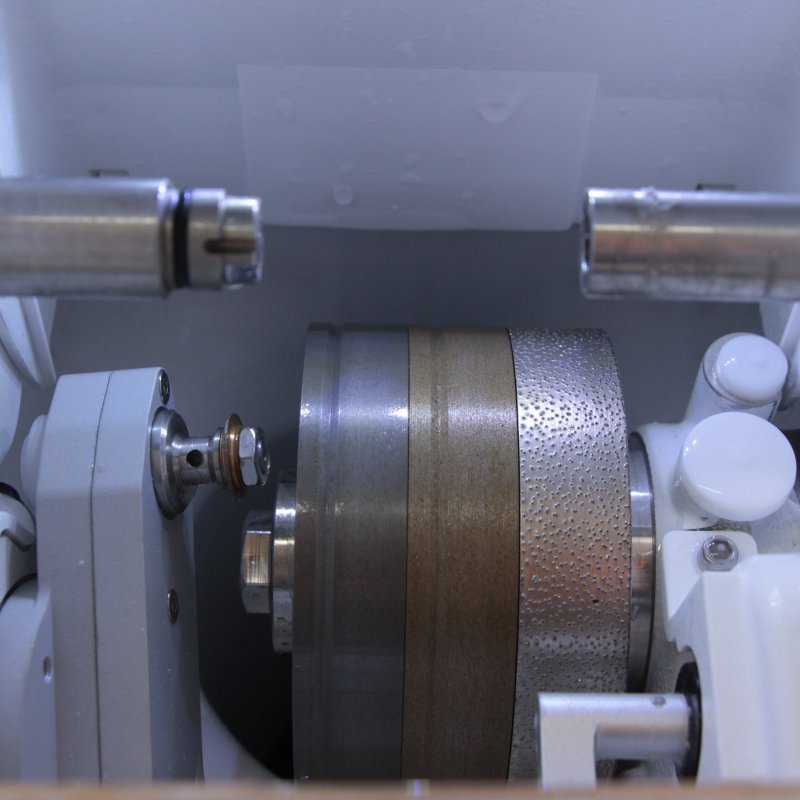

A lens edger machine with frame tracer is a specialized device used in optical laboratories to accurately shape ophthalmic lenses to fit within eyeglass frames. The integrated frame tracer component digitally captures the exact contour of a physical eyeglass frame or a demo lens, which the edger then uses as a template to cut the prescription lens precisely. This integration eliminates guesswork and reduces human error during the edging process.
These machines are commonly used in optometry clinics, independent optical labs, and large-scale manufacturing facilities. They serve both single-vision and progressive lens types, supporting materials like plastic, polycarbonate, and high-index substrates. By combining tracing and edging functions into one system, technicians achieve faster processing times and improved lens-to-frame alignment, especially important for complex geometries such as wraparound or asymmetric frames.
Why Lens Edger Machine with Frame Tracer Is Gaining Popularity
The demand for lens edger machines with built-in frame tracers has grown due to increasing consumer expectations for faster service and precise lens fitting. With more patients opting for custom-designed eyewear and advanced lens technologies (e.g., digital progressives), labs must maintain tight tolerances during edging to preserve optical performance.
Additionally, advancements in automation have made these systems more accessible to smaller practices. Semi-automatic and fully automatic models now offer user-friendly interfaces and minimal training requirements, enabling even small dispensaries to bring lens finishing in-house. This shift reduces reliance on third-party labs, cuts down wait times, and improves profit margins by lowering per-unit processing costs.
Another driver is the rise in online eyewear sales, which pressures brick-and-mortar stores to differentiate through speed and customization. In-house edging allows same-day service, enhancing customer satisfaction and loyalty—a competitive advantage many retailers seek.
Types and Variants
Lens edger machines with frame tracers come in several configurations, each suited to different operational scales and technical needs:
Manual Lens Edgers with Frame Tracer
These require significant operator involvement in positioning, tracing, and monitoring the edging process. While less expensive upfront, they demand higher skill levels and yield slower output.
- Pros: Lower initial cost; suitable for very low-volume settings.
- Cons: Higher risk of human error; inconsistent results; not ideal for progressive lenses.
Semi-Automatic Lens Edgers
Semi-automatic models handle some steps automatically after initial setup. The technician loads the lens and selects the program, but may still need to adjust clamping pressure or verify alignment.
- Pros: Balanced cost and efficiency; good for mid-sized practices.
- Cons: Requires moderate training; throughput limited by operator speed.
Fully Automatic Lens Edgers
These systems automate nearly every step—from centering and tracing to edging and polishing edges. Many include touchscreens, preset profiles, and network connectivity for integration with lab management software.
- Pros: High precision; fast processing; minimal labor required post-setup.
- Cons: Higher purchase price; requires stable power and environment.
Freeform-Compatible Edgers
Designed specifically for freeform lenses, these machines use advanced algorithms and high-resolution tracing to match the complex surface designs generated by digital surfacing equipment.
- Pros: Essential for premium progressive and customized lenses.
- Cons: Most expensive category; often requires calibration and software updates.
Key Features and Specifications to Evaluate
To make an informed decision when buying a lens edger machine with frame tracer, consider the following critical specifications:
- Digital Tracing Accuracy: Measured in microns, this determines how closely the machine replicates the actual frame shape. Look for sub-10-micron precision for high-quality work.
- Edging Speed: Ranges from 60–180 seconds per lens depending on material and complexity. Faster speeds improve throughput but should not compromise edge finish.
- Material Compatibility: Ensure the machine supports all lens types you plan to use—CR-39, polycarbonate, Trivex, high-index plastics, and glass if applicable.
- Software Interface: Modern units feature graphical displays and intuitive menus. Some allow job storage, data export, and remote diagnostics.
- Clamping System: Adjustable, non-marring clamps protect delicate lenses during processing. Vacuum-based systems offer uniform pressure distribution.
- Noise and Vibration Levels: Important for office environments. Machines with dampening features reduce disturbance.
- Connectivity Options: USB, Ethernet, or Wi-Fi enable integration with electronic prescriptions and lab management systems.
- Maintenance Requirements: Consider ease of cleaning, blade replacement frequency, and availability of service contracts.
Pros and Cons
Investing in a lens edger machine with frame tracer offers clear advantages but isn’t suitable for every situation.
Pros:
- Reduces outsourcing costs over time.
- Enables same-day dispensing, improving patient experience.
- Improves control over quality and scheduling.
- Supports complex lens designs and frame types.
- Increases practice revenue potential through in-house services.
Cons:
- High initial investment ($5,000–$25,000+).
- Requires dedicated space and trained personnel.
- Potential downtime due to mechanical failure or maintenance.
- Not cost-effective for extremely low prescription volumes.
- May require regulatory compliance checks in certain regions.
How to Choose a Lens Edger Machine with Frame Tracer
Selecting the best lens edger with frame tracer involves a structured evaluation process:
- Assess Your Volume Needs: Estimate daily lens jobs. Low volume (<10/day) may justify a semi-auto model; high volume warrants full automation.
- Determine Lens Types Processed: If you frequently dispense freeform or high-addition progressives, choose a freeform-compatible edger.
- Evaluate Space Constraints: Measure available floor area and ventilation. Some models require additional clearance for cooling or access.
- Review Software Integration: Check compatibility with your current lab or EHR system. Cloud-connected devices simplify updates and tracking.
- Compare Tracing Methods: Digital camera-based tracers generally offer better resolution than mechanical arms.
- Test User Experience: Request a demo. Observe setup time, noise level, and interface intuitiveness.
- Check Support and Warranty: Look for at least a one-year warranty and local technical support availability.
- Budget Realistically: Include costs for installation, training, consumables, and periodic servicing.
Red flags to avoid:
- Unusually low prices that suggest outdated technology.
- Lack of documentation or poor English manuals (if operating internationally).
- Inability to provide reference customers or case studies.
- No spare parts inventory or long lead times for repairs.
Price & Market Insights
Pricing varies widely based on automation level and brand reputation:
- Entry-level (manual/semi-auto): $5,000–$9,000. Suitable for startups or satellite offices.
- Mid-range (automated, digital tracer): $10,000–$16,000. Most popular among private practices.
- Premium (freeform-compatible, smart connectivity): $17,000–$25,000+. Found in regional labs and hospitals.
Used or refurbished units are available at 30–50% discounts but carry risks related to wear, outdated firmware, or lack of warranty. When considering value, calculate return on investment (ROI) based on current outsourcing fees. For example, if you pay $40 per lens externally, producing it in-house for $10 (labor + materials) means saving $30 per job. At 15 lenses/day, that’s $135,000/year saved—justifying a $20k machine within months.
Top-Seller & Competitive Analysis
Several brands dominate the global market for lens edgers with frame tracers, including Nidek, Rodenstock, Essilor (via its OptoTech line), and Topcon. Each offers distinct strengths.
| Model | Type | Tracing Method | Edging Time | Approx. Price |
|---|---|---|---|---|
| Nidek LM-1200 | Fully Automatic | Digital Camera | ~90 sec | $18,500 |
| Rodenstock DSS+ | Semi-Auto | Optical Scanner | ~120 sec | $11,200 |
| Essilor OptoTech ECOM 3 | Fully Auto + Freeform | Digital Imaging | ~75 sec | $22,000 |
| Topcon LH-800 | Fully Automatic | Laser Tracing | ~100 sec | $16,800 |
Note: Always verify specs directly with manufacturers, as configurations vary by region and update cycles.
Customer Feedback Synthesis
Analysis of user reviews across professional forums and distributor sites reveals common themes:
Positive feedback includes:
- “Reduced remakes thanks to accurate digital tracing.”
- “Easy transition from outsourced edging—staff learned quickly.”
- “Reliable performance with minimal downtime after first year.”
- “Integration with our practice management system saves time.”
Common complaints:
- “Initial calibration took longer than expected.”
- “Customer support response was slow during a software crash.”
- “Dust accumulation affects sensor accuracy without regular cleaning.”
- “Replacement blades are expensive and proprietary.”
Overall, satisfaction correlates strongly with proper training, routine maintenance, and realistic expectations about setup time.
Sourcing & Supplier Tips
When sourcing a lens edger machine with frame tracer, consider multiple channels:
- Authorized Distributors: Offer warranties, training, and genuine parts. Ideal for first-time buyers.
- Direct from Manufacturer: May offer bulk pricing or educational discounts.
- Certified Refurbished Sellers: Can provide savings but require thorough inspection before purchase.
- Online Marketplaces (e.g., Alibaba, Medwow): Use cautiously—verify seller credentials, request references, and confirm return policies 2.
For bulk purchases or resale, negotiate service packages and spare part bundles. Always inspect units upon delivery for shipping damage and test core functions before final acceptance.
Maintenance, Safety & Legal Considerations
Proper upkeep ensures longevity and safe operation:
- Clean dust filters and optical sensors weekly to prevent inaccuracies.
- Replace grinding wheels and blades according to manufacturer schedule.
- Use protective covers when not in use to minimize debris buildup.
- Ensure operators wear safety glasses and follow lockout/tagout procedures during maintenance.
- Verify compliance with local electrical and workplace safety regulations (e.g., OSHA in the U.S.).
- In some countries, medical device registration may be required for in-house lens processing—consult local health authorities.
Conclusion
Choosing the right lens edger machine with frame tracer depends on your lab’s size, volume, and technical requirements. Fully automatic models with digital tracing offer superior accuracy and efficiency for high-throughput environments, while semi-automatic options balance cost and functionality for smaller operations. Key factors include tracing precision, material compatibility, software usability, and long-term support availability. By carefully evaluating your workflow needs and total cost of ownership, you can select a system that enhances productivity, reduces reliance on external labs, and improves patient satisfaction through faster service.
FAQs
What is the lifespan of a lens edger machine with frame tracer?
With regular maintenance, most units last 7–10 years. High-use labs may see reduced longevity without proactive servicing.
Can I use any type of lens with a frame-tracing edger?
Most modern machines handle CR-39, polycarbonate, Trivex, and high-index lenses. Always check manufacturer specifications for compatibility.
Do I need special training to operate a lens edger with frame tracer?
Yes, basic training is essential for safety and optimal performance. Many suppliers offer onboarding sessions or video tutorials.
Are there consumables involved in operating these machines?
Yes, including grinding wheels, polishing pads, coolant fluid, and cleaning solutions. Factor these into your operating budget.
Can the machine trace both plastic and metal frames?
Yes, digital tracers capture outlines regardless of frame material. However, demo lenses are often preferred for consistency.
