When selecting the best class d amplifier board with smps for your audio project, prioritize efficiency, thermal performance, and stable power delivery. A high-quality class d amplifier board with smps combines excellent energy conversion with low heat output, making it ideal for compact or high-power applications like car audio, home theater systems, or portable sound solutions 1. Look for boards with robust PWM modulation, low THD+N (Total Harmonic Distortion plus Noise), and integrated protection circuits. Ensure the SMPS (Switched-Mode Power Supply) is rated for your input voltage and can deliver consistent rail voltages under load. Avoid units with poor heatsinking or vague specifications.

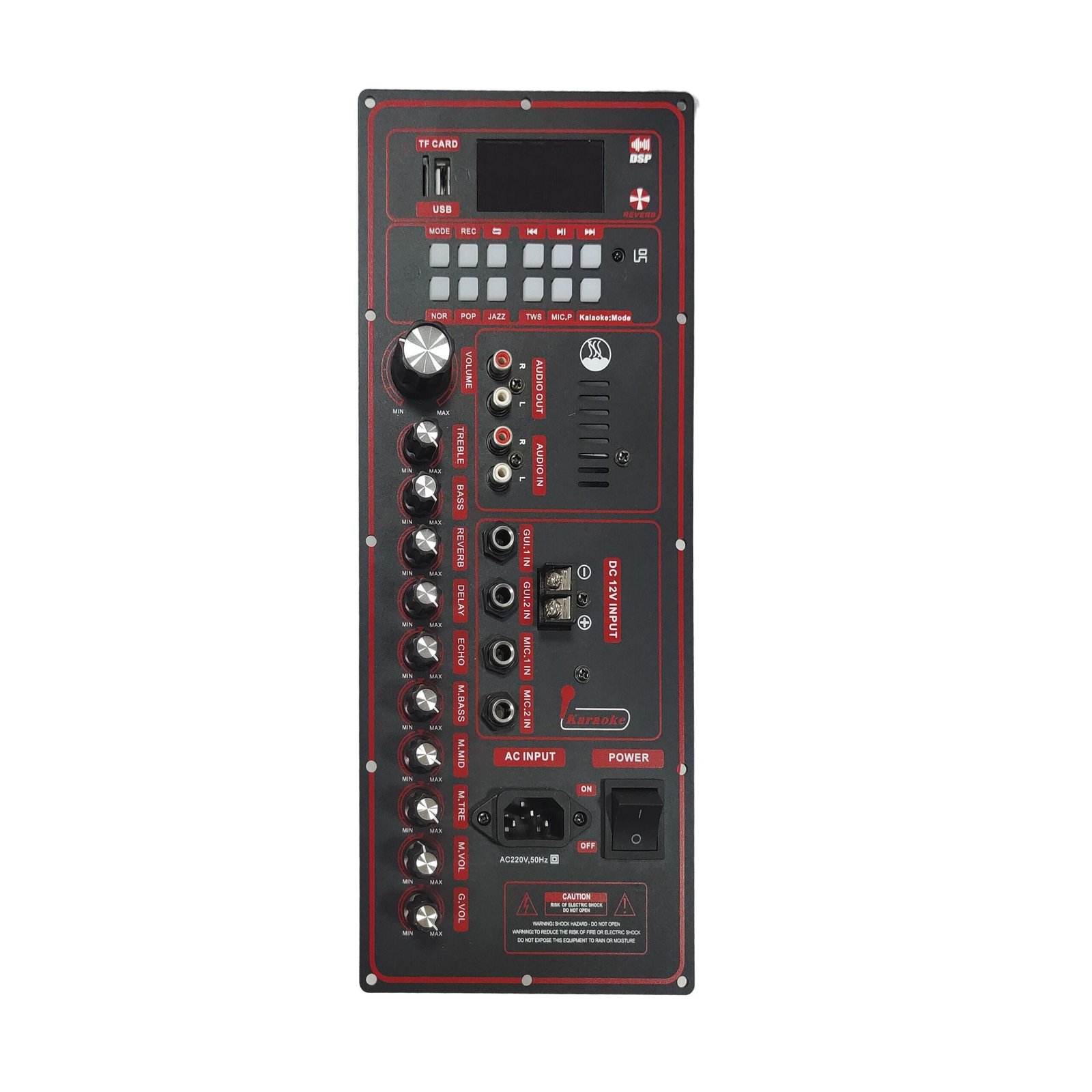

About Class D Amplifier Board with SMPS
A class D amplifier board with SMPS integrates two critical components: a switching audio amplifier and a switched-mode power supply. Unlike traditional linear amplifiers that operate by continuously regulating current flow, class D amplifiers use pulse-width modulation (PWM) to switch transistors rapidly between on and off states. This method drastically reduces power loss as heat, achieving efficiencies often exceeding 90% 2.
The inclusion of an SMPS is crucial because class D amplifiers typically require symmetrical or regulated DC power rails (e.g., ±24V or ±30V). An integrated SMPS converts AC or unregulated DC input into clean, stable DC voltage needed for optimal amplifier performance. These boards are commonly used in modern audio systems where space, heat dissipation, and battery life matter—such as subwoofer enclosures, active speakers, automotive installations, and compact hi-fi setups.
Why Class D Amplifier Board with SMPS Is Gaining Popularity
Class D amplifier boards with built-in SMPS have seen rapid adoption due to their superior efficiency and compact design. As consumers demand louder, clearer sound without bulky equipment, manufacturers have turned to digital switching technology to meet these needs efficiently. The combination eliminates the need for large transformers and heavy heat sinks found in class AB designs.
Additionally, advancements in MOSFETs, gate drivers, and feedback control circuits have improved sound quality, reducing distortion and electromagnetic interference (EMI). Many users now find that well-designed class D modules rival or surpass mid-tier linear amplifiers in fidelity while consuming less power and generating less heat. This makes them especially attractive for DIY audio enthusiasts, professional installers, and OEM product developers alike.
Types and Variants
Several configurations of class d amplifier board with smps exist, each suited to different use cases:
Stereo vs. Mono Boards
- Stereo boards: Typically deliver 2 channels (left/right), ranging from 50W to 200W per channel depending on design. Best for full-range speaker systems or bookshelf amplifiers.
- Mono blocks: Single-channel amplifiers optimized for subwoofers or bridged applications. Often feature higher power output (up to 500W+ RMS) and advanced bass management features.
Pros: Stereo boards offer balanced stereo imaging; mono blocks provide maximum power and stability for low-frequency loads.
Cons: Stereo boards may lack headroom for demanding subwoofers; mono blocks require separate units for multi-channel setups.
Integrated vs. Modular Designs
- Integrated: The SMPS and amplifier circuitry are on one PCB. Compact and easier to install but harder to repair or upgrade.
- Modular: Separate SMPS and amp boards connected via cables. Allows flexibility in layout and cooling but increases complexity.
Pros: Integrated saves space; modular enables customization.
Cons: Integrated units may suffer from noise coupling; modular requires more wiring and alignment.
Digital Input vs. Analog Input Boards
- Analog input: Accept RCA or terminal inputs. Most common, compatible with CD players, phones, mixers.
- Digital input: Include optical (TOSLINK), coaxial SPDIF, or USB inputs with built-in DACs. Ideal for direct connection to computers or digital sources.
Pros: Digital boards reduce analog noise; analog boards work universally.
Cons: Digital versions cost more and depend on internal DAC quality.
Key Features and Specifications to Evaluate
Choosing the right class d amplifier board with smps requires careful evaluation of several technical parameters:
- Output Power (RMS): Measured in watts per channel at a given impedance (e.g., 200W x 2 @ 4Ω). Always check RMS, not peak power ratings.
- Frequency Response: Should be flat across audible range (20Hz–20kHz ±1dB).
- THD+N: Lower values (<0.05%) indicate cleaner sound reproduction.
- Signal-to-Noise Ratio (SNR): Aim for >90dB to minimize background hiss.
- Efficiency: High-efficiency models (>90%) waste less energy as heat.
- Input Sensitivity: Usually 200mV–1V. Must match source output level.
- Power Supply Compatibility: Check if the SMPS supports AC mains (110/220V) or DC input (12V/24V), and its maximum current draw.
- Protection Circuits: Look for over-voltage, over-current, short-circuit, and thermal shutdown protections.
- Cooling Method: Passive heatsinks vs. active fans—fanless is quieter but needs good ventilation.
Always verify manufacturer-provided test conditions, as some specs may be exaggerated under unrealistic loads.
Pros and Cons
Advantages:
- High efficiency reduces energy consumption and heat generation.
- Compact size allows integration into tight spaces.
- Lightweight compared to linear amplifiers with similar output.
- Excellent transient response and bass control when well-designed.
- SMPS ensures stable voltage even with fluctuating input.
Disadvantages:
- Potential for EMI/RFI interference affecting nearby electronics.
- Some lower-cost models exhibit harsh highs or compressed dynamics.
- Repairability is limited due to surface-mount components.
- Noise from SMPS coils or fans can be audible in quiet environments.
- May require external filtering or shielding for optimal performance.
These boards are ideal for applications requiring high power in small enclosures, such as car subwoofers or powered PA cabinets. However, audiophiles seeking ultra-transparent analog warmth might prefer high-end class A or AB designs despite their inefficiencies.
How to Choose a Class D Amplifier Board with SMPS
Follow this step-by-step guide to make an informed decision:
- Define Your Use Case: Will it drive subwoofers, main speakers, or act as a headphone amp? Subwoofer amps benefit from mono blocks with strong low-end control.
- Determine Required Power: Match RMS output to speaker sensitivity and desired volume. Don’t exceed speaker power handling.
- Check Impedance Compatibility: Ensure the board supports your speaker’s nominal impedance (4Ω, 8Ω, etc.). Some support down to 1Ω for parallel driver setups.
- Evaluate Input Type: If connecting directly to a smartphone or TV, analog inputs suffice. For digital sources, consider boards with optical or coaxial inputs.
- Assess Physical Size & Mounting Options: Measure available space. Note screw hole positions and clearance for connectors and heatsinks.
- Review Protection Features: Prioritize units with comprehensive safeguards to prevent damage during operation.
- Inspect Build Quality: Thick copper PCBs, quality capacitors, and solid solder joints indicate durability. Avoid boards with flimsy potentiometers or thin traces.
- Read Real User Reviews: Look for patterns in feedback about reliability, noise, and actual performance vs. claims.
- Verify Return Policy & Warranty: Especially important when buying online from lesser-known brands.
- Beware of Red Flags: Unrealistically high power ratings (e.g., “1000W peak”), missing datasheets, no model number, or blurry photos suggest low credibility.
Price & Market Insights
Prices vary widely based on power, brand, and features:
- Budget Tier ($20–$60): Entry-level boards with moderate power (50–150W x 2). Suitable for hobbyists or basic projects. May lack fine-tuning options or premium filtering.
- Mid-Range ($60–$150): Reliable performance, better components, and accurate specs. Often include adjustable gain, crossover settings, and improved SMPS regulation.
- Premium Tier ($150+): High-fidelity designs from reputable manufacturers (e.g., Hypex, Purifi, or branded OEM modules). Offer exceptional clarity, low distortion, and industrial-grade construction.
While many affordable boards perform well, investing in mid-tier or verified high-performance models pays off in longevity and sonic accuracy. Be cautious of extremely cheap units claiming massive power—they often fail under sustained load.
| Model Type | Power Output | SMPS Type | Inputs | Price Range |
|---|---|---|---|---|
| Stereo 2x150W | 150W × 2 @ 4Ω | Onboard AC-DC | RCA, Speaker Terminals | $45–$70 |
| Mono Subwoofer 500W | 500W RMS @ 2Ω | External DC-DC | RCA, Level Control | $80–$120 |
| Digital Input Stereo | 100W × 2 @ 8Ω | Integrated DC-DC | Optical, Coaxial, RCA | $130–$180 |
| Hypex-based Mono | 300W Class D Module | Separate PSU Required | XLR, RCA | $200+ |
Top-Seller & Competitive Analysis
Popular models like the TPA3255-based amplifier boards dominate the mid-range market due to their balance of power and fidelity. These ICs offer high SNR, low distortion, and excellent thermal stability. Similarly, IRS2092-driven boards remain popular for custom builds thanks to flexible feedback tuning.
When comparing top sellers, focus on whether they use genuine ICs versus clones, presence of proper LC output filters, and grounding layout. Some brands repackage the same reference design under multiple names—check schematics or teardown videos to confirm authenticity.
Higher-end competitive options like those using Purifi Eigentakt or Hypex nCore platforms deliver near-measurement-perfect performance but come at a steep price. These are typically sold as complete modules rather than DIY boards and are used in commercial active speakers.
Customer Feedback Synthesis
Analysis of user reviews reveals consistent themes:
Common Praises:
- “Much cooler than my old class AB amp.”
- “Surprisingly loud and clean for the size.”
- “Easy to wire and got great bass response.”
- “The built-in SMPS eliminated the need for a transformer.”
Frequent Complaints:
- “Hiss present at idle, even with no input.”
- “One channel failed after three weeks.”
- “Power rating seems inflated—gets distorted above half volume.”
- “Fan noise is annoying in quiet rooms.”
These insights highlight the importance of choosing units with proven component quality and realistic specifications. Noise issues often stem from poor PCB layout or inadequate power filtering.
Sourcing & Supplier Tips
You can source class d amplifier board with smps from electronics distributors (e.g., Mouser, Digi-Key), specialized audio suppliers, or marketplaces like Amazon and AliExpress. For prototyping or personal use, reputable resellers with clear return policies are recommended.
For bulk purchases or OEM integration, contact manufacturers directly through platforms like Alibaba. Request sample units before placing large orders. Verify certifications (CE, RoHS) and ask for test reports on THD, frequency response, and efficiency.
When receiving shipments, inspect for physical damage, verify included accessories, and perform a burn-in test at low power before full deployment. Use a dummy load instead of speakers during initial testing to avoid risk.
Maintenance, Safety & Legal Considerations
To ensure long-term reliability:
- Keep ventilation clear—especially around the SMPS coil and amplifier heatsink.
- Avoid operating in humid or dusty environments unless enclosed.
- Use appropriately rated fuses on input lines to prevent fire hazards.
- Ground the chassis properly to reduce hum and protect against electrical shock.
- Do not daisy-chain multiple high-draw boards on the same circuit.
In residential or commercial installations, comply with local electrical codes. In the EU, CE marking indicates conformity with health, safety, and environmental standards. In North America, UL listing may be required for permanent installations, though most DIY boards lack formal certification. Always follow manufacturer guidelines and consult an electrician if integrating into fixed wiring.
Conclusion
Selecting the right class d amplifier board with smps involves balancing power, efficiency, build quality, and application needs. For most users, a well-reviewed mid-range model with true RMS ratings, effective cooling, and protection circuits offers the best value. Prioritize units with transparent specifications and avoid overly aggressive marketing claims. Whether building a powerful subwoofer system or upgrading a compact stereo, a properly chosen class D + SMPS solution delivers high performance in a small footprint. Always double-check compatibility with your speakers and power source before final installation.
FAQs
What does SMPS mean in a class D amplifier?
SMPS stands for Switched-Mode Power Supply. It efficiently converts input voltage (AC or DC) into stable, regulated DC power required by the class D amplifier, improving efficiency and reducing heat.
Can I run a class d amplifier board with smps from a battery?
Yes, if the SMPS supports DC input (e.g., 12V or 24V). Many car audio boards accept 12V DC directly. For AC-input SMPS units, you’ll need an inverter.
Are class D amplifiers good for home audio?
Yes, especially modern designs with low distortion and wide frequency response. They’re efficient, compact, and suitable for bookshelf systems, soundbars, or subwoofers.
Why is my class D amp making a buzzing noise?
Buzzing may come from EMI, ground loops, or poor power filtering. Try relocating the board, using shielded cables, or adding ferrite beads. Ensure the SMPS isn’t interfering with sensitive analog stages.
How do I know if an amplifier board is truly class D?
Check the main IC datasheet (e.g., TPA3255, IRS2092, TAS5756). True class D chips use PWM switching. Also, look for high efficiency (>85%) and minimal heat sink usage.
