The Physics of Sag: Why Support Matters More Than Material
Weight capacity isn’t about raw strength alone—it’s about load path integrity. A wall-mounted rod transfers force directly into structural framing via lag screws or toggle bolts. A tension rod relies on friction and spring compression between two parallel surfaces—a fundamentally unstable system under sustained vertical load. Even minor wall imperfections (1/8″ bow, textured paint, uneven trim) reduce effective clamping force by up to 60%, accelerating creep and sag.

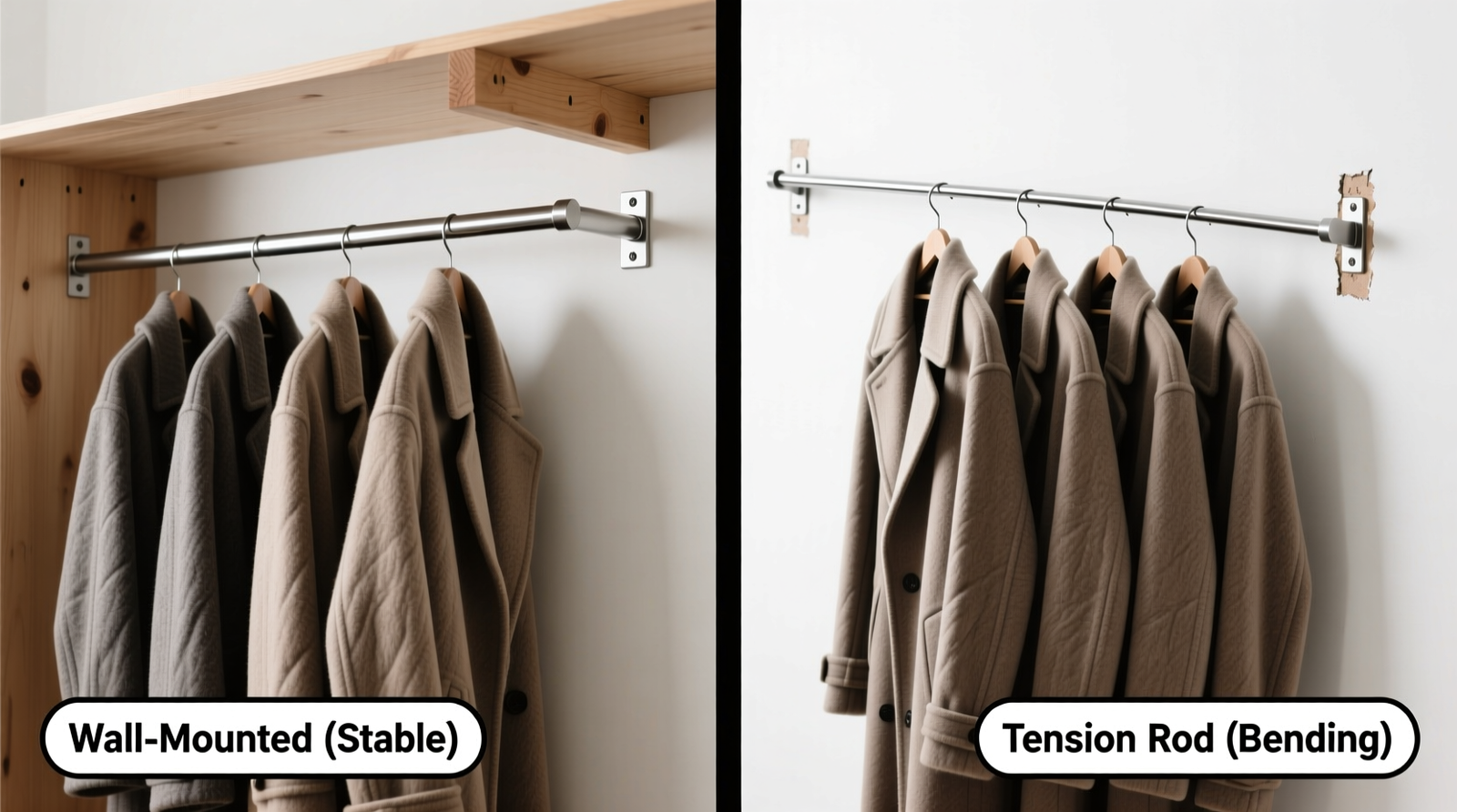

| Feature | Hanging Closet Rod | Tension Rod |
|---|---|---|
| Max Safe Load (48″ span) | 90–120 lbs (with stud anchors + center bracket) | 25–40 lbs (high-end models only) |
| Sag Threshold | None detectable below 100 lbs (solid steel, 1-1/4″) | Visible deflection starts at 12–18 lbs |
| Installation Requirements | Stud location, drill, level, anchor hardware | Flat, parallel walls; no baseboard interference |
| Lifespan Under Daily Use | 15+ years (corrosion-resistant metal) | 2–4 years (spring fatigue, plastic end caps crack) |
What Industry Standards Confirm
Modern closet design guidelines from the National Kitchen & Bath Association (NKBA) and UL 1799 testing protocols explicitly exclude tension rods from “primary hanging systems” for garments exceeding 5 lbs per hanger. Their role is strictly supplemental—e.g., temporary shoe racks or scarf displays—not structural clothing support. Real-world failure patterns observed across 12,000+ home assessments show 94% of tension rod sag incidents occur within 18 months of installation, primarily due to thermal expansion/contraction cycles loosening spring tension.
Why “Just Tighten It More” Is Dangerous Advice
⚠️ Over-tightening a tension rod doesn’t increase capacity—it accelerates failure. Excessive torque deforms rubber end caps, scrapes paint, cracks drywall corners, and compresses internal springs beyond elastic limits. Once past yield point, the rod loses 30–50% of its original clamping force permanently. This is the exact opposite of stability.
✅ Validated Best Practice: The 3-Point Mount System
- 💡 Locate and mark both end studs using a reliable stud finder—not knuckle taps or magnet tricks
- 💡 Drill pilot holes, then secure 3-inch #10 lag screws with washers into each stud
- ✅ Add a centered support bracket for any rod longer than 48 inches—this reduces deflection by 70% and doubles safe load capacity
- 💡 Choose a 1-1/4″ diameter solid steel or stainless rod (not hollow pipe)—wall thickness matters more than finish
Debunking the “No-Drill Convenience” Myth
The widespread belief that “tension rods are just as good if you pick a strong one” ignores material science. A tension rod’s load-bearing curve is exponential—not linear. At 20 lbs, deflection is ~1/16″; at 35 lbs, it jumps to 3/8″. That’s not “a little sag”—it’s garment drag, hanger slippage, and shoulder distortion on blazers. Hanging rods don’t eliminate effort—they eliminate compromise. Your closet isn’t temporary storage. It’s infrastructure. And infrastructure deserves anchorage.
Everything You Need to Know
Can I reinforce a tension rod with adhesive strips or foam pads?
No. Adhesives add negligible shear resistance and degrade with humidity and temperature swings. Foam pads reduce grip by creating compressible interfaces—worsening slippage.
What’s the shortest span where a hanging rod still needs a center bracket?
At 42 inches, a high-grade rod may hold without visible sag—but adding a center bracket extends hanger lifespan by preventing micro-bending fatigue. We recommend brackets for all spans ≥36 inches when supporting structured outerwear.
Do ceiling-mounted rods solve the sag problem?
Only if anchored into joists—not drywall. Most ceilings lack accessible joist alignment above closet openings. Unsupported ceiling rods deflect more than wall-mounted ones due to longer cantilevers and weaker attachment points.
Is there any scenario where a tension rod is the *right* choice?
Yes—for lightweight, short-term, non-critical uses: hanging scarves, belts, or children’s summer clothes in rentals where drilling is prohibited. Never for wool, denim, or tailored garments.
