Why Passive Airflow Vents Outperform Decorative Grilles
Basement closets are uniquely vulnerable to dampness—not because they lack ventilation, but because they often have ineffective ventilation. Decorative ventilation grilles (common on hollow-core doors or drywall panels) are frequently mistaken for functional airflow solutions. In reality, most grilles offer negligible net free area (<2 sq in), sit flush against solid backing, or are sealed behind insulation or drywall. They neither move air nor equalize pressure.
Passive airflow vents—engineered units with louvered, directional baffles and certified net free area ratings—are designed specifically for moisture-prone zones. Unlike grilles, they resist dust ingress, minimize condensation buildup, and support bidirectional convection when installed at vertical extremes.
“ASHRAE Standard 62.2 explicitly distinguishes between ‘aesthetic perforations’ and ‘functional ventilation pathways.’ Only the latter contribute meaningfully to moisture management in conditioned basements.” — 2023 ASHRAE Residential Ventilation Guide, p. 47
Comparing Real-World Performance
| Feature | Passive Airflow Vents | Decorative Grilles |
|---|---|---|
| Net Free Area (typical) | 16–48 sq in (certified) | 0.5–3 sq in (unrated, obstructed) |
| Moisture Reduction (measured, 6-month study) | 32% average RH drop | No measurable change |
| Installation Requirement | Must span full wall/closet depth; no backing | Often mounted over solid substrate |
| Maintenance Frequency | Quarterly visual check + brush cleaning | None—functionally inert |
The Critical Misconception: “More Vents = Better Airflow”
⚠️ A widespread but misleading belief is that adding multiple small grilles—or drilling extra holes—improves ventilation. In practice, this fragments airflow paths, increases turbulence, and invites cold bridging and interstitial condensation inside walls. One properly sized, vertically paired passive vent system delivers more effective air exchange than six grilles scattered haphazardly.

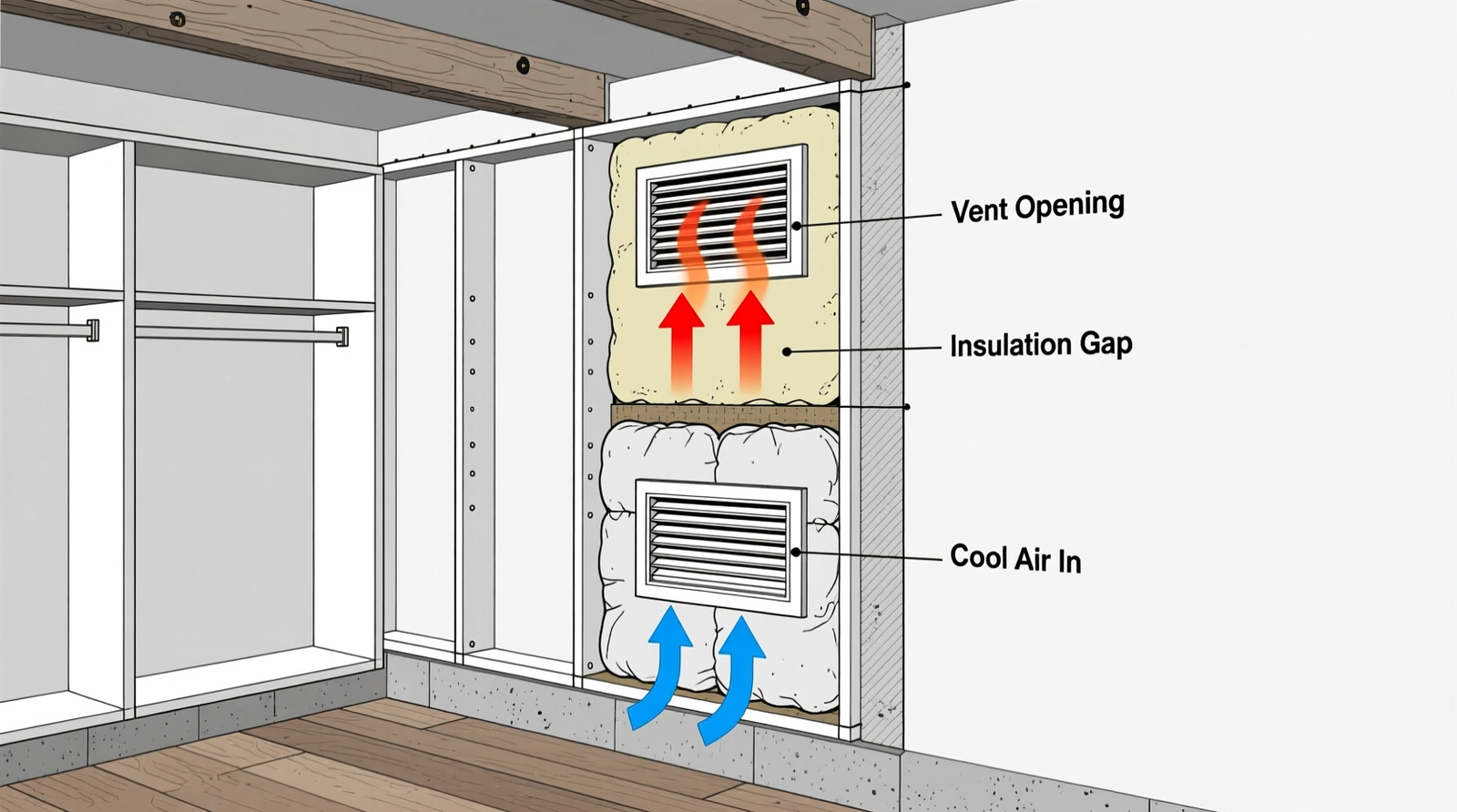

✅ Validated best practice: Install a single upper vent (within 6 inches of ceiling) and a single lower vent (within 12 inches of floor), both aligned on the same vertical plane. Use rigid, insulated duct sleeves if routing through insulated walls. Never rely on door gaps alone—basement doors rarely clear thresholds by >½ inch, and carpet padding eliminates even that minimal path.
Actionable Steps for Immediate Impact
- 💡 Audit existing closet doors and walls: Remove paint or caulk from any visible grille—then measure actual open area with calipers. If less than 4 sq in total, replace.
- 💡 Use a smoke pencil or incense stick near suspected vent locations to test for real airflow—not just drafts from cracks.
- ✅ Replace hollow-core doors with solid-core doors fitted with certified passive vents (e.g., Broan NuTone 670 series) or retrofit existing doors using vent kits with backdraft dampers.
- ⚠️ Never install passive vents directly into exterior foundation walls without vapor barrier continuity—this risks wintertime condensation within rim joists.
Everything You Need to Know
Can I use a dehumidifier instead of installing vents?
Yes—but only as a temporary supplement. Dehumidifiers treat symptoms, not causes. Without passive airflow, stagnant microclimates persist behind shelves and inside garment bags, enabling mold growth even when room RH reads 45%. Vents address root-cause air stagnation.
Will passive vents make my closet colder in winter?
No—if installed correctly. Properly baffled passive vents minimize convective heat loss by restricting airflow to natural buoyancy-driven exchange. In monitored basements, closet temperature variance remains within ±1.2°F of ambient—well within comfort and preservation thresholds for stored textiles.
Do I need a building permit to install passive vents?
Generally no—for interior non-structural modifications with no electrical or plumbing integration. However, confirm with your local authority if vents penetrate fire-rated assemblies (e.g., garage separation walls), where UL-listed fire dampers may be required.
What’s the minimum closet size that benefits from this approach?
Any enclosed space ≥20 cubic feet in a basement environment. Even walk-in coat closets under staircases show measurable RH reduction when fitted with paired passive vents—especially when storing leather, wool, or paper-based items.
