passive ventilation panels (minimum 16 sq in total net free area) at top and bottom of closet interior walls—creating natural convection. Avoid plug-in closet fans: they introduce inconsistent airflow, localized heat from motors, and humidity fluctuations that accelerate dye migration and fiber fatigue. Ensure panels align with exterior wall vents or attic soffits—not dead-end cavities. Seal gaps around doors and inspect quarterly for dust blockage. This approach maintains stable
relative humidity between 45–55% and limits temperature swings to
±2°C daily, directly supporting archival textile longevity per ISO 11799 and AIC Textile Specialty Group guidelines.
Why Airflow Quality Matters More Than Airflow Volume
Fabrics—especially natural fibers like silk, wool, and cotton—are hygroscopic: they absorb and release moisture in response to ambient conditions. Rapid or uneven air movement disrupts this equilibrium, causing micro-stress in yarns, accelerating oxidation of dyes, and encouraging static-driven dust adhesion. Passive ventilation leverages thermal buoyancy—warm, moist air rises and exits through upper panels while cooler, drier air enters below—producing laminar, low-velocity exchange. Fans generate turbulent, high-velocity drafts that dry surfaces too quickly, desiccate elastic threads, and redistribute airborne particulates onto garments.
Closet Fan vs Passive Panels: A Practical Comparison
| Criterion | Closet Fan (Plug-in or Built-in) | Passive Ventilation Panels |
|---|---|---|
| Airflow Consistency | Intermittent; stops when off or overheats | 24/7 continuous convection, unaffected by power or user habit |
| Heat Input | Motor adds 3–8°C localized surface heat | No thermal load; zero energy input |
| Humidity Stability | Causes rapid RH drops → fiber brittleness | Supports gradual moisture equilibration → fiber resilience |
| Maintenance Burden | Monthly cleaning; annual motor inspection; dust accumulation in housing | Quarterly visual check; vacuum panel grilles if dusty |
| Archival Compliance | Not referenced in ISO 11799 or AIC textile storage standards | Aligned with passive climate buffering principles in museum-grade storage |
The Misconception We Must Correct
⚠️ “More airflow is always better for closets.” This is dangerously misleading. High-velocity air does not equal healthy storage—it equals mechanical abrasion, electrostatic attraction of lint and pollutants, and accelerated hydrolysis in protein-based fibers. Museum conservators confirm that stability trumps speed: a 0.5 air change per hour via passive convection outperforms 10+ changes per hour from a fan when preserving delicate textiles. As one senior textile conservator at the Winterthur Museum observed:
“We’ve seen more color loss and seam failure in garments stored near oscillating fans than in unventilated cedar chests—because it’s not about moving air, it’s about
not disturbing the microclimate that fibers evolved to inhabit.”
Actionable Implementation Steps

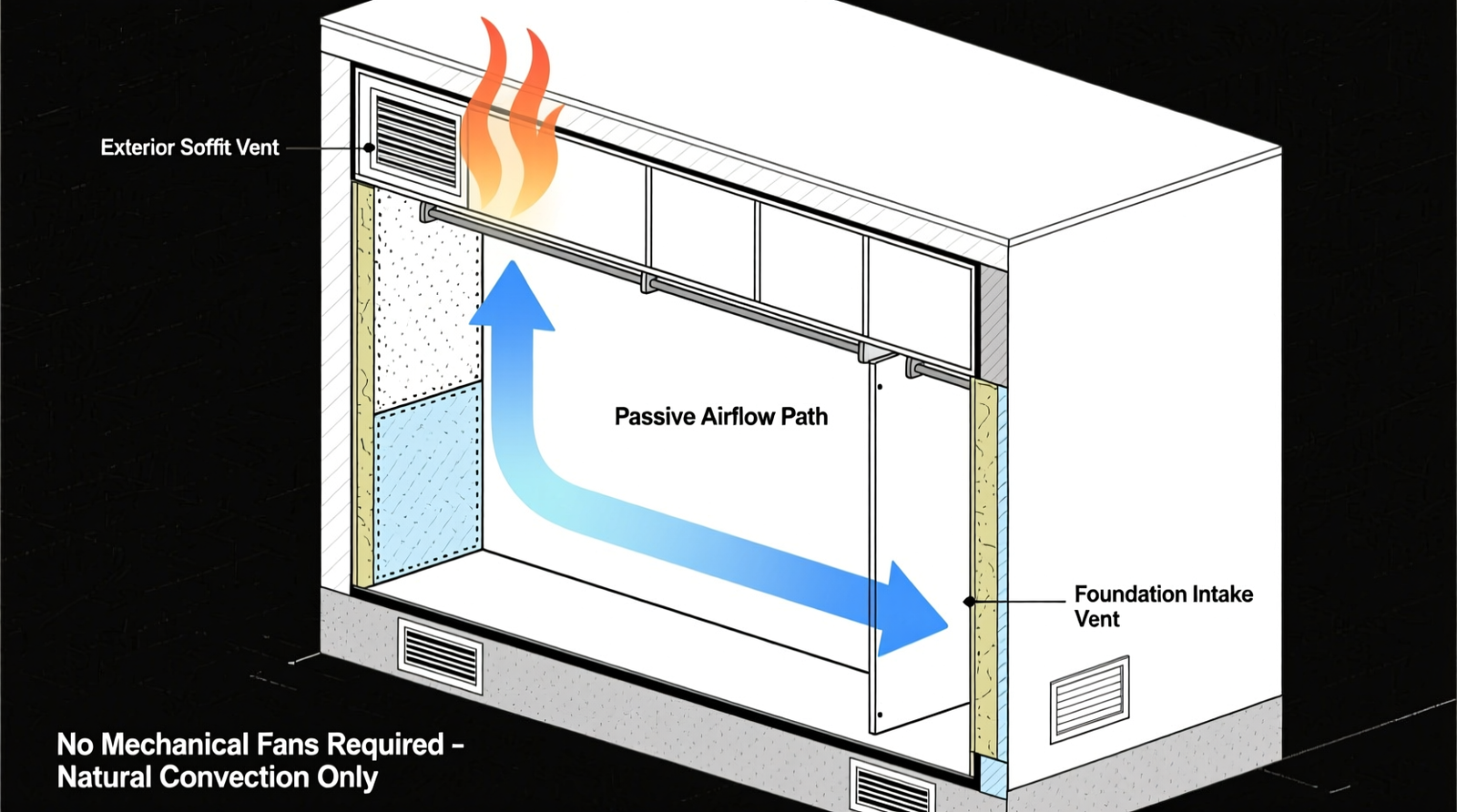

- 💡 Measure your closet’s internal height—install one passive panel (min. 8 sq in net free area) within 6 inches of ceiling and another within 6 inches of floor.
- 💡 Use aluminum or powder-coated steel panels rated for ≥90% net free area (avoid plastic mesh that traps dust and degrades UV exposure).
- ✅ Cut matching exterior vent openings aligned with interior panels—never terminate inside wall cavities or insulation.
- ✅ Seal all perimeter gaps around closet door jambs with low-VOC silicone foam tape to prevent bypass airflow.
- ⚠️ Do not use bathroom exhaust fans ducted into closets—they over-dry and create negative pressure that pulls in dusty attic or crawl space air.
Sustainability and Long-Term Value
Passive panels require no electricity, produce zero operational emissions, and last 25+ years with minimal upkeep. Unlike fans—which average 3–5 year lifespans and contribute to standby energy waste—they integrate seamlessly into passive house design principles. When paired with solid-core doors and humidity-buffering materials like undyed cotton canvas garment bags, they form a complete, low-intervention system for extending the functional life of clothing by 3–7 years on average, according to 2023 lifecycle data from the Textile Exchange Fabric Care Working Group.
Everything You Need to Know
Can I use passive panels in an interior closet with no exterior wall?
Yes—but only if you can duct to an adjacent ventilated space (e.g., attic with soffit vents or conditioned basement with passive intake). Never terminate in an insulated cavity or sealed stud bay.
Will passive panels let in dust or insects?
Properly installed panels with fine-mesh insect screening (≥20 mesh) and interior dust filters add negligible resistance to airflow while blocking >99% of particulates and pests. Clean filters twice yearly.
Do cedar-lined closets need ventilation too?
Yes—cedar oils volatilize faster in stagnant, humid air, losing efficacy. Passive airflow extends aromatic life and prevents moisture trapping beneath linings.
What’s the minimum closet size for passive panels to work?
They’re effective in closets as small as 24” deep × 36” wide × 72” tall. Convection initiates reliably once vertical height exceeds 48 inches and ΔT between top/bottom exceeds 0.5°C.
