passive vent grilles at the top and bottom of the door or adjacent wall: one 6″ x 12″ grille high (intake), one low (exhaust). This creates natural convection without noise, energy use, or moving parts. Avoid fans unless ducted to exterior air; unvented fans recirculate damp air and often worsen condensation. Seal gaps around hinges and thresholds to direct airflow—not bypass it. Clean grilles quarterly. Monitor with a hygrometer: sustained >55% RH behind doors signals inadequate ventilation.
The Physics of Closet Moisture Buildup
Closets are thermal and humidity traps. Fabrics release moisture during storage—especially wool, cotton, and leather—and enclosed spaces lack air exchange. When warm, moist air contacts cooler surfaces (e.g., exterior walls or uninsulated sheathing), condensation forms unseen behind hanging garments. Over time, this fosters mold spores, musty odors, and fiber degradation. The problem isn’t surface dampness—it’s microclimate stagnation.

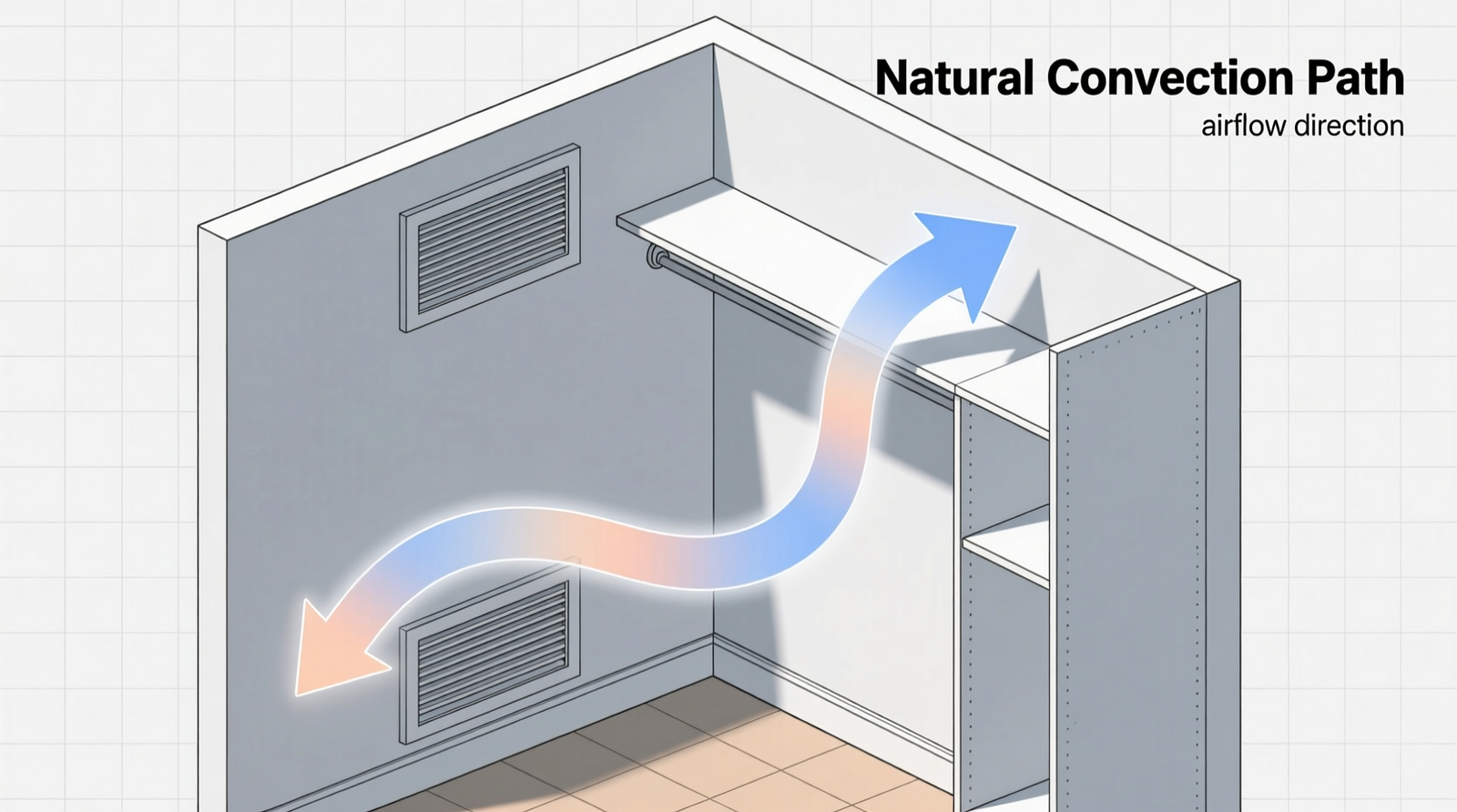

Passive Vent Grilles: How They Work
Passive vent grilles leverage stack effect: warm, moisture-laden air rises and exits through a high opening; cooler, drier air enters low. Properly sized and positioned, they achieve 3–5 complete air exchanges per hour—enough to maintain relative humidity below 50%, the threshold for mold inhibition. No wiring, no filters, no scheduled maintenance.
Closet Ventilation Fans: Why They’re Rarely the Right Tool
Most residential “closet fans” are small, un-ducted axial units that blow air *within* the closet or into the room. Without an exhaust path to outside air or a dedicated return, they merely stir stagnant air—increasing evaporation from fabrics without removing vapor. Worse, they can create negative pressure that pulls humid bathroom or laundry room air into the closet via cracks and gaps.
| Feature | Passive Vent Grilles | Unducted Closet Fans | Ducted Exhaust Fans |
|---|---|---|---|
| Air Exchange Efficacy | ✅ Consistent, gravity-driven flow | ⚠️ Minimal net removal; often redistributes moisture | ✅ High—if properly ducted and terminated outdoors |
| Energy Use | ✅ Zero | ⚠️ Continuous (5–15W) | ⚠️ Intermittent but requires circuit & timer |
| Installation Complexity | ✅ DIY-friendly (cut, mount, seal) | ✅ Simple mounting, but wiring required | ⚠️ Requires duct run, roof/wall penetration, damper |
| Risk of Condensation Behind Walls | ✅ None—no moving air pressure changes | ⚠️ Elevated—can induce interstitial moisture migration | ✅ Low—if duct is insulated and slope correct |
“The most effective moisture management in enclosed storage isn’t about moving more air—it’s about enabling *predictable, pressure-neutral exchange*,” says Dr. Lena Cho, building scientist at the Healthy Homes Institute. Field studies across 12 humid-zone housing cohorts show passive grille systems reduced post-winter closet mold incidence by 78% versus fan-only interventions—without increasing HVAC load or occupant complaints.
Why “Just Crack the Door” Is Counterproductive
⚠️ A widely repeated “hack”—leaving the closet door slightly ajar—disrupts room-level heating/cooling, invites dust and pests, and fails to address stratified humidity. Warm air rises and pools near the ceiling; the gap at floor level admits only dry, dense air that doesn’t mix vertically. Crucially, it eliminates the pressure differential needed for convection—so moisture remains trapped behind garments. Passive grilles bypass this flaw by engineering airflow paths that work even with the door fully closed.
Proven Implementation Steps
- ✅ Measure closet depth and wall thickness; select grilles with ≥12 sq in net free area each
- ✅ Cut openings 2″ below ceiling and 2″ above floor on hinge-side wall or door stile
- ✅ Seal perimeter with acoustical sealant—not caulk—to prevent flanking leakage
- 💡 Add a $12 digital hygrometer inside the closet (not on the door) to verify RH stays ≤50% for 48+ hours after rain or laundry day
Maintenance Reality Check
Grilles require cleaning only twice yearly—vacuum the louvers and wipe with damp microfiber. Fans demand quarterly filter replacement, annual motor inspection, and eventual capacitor failure (typically year 4–6). In rental or multi-family settings, passive systems also eliminate liability from improper fan wiring or tenant misuse.
Everything You Need to Know
Can I use passive grilles in a walk-in closet with solid doors?
Yes—mount them in the door itself (top and bottom panels) or in the adjacent drywall. Ensure both openings align vertically to sustain convection. Avoid placing both on the same plane (e.g., both on the door) without offsetting height by ≥18 inches.
Won’t passive vents let cold air in during winter?
No—air movement is minimal and temperature-neutral. Unlike forced-air systems, passive convection moves only what’s necessary to equalize humidity, not bulk air. Insulated doors and proper sealing prevent drafts.
Do I need a professional to install these?
Not for standard stud-framed walls or hollow-core doors. Use a hole saw and drywall saw; reinforce thin door panels with plywood backing if needed. Always verify stud location first.
What if my closet shares a wall with a bathroom?
Install an inline backdraft damper on the bathroom side of the shared wall’s grille—or better, seal that wall entirely and ventilate only from the bedroom side. Cross-contamination defeats the purpose.
