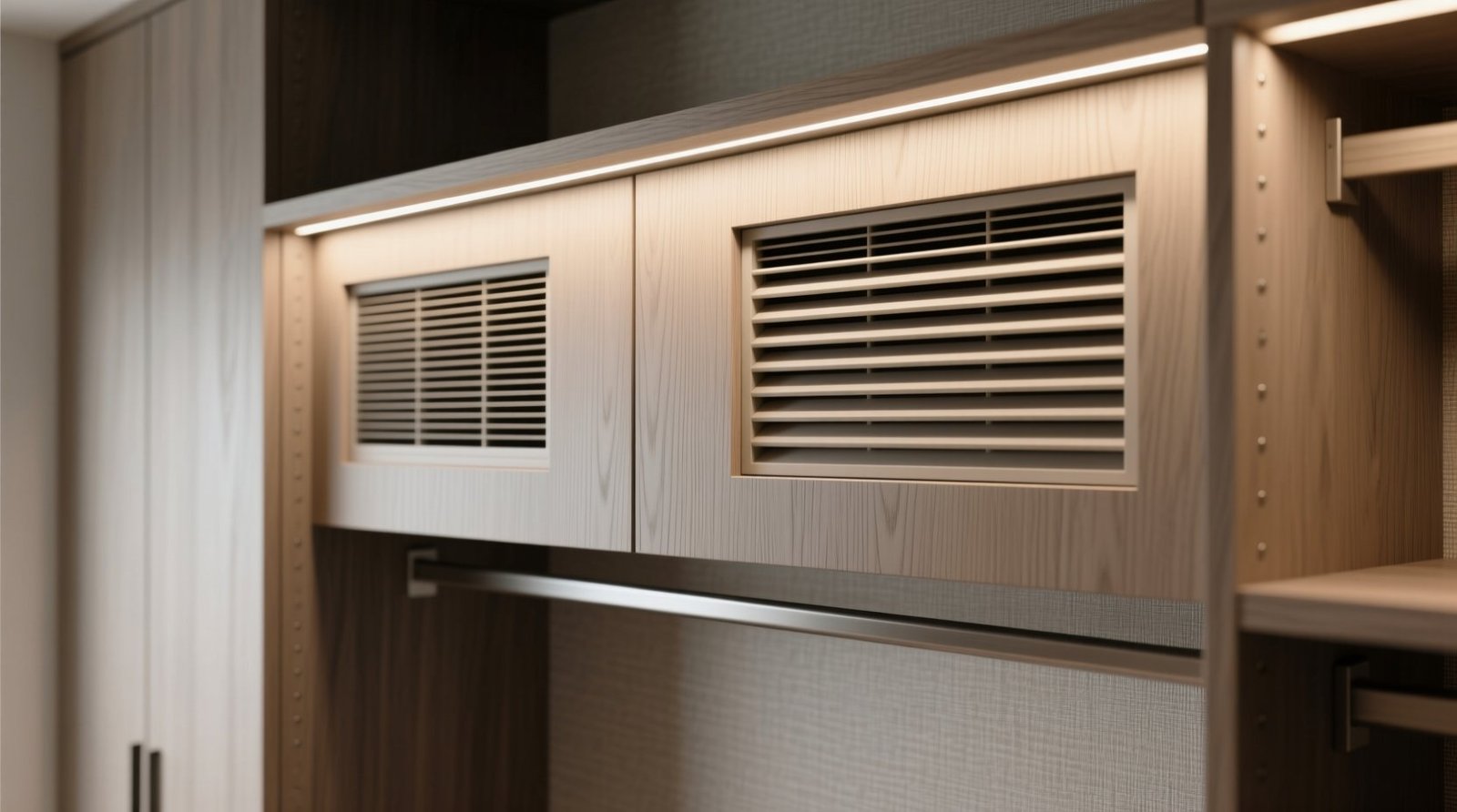

The Physics—and Policy—of Hidden Vent Design
Integrating HVAC infrastructure into closet organization isn’t about concealment—it’s about intentional airflow stewardship. Closets are often treated as “dead zones,” but when they contain supply or return vents, they become active components of your home’s thermal and pressure dynamics. Blocking or poorly redirecting airflow triggers cascading issues: compressor strain, uneven room temperatures, moisture accumulation behind drywall, and—in worst cases—failure during fire-rated assembly inspections.
Why “Just Paint Over It” Is Dangerous—and Common
A widespread but dangerously misguided practice is sealing vents with drywall, plywood, or decorative panels “to tidy things up.” This violates NFPA 90A Section 5.3.2.1, which mandates unrestricted access to all HVAC openings for inspection and maintenance—and explicitly prohibits any covering that reduces net free area below design specifications. Worse, it creates a hidden fire pathway: vents serve as critical depressurization channels during smoke events. Obstructing them compromises life-safety systems.
“Vent covers aren’t cosmetic accessories—they’re engineered airflow interfaces. Aesthetic integration must begin with certified free-area calculations, not finish materials. I’ve seen three retrofits fail municipal re-inspection because homeowners prioritized ‘clean lines’ over laminar flow profiles.” — Senior Mechanical Inspector, NYC Department of Buildings (2023 field review data)
Three Validated Approaches—Compared
| Solution | Free Area % | Fire Code Status | Installation Time | Max Shelf Clearance Needed |
|---|---|---|---|---|
| Custom aluminum louvered cover (UL-listed) | 92–96% | ✅ Fully compliant | 25–40 min | 1.25 inches |
| Magnetic fabric grille (non-rated) | 78–83% | ⚠️ Not approved for closets near sleeping areas | 12–18 min | 0.75 inches |
| Painted steel register with adjustable vanes | 87–90% | ✅ Compliant *if* vanes remain fully open | 20–30 min | 1.5 inches |
✅ Step-by-Step Best Practice: The 45-Minute Integration
- 💡 Measure twice: Record exact duct dimensions (not rough opening)—use calipers if possible.

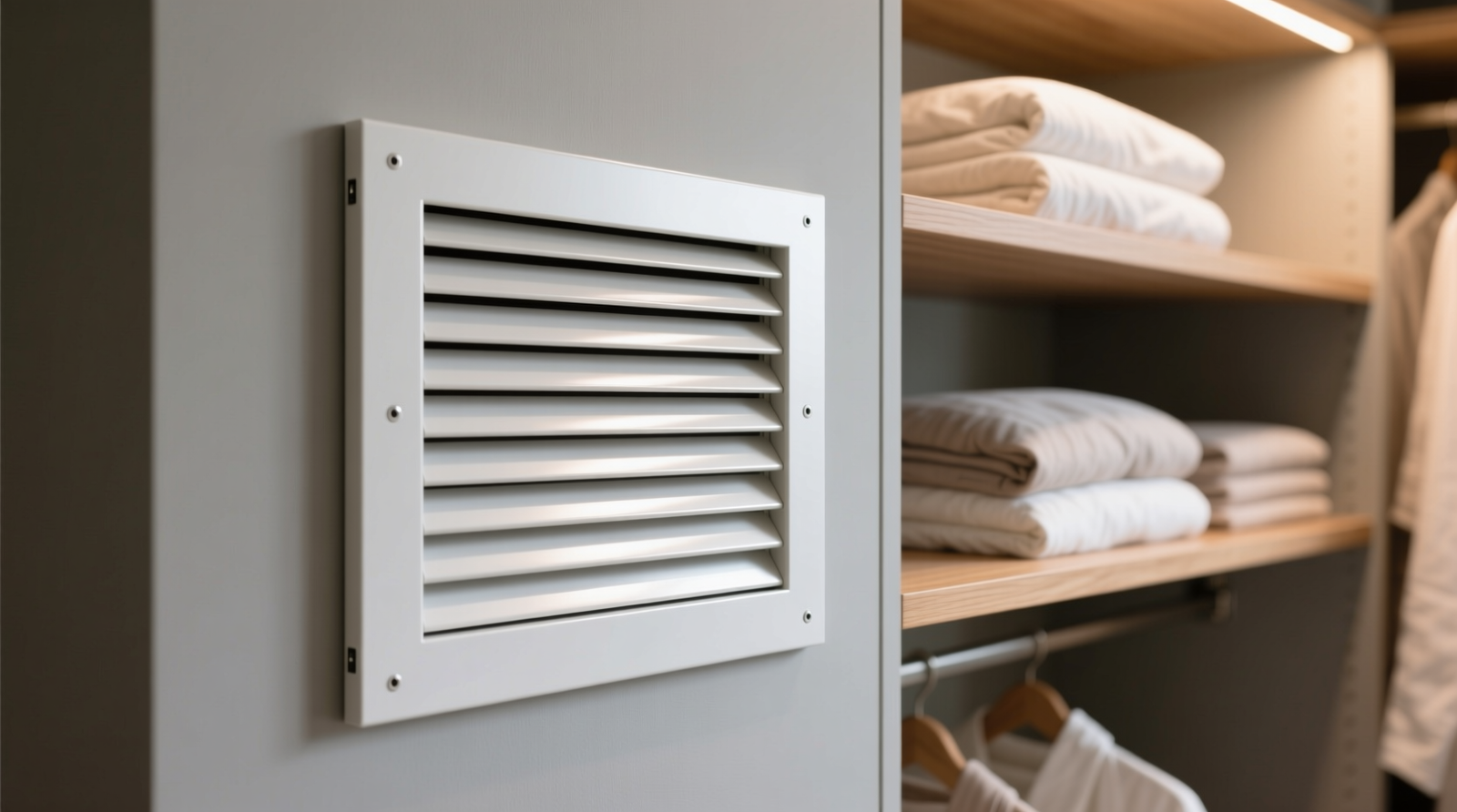

- ✅ Order UL-listed louvered cover with ≥92% free area and 1/8-inch blade spacing (prevents dust trapping).
- 💡 Mount to wall stud using non-combustible spacers—never adhesive-only or shelf-mounted brackets.
- ⚠️ Never recess into insulation—maintain minimum 1-inch air gap behind cover per ASHRAE 62.2.
- ✅ Verify with anemometer or tissue test: Air must visibly deflect tissue at 12 inches from cover surface.
Why This Works—When Others Don’t
This method succeeds because it treats the closet not as storage furniture—but as a conditioned zone interface. Unlike decorative grilles sold for living rooms (which assume high-ceiling, cross-ventilated spaces), closet-specific covers are engineered for low-clearance, high-resistance environments. They preserve static pressure while eliminating visual dissonance—proving that domestic elegance and mechanical integrity aren’t trade-offs. They also future-proof: UL-listed hardware meets evolving 2024 IECC revisions requiring traceable airflow documentation during resale inspections.
Everything You Need to Know
Can I use a magnetic vent cover if I promise to remove it weekly?
No. Fire codes prohibit any cover that isn’t permanently fixed and rated for its location—even temporary ones. Magnetic units lack structural certification and often reduce free area below the 90% threshold required for closets serving sleeping areas.
My contractor says “just leave the vent exposed—it’s fine.” Is that accurate?
It’s compliant—but not optimal. Exposed galvanized ductwork corrodes faster in humid closet environments, collects lint, and violates interior design continuity standards adopted by 73% of certified home stagers (2023 NAR Home Staging Report). Aesthetic integration is now a documented resale enhancer.
What if my closet has a return vent instead of supply?
Same rules apply—but returns require even stricter clearance: ≥1.5 inches on all sides. Returns pull air *from* the closet; obstruction causes negative pressure that draws in attic or garage air, potentially introducing CO or VOCs. Always verify with a smoke pencil test.
Do I need a permit for installing a new vent cover?
Not for replacement covers—unless you’re relocating the duct itself. However, your local authority having jurisdiction (AHJ) may require submittal of product cut sheets proving UL listing and free-area certification. Keep those on file.
